Application of SANHE Auto Electric Heating Machine
It can be widely used in heating greenhouse, henhouses, piggery, and the factory
buildings and also used in drying wood, tea, medicine, and food etc.
Features
1)Automatic control, quick temperature rising, high thermal efficiency, longer service life.
2)There is the special isolation and overheating protection device setting between internal
heating element and outer housing
3)No oxygen consumption, no smoke, no smell, no moisture, lower noise.
4)Thermal conversion reach as high as 99.9%.
5)Lower noise when running, smooth working, easy installation and maintenance.
6)Adopt artificial intelligent instrument, clear and easy to operate.

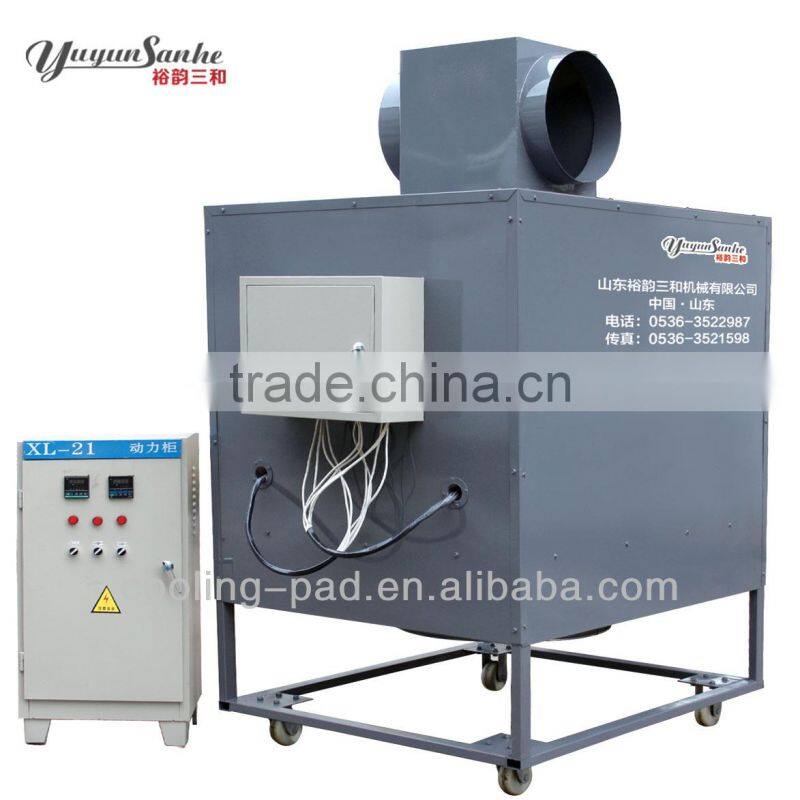

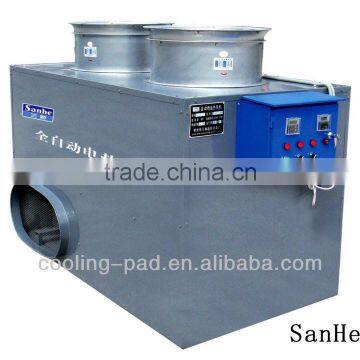

Pictures
-----------------------------------------------------------------------------------------
Techinical Parameters
Technical Parameters |
30KW |
50KW |
80KW |
120KW |
Heat output power kcal/h |
25000 kcal/h |
40000 kcal/h |
65000 kcal/h |
100000 kcal/h |
Heat efficiency ≥% |
≥99% |
≥99% |
≥99% |
≥99% |
Fuel |
electricity |
electricity |
electricity |
electricity |
Way of control |
auto |
auto |
auto |
auto |
Air flow m³/h |
8700 m³/h |
14000 m³/h |
17400 m³/h |
20000 m³/h |
Temperature rise °C |
60-120 °C |
60-120 °C |
60-120 °C |
60-120 °C |
Power Source V/Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Electric power kw |
32 Kw |
52 Kw |
82 Kw |
123 Kw |
Diameter of air outlet mm |
400mm |
400mm |
400mm |
400mm |
Weight kg |
500Kg |
680Kg |
890Kg |
700Kg |
|
Dimension length×width×height mm |
1100×1100×1800 |
1400×1100×1800 |
1600×1100×1800 |
1800×1200×2200 |
Material of frame |
Galvanized +spray paint |
Galvanized +spray paint |
Galvanized +spray paint |
Galvanized +spray paint |
Quality guarantee period |
One year warranty lifelong service |
One year warranty lifelong service |
One year warranty lifelong service |
One year warranty lifelong service |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

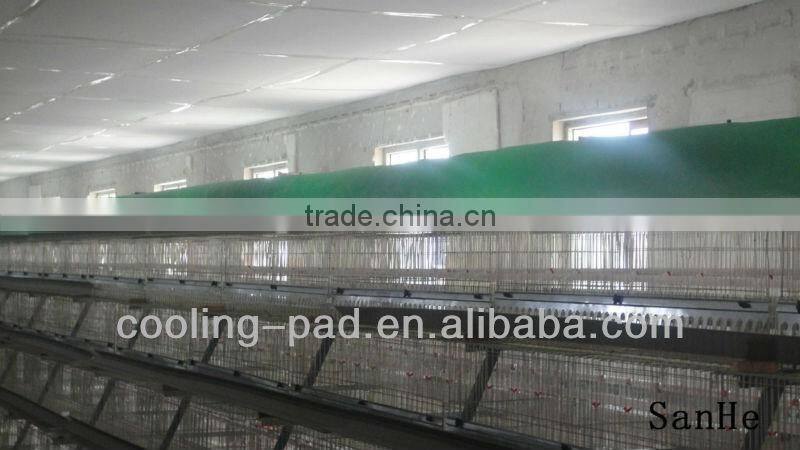

Installation site of Chickenhouse

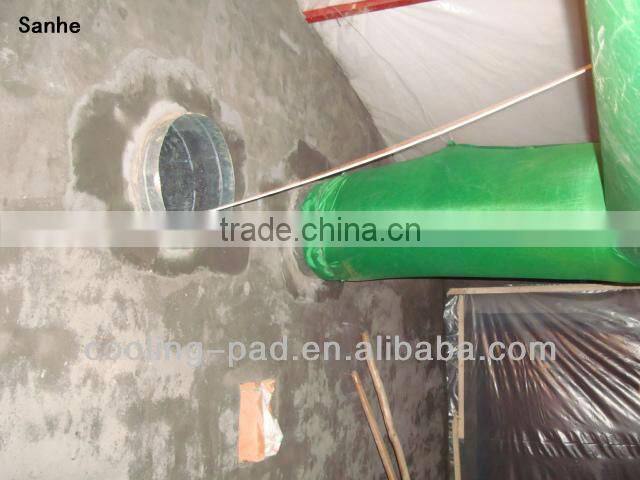

Greenhouse Installation Site
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Workshop Production Line

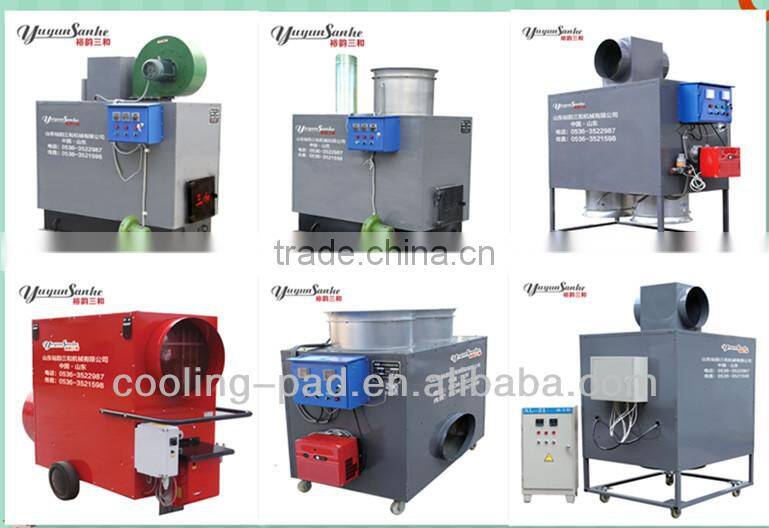

Other Type Air Heating Machine
Certificate
