Double Door Cone Fan New Product

Name: Double Door Cone Fan New Product
Brand: sanhe
Availability: InStock

FOB Price

US$ 50 - 300 / Set

5 Sets(Min. Order)

Port qingdao sea port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Blade Material	Stainless Steel
Mounting	Wall Fan	Place of Origin	Shandong, China
Brand Name	sanhe	Model Number	DJF(e) series1380
Power	1100	Voltage	380
Air Volume	51020	Speed	630 rpm
Certification	CE

Product Description

Specifications

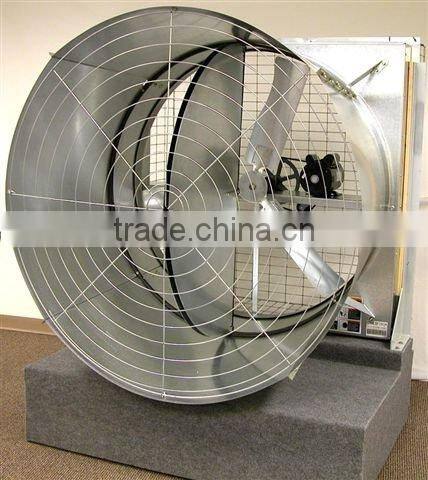

the fan adopts advanced frontward open system,butterfly type ,with two semicircle door
my email is virginia at wfsanhe

.this fan adopts advanced frontward open system,butterfly type,with two semicircle shutter doors,wind resistence is small,good air -tightness and high efficiency.

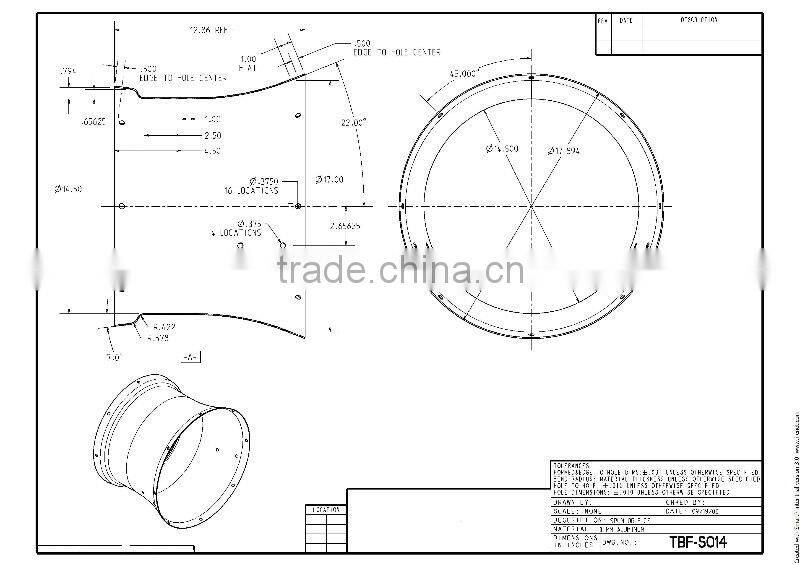

2.for the cone part ,adopt new design ,plug-type connection ,not need many bolts and nuts for tightening as before,intensity of labor is reduced,also improve aesthetic results of fan .

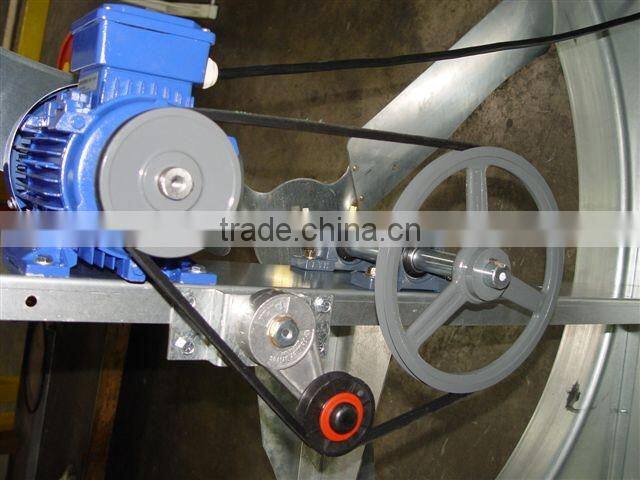

3.the belt tensioner device made of aluminum-magnesium alloy,non-deforming ,long service life.this device make the belt inside tight up,effective for avoiding the belt distortions in reverse direction ,so prolong the belt life time ,saving cost.

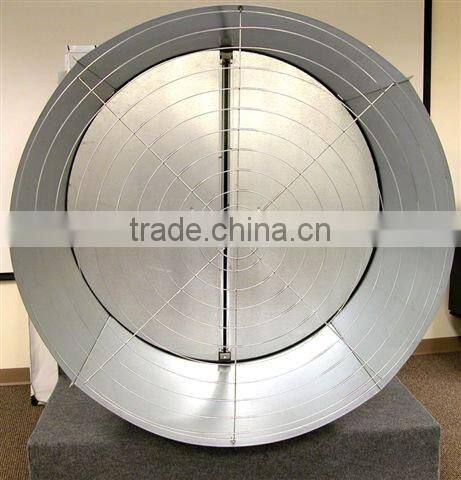

4.when the two semicircle shutter doors close ,the rubber sealing ring make good air -tightness.in different condition ,not run all the fan,the air could pass through the space of the stop fan,use this type fan,could avoid this problem.ensure air pass through the evaporative cooling pads or air inlet only,so that greatly improve the fan efficiency .(as compared with different type of same size fan,improve efficiency 15-20%)

5.the fan motor installed on top left corner,effective protection of the motor ,avoid wind resistance,and the motor panel connection is reasonable ,fixing fan frame more stronger.
