1.Processing of PVC coated wire mesh fence / fencing:
(PVC coated wire mesh fencepvc coated welded wire mesh fence)
a)PVC coated wire mesh fence panel process:
pvc coated wire mesh fence panel Production Line:Material--Straighten&Cut short machine--Welded machine--Galvanized bath---Bending machine--PVC- coated machine&Powder coated machine
Straighten&cut short the wire--welding--bending--galvanizing--parkerizing--powderpvc coating--packing
b)PVC coated wire mesh fence post process:
pvc coated wire mesh fence post Proction Line:Material--Cut short machine--Sandblasting machine--Galvanized bath---Parkerizing tank--powder coated machine
Cut short the tube--hole frilling--galvanizing--sandblasting--powder/pvc coating--rivet nuts installing-- cups installing & packing
2.PVC coated wire mesh fence specifications:
(PVC coated wire mesh fencepvc coated welded wire mesh fence)
a)PVC coated wire mesh fence panel specifications:
| Panel height | Panel Length | Wire Diameter | Mesh Size | Folds No. |
| 0.63m | 2.0m | Gal+PVC Painted | 50*200mm | 2 |
| 1.03m | 2.5m | 3.85mm/4.0mm | 55*200mm | 2 |
| 1.23m | 3.0m | 4.85mm/5.0mm | 50*150mm | 2 |
| 1.5m | 55*100mm | 3 | ||
| 1.53m | Gal+PVC Coated | 3 | ||
| 1.7m | 3.0mm/4.0mm | 3 | ||
| 1.73m | 4.0mm/5.0mm | 3 | ||
| 1.8m | 4 | |||
| 1.83m | 4 | |||
| 2.0m | 4 | |||
| 2.03m | 4 | |||
| 2.43m | 4 |

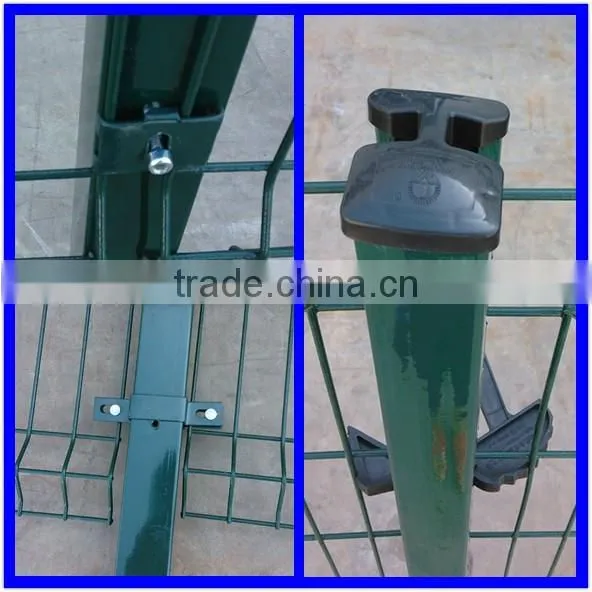

PVC coated wire mesh fence clips
Galvanized and PVC coating.
PVC Coating Colors:RAL 6005(Dark green);RAL 5005(Dark Blue);RAL 9010(White)
Corrosion resistant,age resistant,sunshine proof,weather proof,easy to transport and easy installed.
- Private properties and recreational sites
- Sports facilities, pitches, tennis courts, playgrounds
- Warehouses, logistics bases - military facilities and sites
- Housing estates and parking lots
- Industrial and commercial buildings
- Public places
Material:plastic and metal ones
They were provided by sets, with nuts and srews.

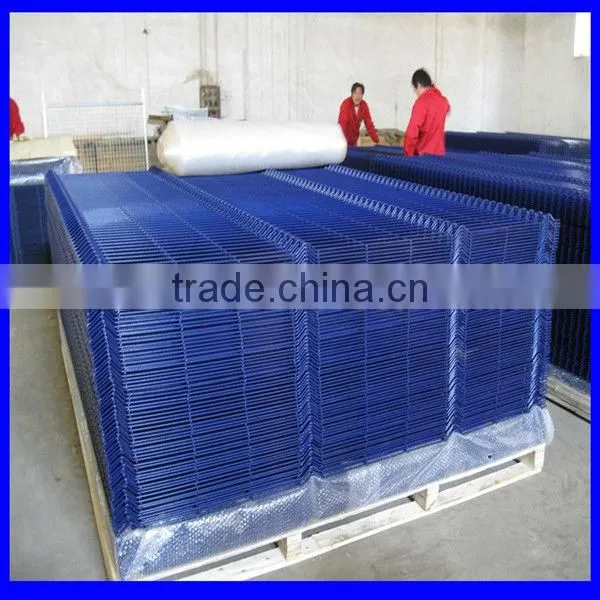

a)PVC coated wire mesh fence panel packaging:
1>it has rubber mat at the bottom of the pallet to avoid the pallet destroying the panels
2>it has 4 metal corners to keep the pallet more strong;
3>it has metal plate under the plastic bandage to reduce the apressure of fence panels
4>it has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.
1) The caps have been installed on the top of post, which reduce your labor cost and installing time;
2) Each post are packed by a long plastic bag avoiding damaged by friction;
3) All posts are packed by metal pallet for loading and unloading.
3D wire mesh fence
