358 anti-climb/anti-cut security fence

Specifications

358 security fence anti climb fence for prison
1.anti-cutting
2.anti-climbing
3.high security anti climb fence







                        Brief  instroducion





               Compay Type:Manufacturer                           Head office:Anping County,China



               Factory size:70,000sq.Meter                            nearest port:Tianjin,260km away



               Sales Amount:US $30,000,000 per year       lead time:20 days



              Main  Export Market:Austrilia,Europe,Japan,USA,South American,etc.



              Main products:Security fence,Barrier fence,Temporary fence,wire mesh fence,T-post and ect.







WORKSHOP

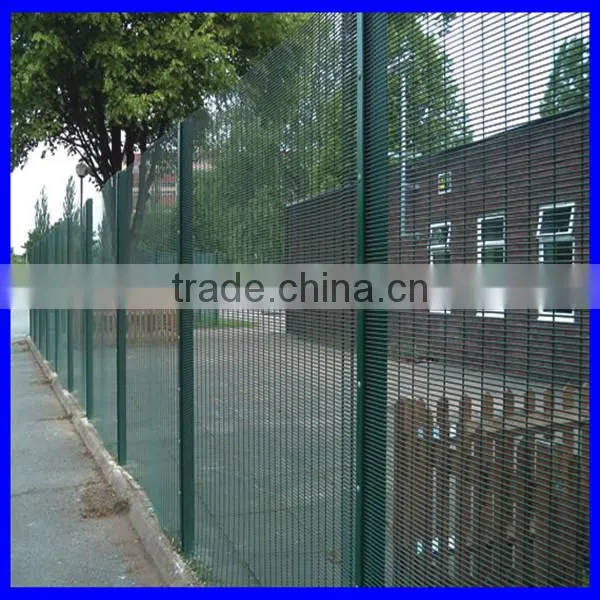

 358 ANTI-CLIMB FENCE FOR PRISON

Formidable

 An effective deterrent to intruder avaliable in  height up 3.6m-specially designed for high security applications.



Panel

Manufactured form hard drawn wire and electro-resistance welded at every intersection.

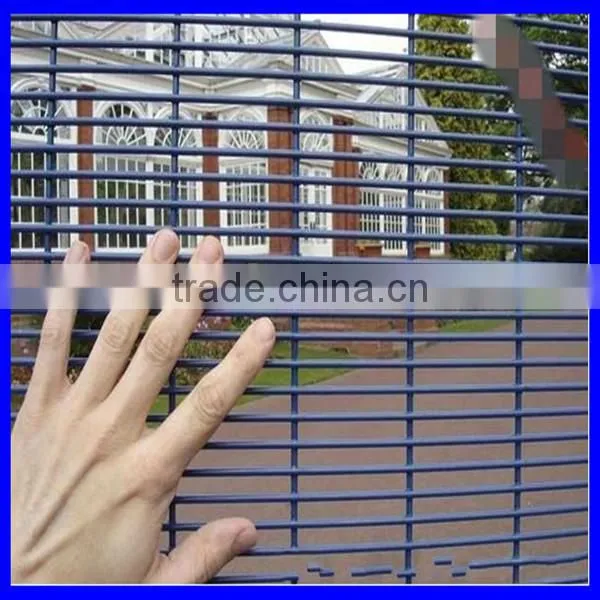

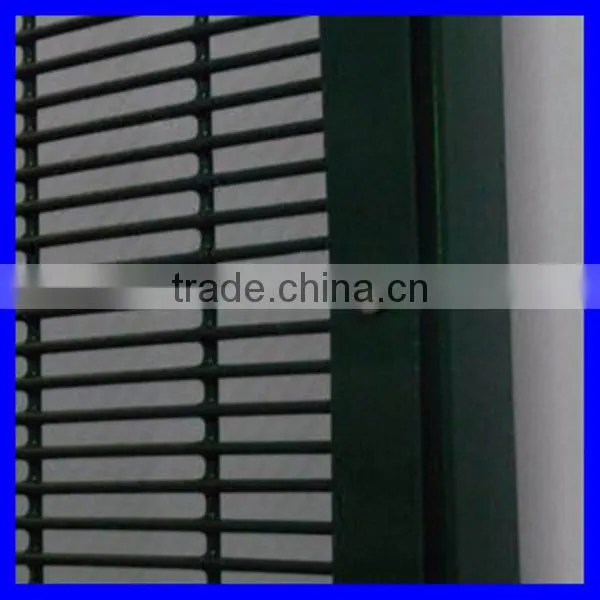

Mesh Pattern:76.2mm(3'')*12.7mm(0.5'')resistance welded at every intersection.

Horizontal Wire:4mm diameter at 12.7mm centres.

Vertical Wire :4mm diameter at 76.2mm centres.

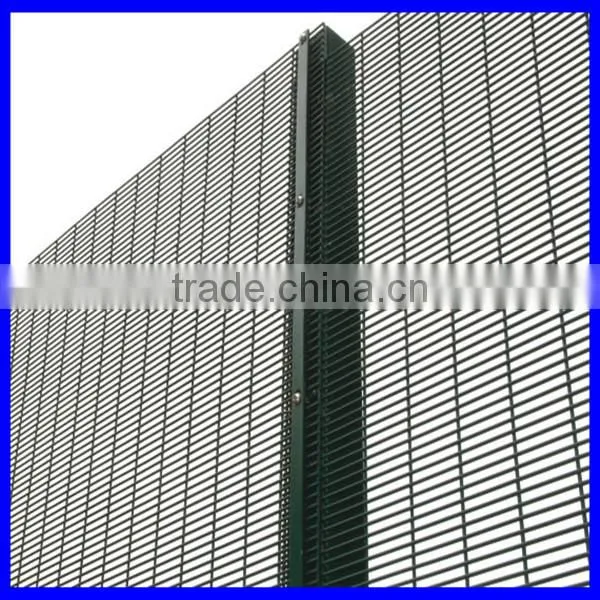

Presentation:Overtapped 75mm minimum at each post for securing with slotted clamp bars and M8 diameter bolts.

Weld Strength:

-75% of the minimum tensile strength of the wire.

-Tensile range 540-690N/M2





Application

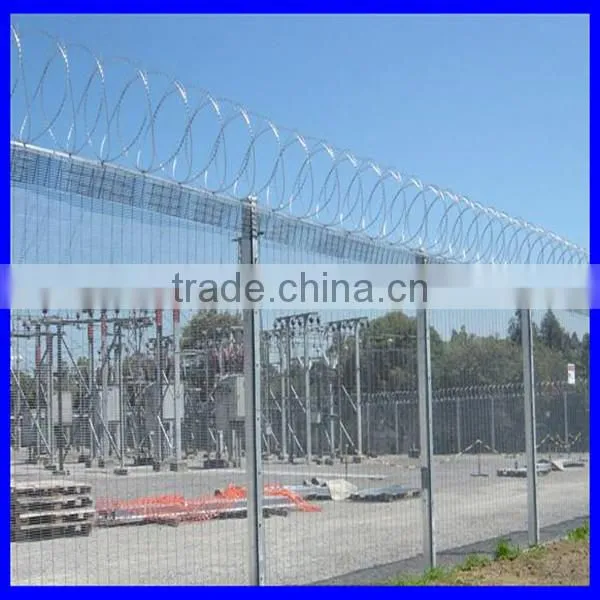

play ground, prison, airport, power system, shipping port, bedlam.

This product has good anti-aging, resistant corrosion character. It has a beautiful appearance. When use it as a protect fence, it also make our place more beautiful.

This product has the advantage of high security, high anti-climb etc .It is widely used in the prison, airport, military base and other need high security protection places.





SCREW:







358 mesh fence specifications introduce:



Master View 358	2.1m	2.4m	3.0m
Panel height	2134mm	2438mm	2997mm
Panel width	2515mm	2515mm	2515mm
Mesh size	12.7 x 76.2mm	12.7 x 76.2mm	12.7 x 76.2mm
Horizontal wire	4mm	4mm	4mm
Vertical wire	4mm	4mm	4mm
Panel weight	50kg	57kg	70kg
Posts	60 x 90 x 4 mm	60 x 90 x 4 mm	80 x 80 x 4 mm
Post length	2.8m	3.1m	4.0m
Clamp bar	40 x 6 m slotted	40 x 6 m slotted	40 x 6 m slotted
Fixings	8 security nuts
No. of fixings	8	9
