1.Gabion Box Materials
1.Galvanized steel wire :low carbon steel wire
2.Zinc-5% aluminum-mixed mischmetal alloy steel wire ,a new-type material
3.Galvanized steel wire ,PVC or PE coating
2.Gabion Basket
Gabion Baskets (Boxes) are structures which shall be made of hexagonal Galvanized / PVC / Alu-Zinc coateddouble-twisted mild steel wire mesh.
3.Gabion Box Products

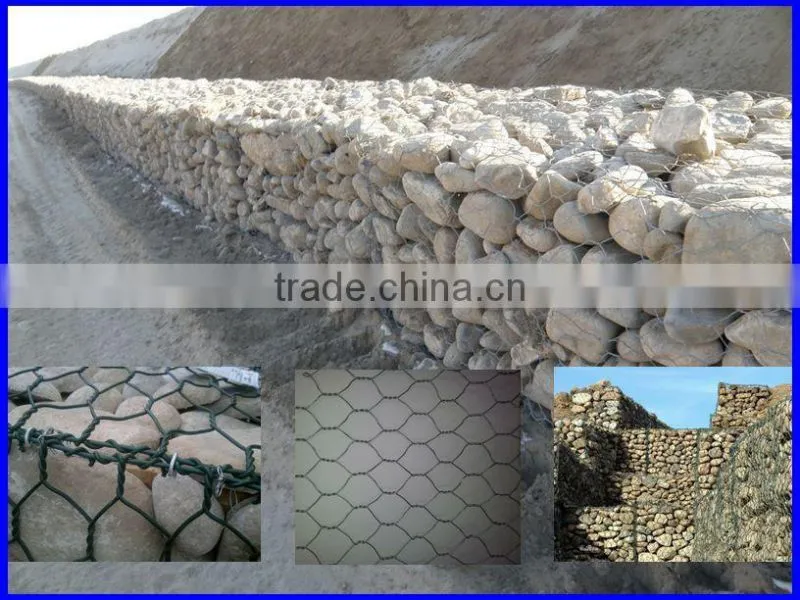

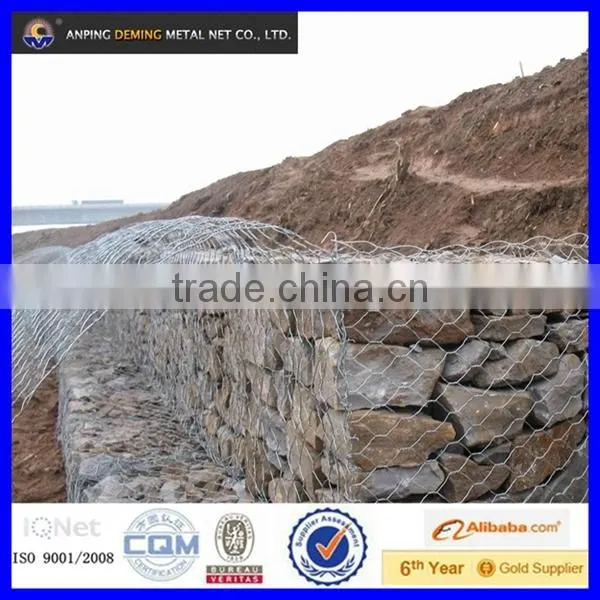

A double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall channel linings, revetments, and weirs for erosion control projects
4.Gabion Box Process
wire drawing---galvanized--- galvanized after weaving or galvanized before weaving.
5.Gabion Box Packing
50-100 gabion wire mesh /per bundle,wrapped with 2 to steel strips
6:Gabion Box Payment term
30% T/T in advance as deposit and 70% balance upon delivery.
7:Gabion Box Delivery time
20 days after receive the deposit
8:Gabion Box Features
1.It is very economical . You just need to put stone in the mesh and then seal it .
2.It is flexible ,corrosion resistant and can stand up to extreme weather.
3.Simple construction,requiring no special technique.
4.The silt between the wire mesh and stone contributes to plant growth.this makes the gabion wire mesh harmonious with the surrounding natural environment .
5.The gabion wire mesh is folding and can be assembled site,which saves on transport cost.
9:Gabion Box Application
1.Gabion wire mesh is used for slope and foundation pit support ,
2.Prevention or rock breaking ,slope planting ,
3.Water and soil protection,
4.High mesh fence,protection of dam and seawall against erosion ,etc.
Gabion Box Details Specification
|
Opening (mm) |
Wire Diameter (mm) |
Wire Diameter(PVC Coated) Inner/outside(mm) |
Strands |
| 60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
| Gabion Size(m) | Mesh Model | |||||
| 8x10 | 6x8 | |||||
| Length | Width | Height | Gal. or PVC coated | Gal. or PVC coated | ||
| Mesh wire diameter | Gal. weight | Mesh wire diameter | Gal. weight | |||
| 2m | 1m | 1m | 2.7mm | >245g/m2 | 2.0mm | >215g/m2 |
| 3m | 1m | 1m | Selvedge wire diameter | Gal. weight | Selvedge wire diameter | Gal. weight |
| 4m | 1m | 1m | 3.4mm | >265g/m2 | 2.7mm | >245g/m2 |
| 6m | 1m | 1m | Lacing wire 2.7mm | Lacing wire 2.0mm | ||
