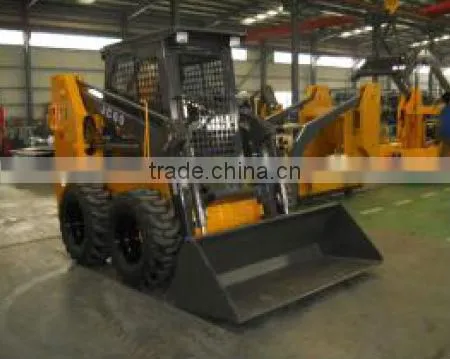

Help CenterStandard CE Skid Loader
Related Products
Specifications
Rated operating capacity(kg) 850Tipping load(kg) 1700
Bucket capacity(m3) 0.4-0.5
Operationg weight(kg) 3000
Description of our differents styles of Skid loader

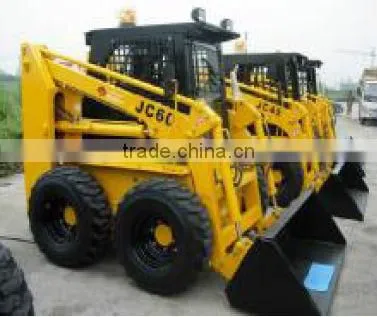

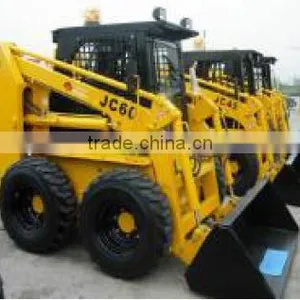

JC60
Weight : 3200kgs
Loading Info: 4sets/40Hq
Specifications
Rated operating capacity(kg) 850
Tipping load(kg) 1700
Bucket capacity(m3) 0.4-0.5
Operationg weight(kg) 3000
Max. travel speed(km/h) 12
Hydraulic pump flow(L/min) 75
Fuel tank capacity(L) 80
Tires 12-16.5
Overall dimensions(mm) 3440×1820×2050
Dimensions
Height at maximumextension(mm) 3690
Height to bucket hinge pin(mm) 2920
Width with bucket(mm) 1820
Track width(mm) 1500
Wheelbase(mm) 991
Ground clearance(mm) 205
Dump angle 40°
Dumping height(mm) 2330
Maximumreach(mm) 710
Engine
Maker/Model 498
Net power 60hp/2500rpm
Type4 Cylinder in-line, Water cooled, 4 stroke,
Diesel engine
Displacement(L) 2.8
Standard
Open-type operator
Hand control system(Mechanical type)
Standard bucket
Auxiliary hydraulic couplers
Optional
Enclosed operator cab with A/C
Cab fitted with a heater as standard
Hydraulic joystick controls
Attachments:
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,
combinition bucket,Mower,Asphalt cutter,and More
JC60 H
Weight : 3000kgs
Loading Info: 4sets/40Hq
Specifications
Rated operating capacity(kg) 850
Tipping load(kg) 1700
Bucket capacity(m3) 0.4-0.5
Operationg weight(kg) 3000
Max. travel speed(km/h) 12
Hydraulic pump flow(L/min) 75
Fuel tank capacity(L) 60
Tires 12-16-15
Overall dimensions(mm) 3840×1820×2050
Dimensions
Height at maximum extension(mm) 3690
Height to bucket hinge pin(mm) 2920
Width with bucket(mm) 1820
Track width(mm) 1500
Wheelbase(mm) 991
Ground clearance(mm) 205
Dump angle 40°
Dumping height(mm) 2330
Maximum reach(mm) 710
Engine
Maker/Model 498
Net power 60hp/2500rpm
Type
4 Cylinder in-line, Water cooled, 4 stroke,
Diesel engine
Displacement(L) 2.8
Standard
Cab fitted with a heater as standard
Hydraulic joystick controls
Standard bucket
Auxiliary hydraulic couplers
Optional
Attachments:
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,
Combinition bucket,Mower,Asphalt cutter,and More
JC65 G
Weight : 3200kgs
Loading Info: 4sets/40Hq
Specifications
Rated operating capacity(kg) 950
Tipping load(kg) 1900
Bucket capacity(m3) 0.4-0.5
Operationg weight(kg) 3400
Max. travel speed(km/h) 12
Fuel tank capacity(L) 80
Tires 12-16.5 NHS
Overall dimensions(mm) 3490*1820*2150
Dimensions
Height at maximum extension(mm) 4070
Height to bucket hinge pin(mm) 3100
Width with bucket(mm) 1880
Track width(mm) 1500
Wheelbase(mm) 1085
Ground clearance(mm) 200
Dump angle 40°
Dumping height(mm) 2450
Maximum reach(mm) 710
Engine
Maker/Model DACHAI DEUTZ 498T
Net power 55kw/2500rpm
Type
4 Cylinder in-line, Water cooled, 4 stroke,
Diesel engine
Displacement(L) 3.2
Standard
Enclosed operator cab
Hydraulic joystick controls
Standard bucket
Auxiliary hydraulic couplers
Optional
Cab fitted with a heater as standard
A/C
Attachments:
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,
Combinition bucket,Mower,Asphalt cutter,and More
