Specifications
Easy to useDurable frame and firm welded
Steel frame with 65Mn disc blades

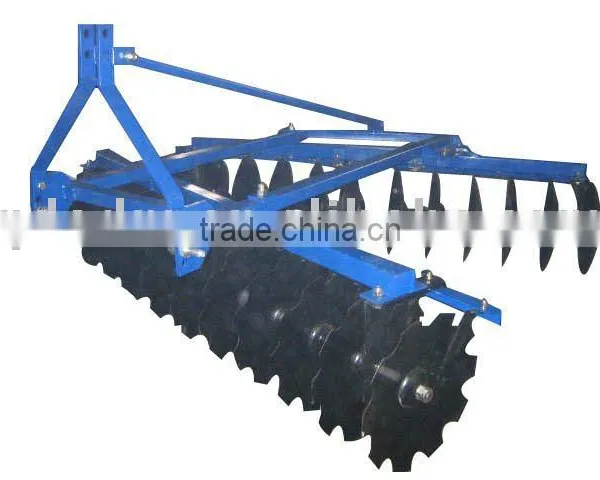

Mounted Disc Harrow | |||||
Item No. |
1BQX-1.3 |
1BQX-1.5 |
1BQX-1.7 |
1BQX-1.9 |
1BQX-2.2 |
Name: |
14 discs mounted ligh duty |
16 discs mounted ligh duty |
18 discs mounted ligh duty |
20discs mounted ligh duty |
24 discs mounted ligh duty |
Match Power hp |
1518 |
2530 |
3035 |
3040 |
5560 |
Overall sizemm |
1590X1440X830 |
1905x1550x1118 |
1985x1750x1118 |
2325x2100x1278 |
2325x2100x1278 |
Packing sizemm |
1550X560X350 |
1700x720x400 |
1850x720x400 |
2200x800x400 |
2500x1000x600 |
Whole weightkg |
220 |
240 |
530 |
290 |
290 |
|
Basic Datas & Equipments |
Working width1.3m, Max working depth100mm, Disc diameter: 460mm,notched Scraper Plate: 14pcs Linkage: Type I three point mounted |
Working width1.5m, Max working depth140mm, Disc diameter: 460mm,notched Scraper Plate: 16pcs Linkage: Type I three point mounted |
Working width1.9m, Max working depth140mm, Disc diameter: 460mm,notched Scraper Plate: 18pcs Linkage: Type I three point mounted |
Working width2.0m, Max working depth140mm, Disc diameter: 460mm,notched Scraper Plate: 20pcs Linkage: Type I three point mounted |
Working width2.2m, Max working depth140mm, Disc diameter: 460mm,notched Scraper Plate: 24pcs Linkage: Type I three point mounted |
