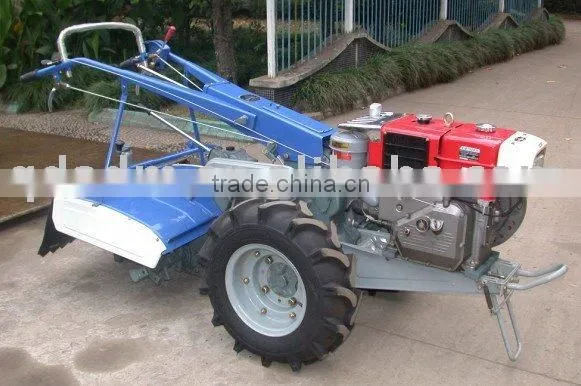

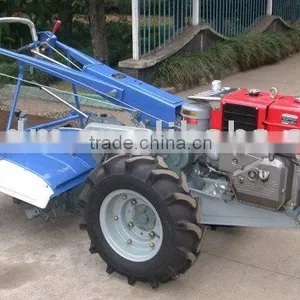

Walking Tractor

Name: Walking Tractor
Brand: China
Price: Negotiable

FOB Price

Negotiable / Set

24 Sets(Min.Order)

Product Details

11.Sall power, T-12L, T-15L,T-81L
2.Can used for Ploughing, rototilling, harrowing, harvesting, drilling,
transportation.

MAIN TECHNICAL SPECIFICATINS
Model of Power Tiller		Unit	15L
Structure	without rotavator	Kg	360
weight	with rotavator		465
Working Weight (with rotavator)		kg	505
Turning speed of rototilling shaft		rpm	188
Overall dimensions (L×W×H)		mm	2680×960×1250
Number of blades		PCS	18
Rototilling width		mm	600
Type of tractor			Single axle,dual-purpose for both tractor &drive
Traveling	Forword	km/h	1.4, 2.5, 4.1, 5.3, 9.4, 15.3
speed	Reverse		1.1, 3.8
Tyre Size			6.00-12
Wheel track		mm	800,740,640,580(normally use 800)
Min.ground clearance		mm	185
Min.turning radius		m	0.9(with no rotavator)
Model ofengine			S1100A2N
Type of engine			Horizontal 4-stroke
Bore×stroke		mm	100×115
Total displacement		L	0.903
Compression ratio			19.5:1
Turing speed of crankshaft		rpm	2000
1-hour rated output		kW/hp	10.50/14.30
12-hour rated output		kW/hp	9.8/13.33
Specific fuel consumption		g/kW.h	257
Specific lube oil consumption		g/kW.h	≤2.04
Cooling mode			Condenser(Radiator)
