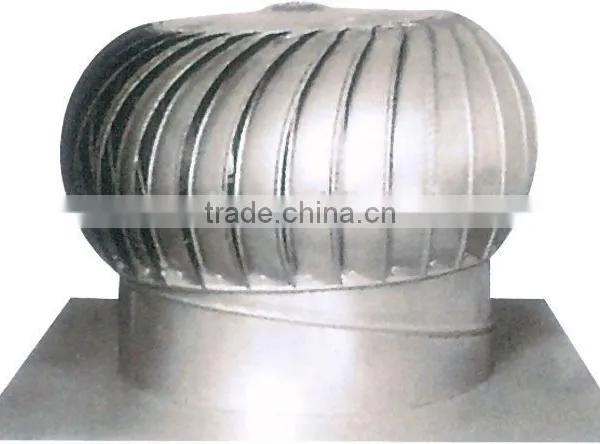

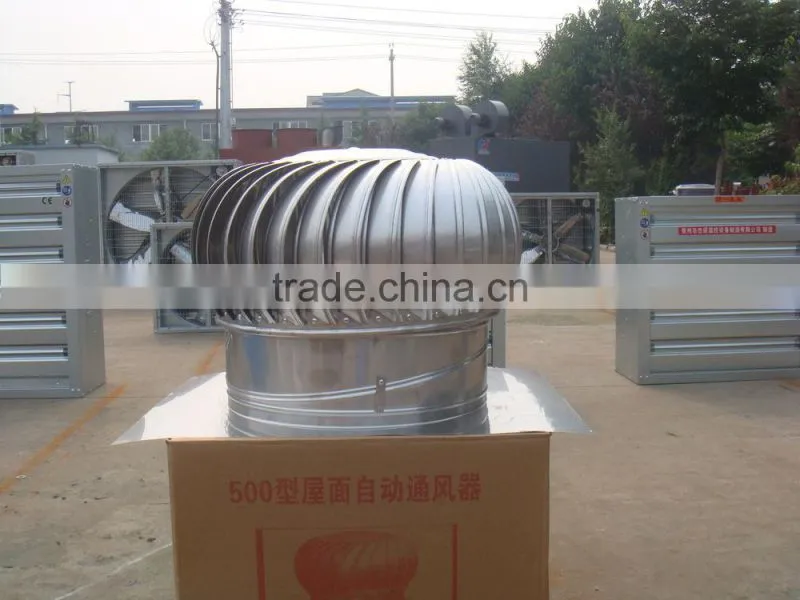

Stainless Steel no Power Roof Ventilation Fan

Name: Stainless Steel no Power Roof Ventilation Fan
Brand: JIENUO
SKU: 138073085
Availability: InStock

US$ 50 - 80 MOQ: 10 Pieces

Key Specifications

Electric Current Type:

Other, NO MOTOR

Blade Material:

Stainless Steel

Mounting:

Roof Fan

Qingzhou Aonuodi Temperature Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type Other, NO MOTOR

Blade Material Stainless Steel

Mounting Roof Fan

Brand Name JIENUO

Model Number JWF-500

Power no

Voltage no

Certification CE

After-sales Service Provided No overseas service provided

Product Description

Advantages

1. Jienuo roof fan is efficient, explosion-proof, uses no electric energy, and causes no noise and spark.
2. Dust-proof: the wind turbine exhaust fan continuously operates 24 hours a day, This lowers the possibility of dust adhesion and makes the fan easy to clean.
3. Light weight: The weight of roof ventilating fan along with the base does not exceed 20kg, so the users need not take into consideration when designing steel structures.
4. Daylight: The interspaces between blades allows natural light to provide effective internal lighting during the day, thus reducing the electricity cost by 5-10%.
5. Long lasting: Jienuo roof fan life time is over 15 years.

Model	Throat opening caliber(mm)	Outside diameter of turbine(mm)	Turbine height(mm)	Inlet air speed(m/s)	Air volume(m/h)	Weight (kg)	Material
JFW-500	500	630	350	3.4	2520	8.5	Stainless steel
JFW-600	600	730	420	3.4	3600	11	Stainless steel
