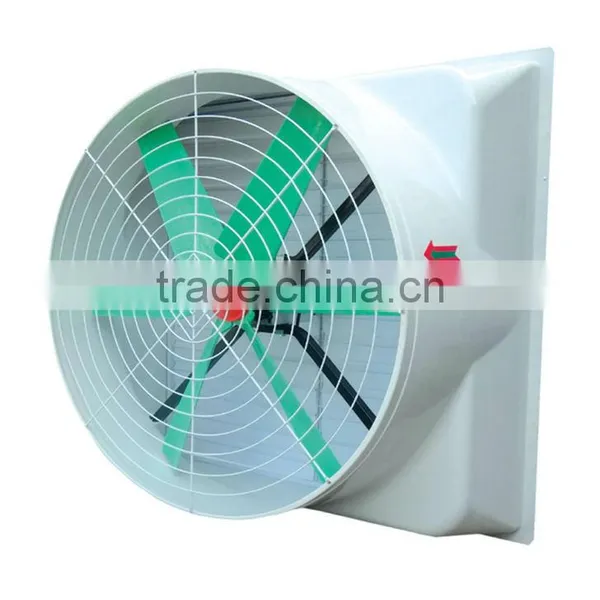

220v ventilation fan for swine farm ventilation and cooling
- 56000 Piece / Pieces per Month
- Xiamen Port
- T/T
Product Details
Electric Current Type: | AC | Blade Material: | Other, Fiberglass | Mounting: | Wall Fan |
Place of Origin: | Fujian, China | Brand Name: | OFS | Model Number: | OFS-146SL |
Power: | 0.75kw | Voltage: | 380v/50Hz 3-phase | Air Volume: | 45000m3/h |
Speed: | 750m/m | Certification: | CE |
Product Description
Specifications
1.220v ventilation fan for swine farm ventilation and cooling2.20years lifetime,CE&CCC
3.Low maintenance fiberglass
Applications:
1. Industrial fields: textile, socks/clothes making, glass, molding, rubber, coating, silk-screen printing, toy, electronics, home appliances, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.
2. Civil fields: net bars, stores, supermarkets, mess hall, food markets, waiting-rooms and recreation places and other occasions with air-conditioning.
3. Agricultural &horticulture fields: large farms, greenhouse and livestock farms, etc.
General Information :
1.Availbale in 58" & 42" &30 "sizes high quality exhaust fan
2.The new 58” high performance SMC cone fan are desiged for use in industrial,poulty,dairy,swine and greenhouse applicantion.
3.The cone fan eill wirk equally well in either tunnel or cross ventillaed buildings .
4.Super strong heavy duty center post design
5.The cone fan features a traditional inside shutter design
6.Special order motors available-call for detail
Features:
1.The patented design provides excellent performance without a cone.
2.Thick and corrosion resistance SMC housing with limited lifetime warranty .
3.Rust-free,corrosion-free,smc housing with onterior glossy for high output performance and low maintenance
4.Every feature of cone fan line is designed to maximize performance and durability 6 blanced SMC paddle blades
5.Direct drive fan requiring no belts,no bearings to grease with high efficiency with no drive loss
6.Totally enclosed,maintenance free ,high efficiency direct drive motors
7.Uniques shutter design lower resistance with preventing back drafts
8.Unique motor mount design allows you to quickly and easily remove all interior fan conmponts from inside of the building
9.Self draining ,sloped housing is quick and easy to clean reducing maintenance costs
10.Pvc coated outside guard
Model No. | Impeller Range | Impeller Material | Rotating Speed | Air Flow | Noise Level | Power | Voltage | Prod. Size |
OFS-146SS | 1220mm | 3-wing FRP blades | 560rpm | 50000m3/h | ≤68db | 0.75kw | 380v | 146*146*58cm |
OFS-146SL | 1220mm | 6 SMC Fiberglass Blades | 460rpm | 45000m3/h | ≤68db | 0.75kw | 380v | 146*146*58cm |
OFS-146SQ | 1220mm | 7-wing Nylon blades | 460rpm | 45000m3/h | ≤65db | 0.75kw | 380v | 146*146*58cm |
OFS-106SL | 900MM | 6 SMC Fiberglass Blades | 560RPM | 20000m3/h | ≤65db | 0.55KW | 380V | 106*106*55CM |
OFS-106SQ | 900MM | 7-wing Nylon blades | 560/720rpm | 20000m3/h | ≤62db | 0.55kw | 380v | 106*106*55CM |
