Specifications
1. CE&CCC2. Water air cooler eco-friendly
3.Cool 100-150m2
4.Create a comfortable environment

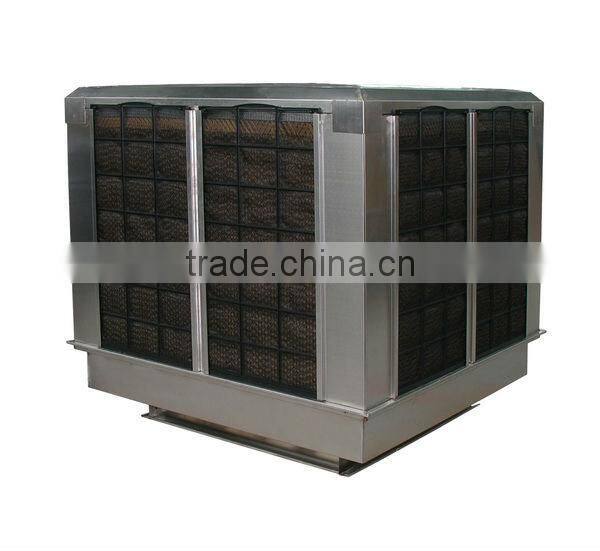

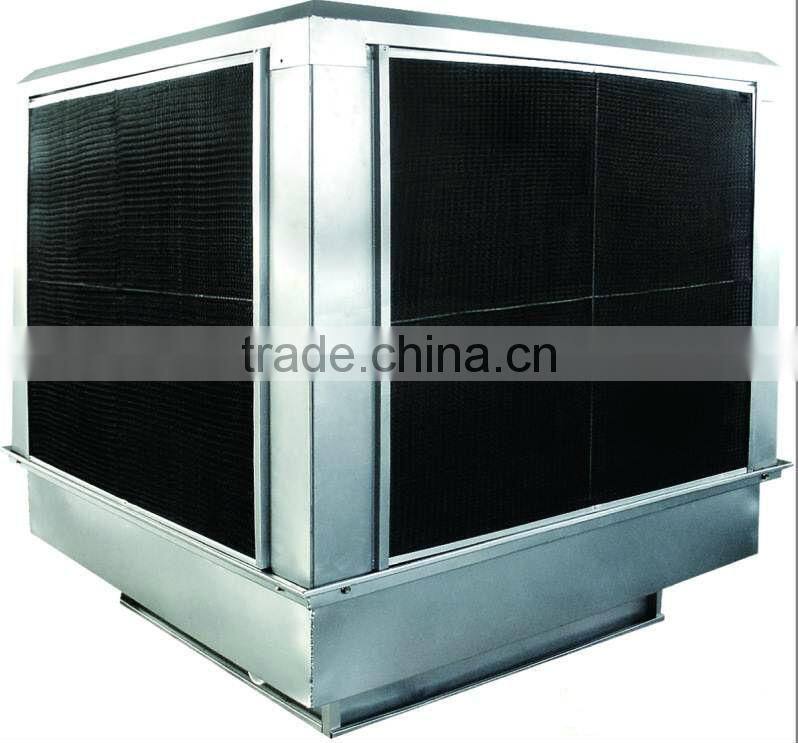

This is the first wall or roof mount type commercial evaporative air cooler from S.O.Ltd. Capable of moving up to 18000 cubic metres per hour of air using only 5 Amps @ 240volts makes these units very economic to cool large areas. Four large 100mm cooling pads with over 85% saturation and insect screens provide an efficient cooling media, along with our computer designed axial fan technology for quieter durable performance these units are a must have for most commercial work stations.
Case studies have shown that as the temperature goes up productivity in the work place drops. In schools, churches, factories, workshops or any large assemblies of people inattentiveness increases.
Now there is an economical solution to improve comfort and performance in these environs. OFS-180A/B will provide effective relief cooling over areas of 100 – 150sq/m or 1000 – 1600sq/ft
Features
- Low energy consumption
- Easy to use control panel
- 4 x 100mm high efficiency cooling pads
- High airflow down draft
- Computer designed axial fan blades for silent performance
- Programmable self cleaning
- UV stable Polypropylene plastic housing
- Choice of up or down discharge models.
| Air Flow Rate | 18,000 m3/hr-3000m3/h |
| Power Consumption | 1.25 kW |
| Voltage | 220 - 240 Volts / 60Hz |
| Fan Type | Axial |
| Draft Type | Up draft Down draft |
| Water Tank Capacity | 25 ltr. |
| Water Consumption | 10 - 15 L/hr. |
| Dimensions (WxLxH) | 1100 x 1100 x 1000 mm |
| Net Weight | 65 kgs. |
| Gross Weight (wet) | 90 kgs |
| Current | 5 Amps |
| Noise Level | < 78 db |
| Effective Cooling Area | 100-150 m2 / 1050-1600 sq/ft |
Features :
1. Low installation ,running and maintenance cost
2. Remote control for uncomplicated setting and possibility to run units in parallel
3. Light performance axial fan for ducting options
4. Suitable for a wide range of applications
5. Simple and flexible installation
6. Encironmentally friendly
Theoretical principle and how it works :
The evaporative coolers use OFS evaporative cooling pads as media. A system of water distribution and a pump keep the pad continuously wet ,Inside the machine is a large axial fan which sucks the air from the outside through the pad. When the air goes through the pad which is saturated the air gets cooler
Model No. |
Max Airflow |
Voltage |
Power |
Airflow Style |
Water Consumption |
Prod. Size220m2 |
Air orifice Size |
Noise Level |
Effective Area |
OFS-108A/B |
18000m3/h |
380v |
1.1kw |
Axis-flow |
25L |
106*106*95cm |
460*670mm |
<65db |
80-120m2 |
OFS-250 |
25000m3/h |
380v |
0.75kw |
Axis-flow |
25L |
106*106*95cm |
460*670mm |
<68db |
100-150m2 |
