Specifications
Hesco barrier:wire diameter 3mm-5mm
spring 3mm-5mm
mesh 76.2*76.2mm
Packing:5-10 units/pallet
Hesco Barrier/Hesco defense wall/Hesco blast wall

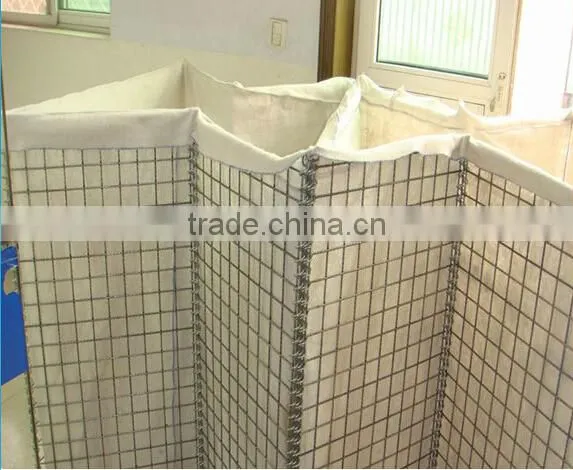

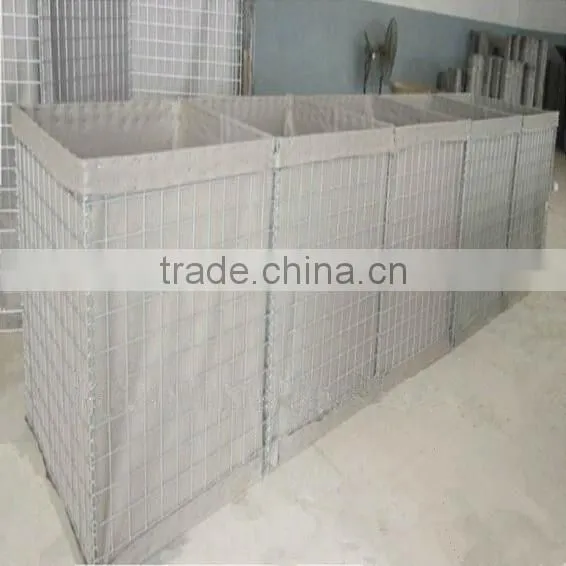

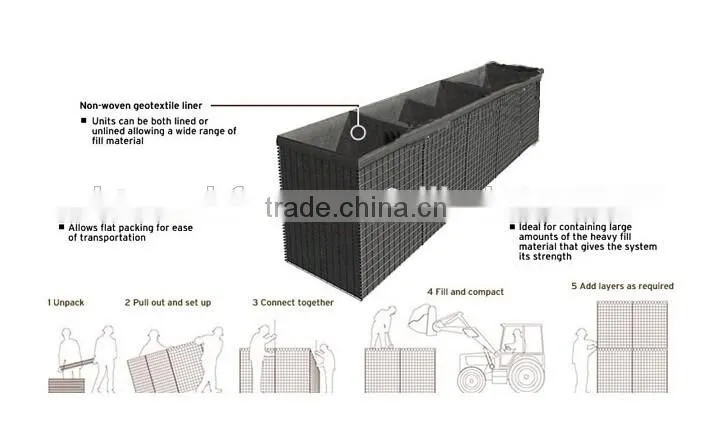

1.HESCO barrier/Hesco bastion/Hesco concertainer is a prefabricated, multi-cellular
system, made of zinc coated steel welded mesh and lined with non-woven geotextile.
Units can be extended and joined using the provided joining pins.It is easy installed
with using minimal manpower and commonly available equipment.After extended,it is

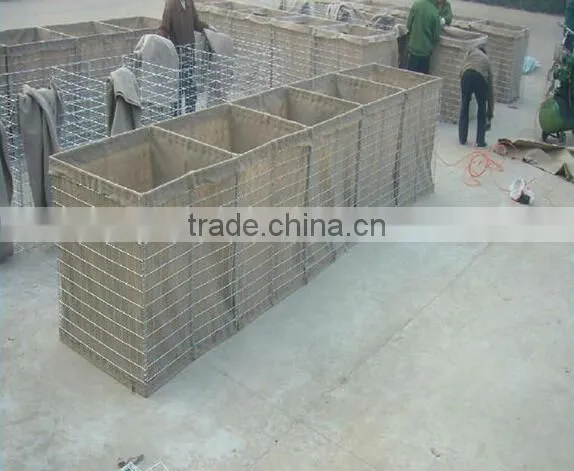

filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely use in
military to protect safety.
2.Hesco barrier :also named as Hesco bastion, Hesco defense wall, Hesco blast wall, and cage, welded gabion box, defense blast wall for military use, wire mesh gabion box, stone cage.

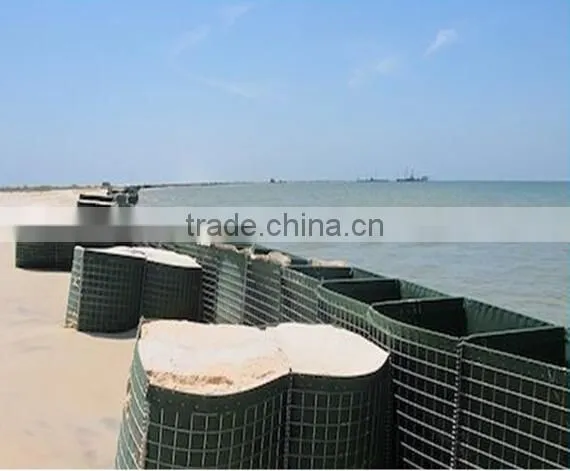

3.Structures and Characters:The Hesco barrier is a kind of modern gabion for Military fortification and Flood control. It is
made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells joint
together.

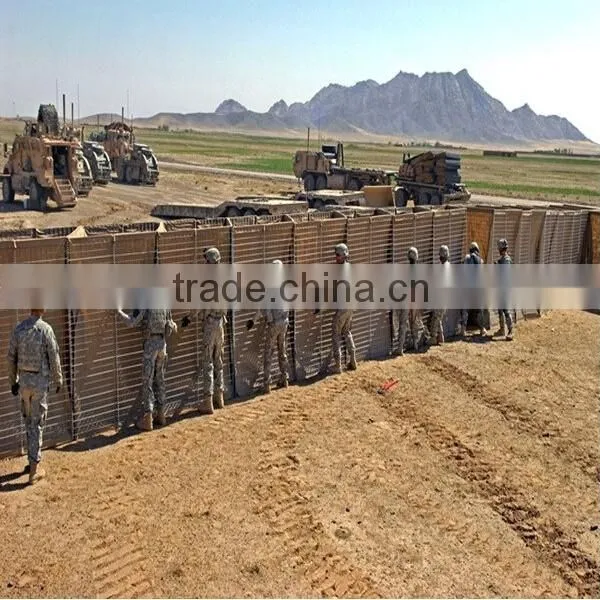

4.HESCO’s range of products is today established as a key component in military hardware and a benchmark in force protection throughout the world. From a simple HESCO barrier to more complex base infrastructure, HESCO products are used extensively in the protection of personnel, vehicles, equipment and facilities in military, peacekeeping, humanitarian and civilian operations.
Material:Low-carbon steel wire
Wire Diameter:5.0mm
Spring Diameter:4.0mm
Mesh Hole:76.2mm×76.2mm,50mm×50mm,75mm×75mm,100mm×100mm
Panel Size:2.21×2.13m,1.37×1.06m,0.61×0.61m,1.37×1.22m
Geotextile:in heavy duty non-woven polypropylene.
Finish:Hot Dipped Galvanized after welding,Galfan Coated after welding

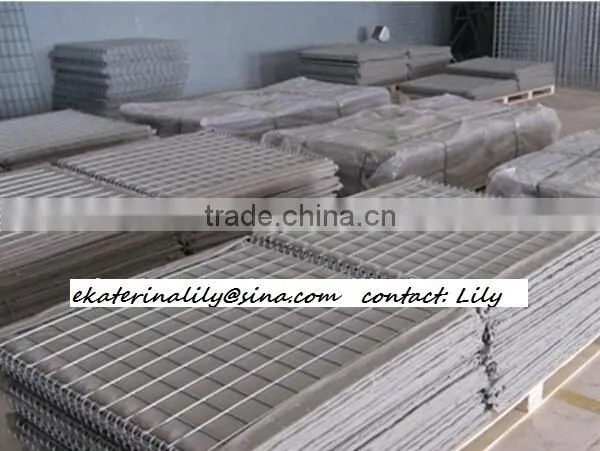

Packing: 5-10 units on the pallet

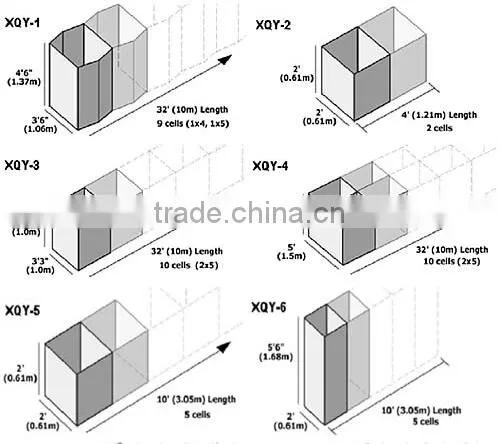

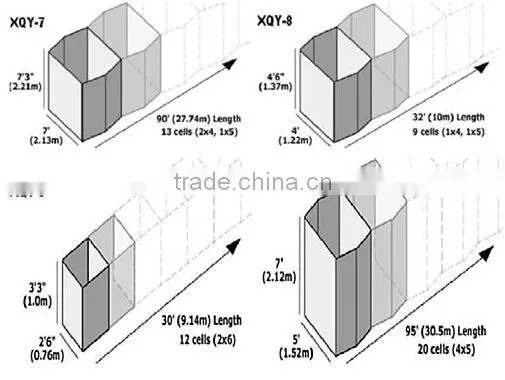

Specification:
Unit |
Height |
Width |
Length |
|
Mil 10B Mil 10G |
7’ (2.12m) |
5’ (1.52m) |
95’ (03.5m) |
|
Mil 9B Mil 9G |
3’ 3” (1.0m) |
2’ 6” (0.76m) |
30’ (9.14m) |
|
Mil 8B Mil 8G |
4’ 6” (1.37m) |
2’ (1.22m) |
32’ (10m) |
|
Mil 7B Mil 7G |
7’ 3” (2.21m) |
7’ (2.13m) |
90’ (27.74m) |
|
Mil 6B Mil 6G |
5’ 6” (1.68m) |
2’ (0.61m) |
10’ (3.05m) |
|
Mil 5B Mil 5G |
2’ (0.61m) |
2’ (0.61m) |
10’ (13.05m) |
|
Mil 4B Mil 4G |
2’ (0.61m) |
5’ (1.5m) |
32’ (10m) |
|
Mil 3B Mil 3G |
3’ 3” (1.0m) |
3’ 3” (1.0m) |
32’ (10m) |
|
Mil 2B Mil 2G |
2’ (0.61m) |
2’ (0.61m) |
4’ (1.21m) |
|
Mil 1B Mil 1G |
4’ 6” (1.37m) |
3’ 6” (1.06m) |
32’ (10m) |
Products pictures:
