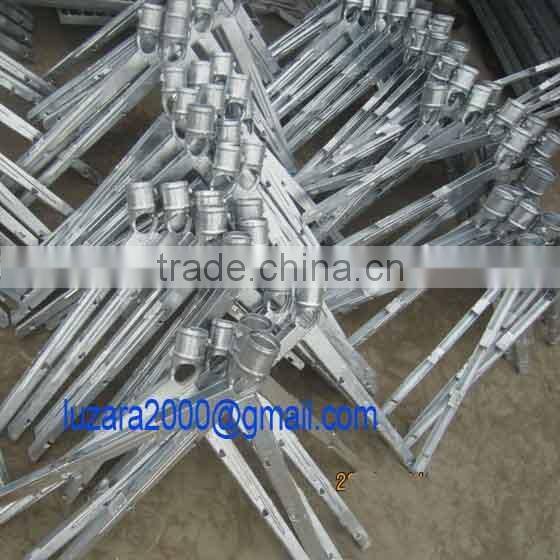

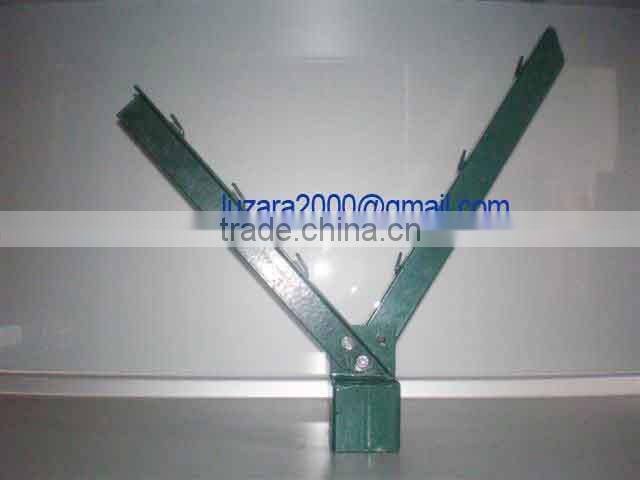

Y Fence Post Extension Arm Barbed Wire V Arm

Specifications

Barbed Wire V Arm
For chain link fence or welded fence top security
V arm material:Metal
Thickness:1.5mm-3.0mm
Degree:45

Barb wire extension V arm is one of the most popular fence fittings.

Material: pressed-steel

Surface treatment: hot dipped galvanized up ,PVC-coated or Powder-coating

Wall thickness: 1.5, 1.8, 1.9, 2.0, 2.5mm

Arm length: 355mm, 420mm, 500mm, 600mm

Type 1. barb wire arms 45°--one piece line arm--3 strands

Description	Part No.	Per Sack	Weight
1-5/8"x1-5/8"	013107	25	1.65lb
1-7/8"x1-5/8"	013108	25	1.70lb
2-3/8"x1-5/8"	013109	25	1.80lb
1-7/8"x1-5/8"	013105	25	1.82lb
2-3/8"x1-5/8"	013106	25	1.90lb



Type 2. barb wire V arm---two piece line arm--6 strands

Description	Part No.	Per Sack	Weight
1-7/8"x1-5/8"	013121	15	2.75lb
2-3/8"x1-5/8"	013122	15	3.00lb

Haotian's Galvanized Barb Wire Extension Arms

 Barbed Wire or Razor wire Extension brackets can be added to panels by inserting into the panels side posts.

Barbed wire arms surface finish:hot-dipped galvanized ,pvc-coated or powder-coating.

We company supply various fencing fittings, including barb wire arm, post cap, sleeve, tension band, brace band, wire strainer, short windiong bracket,  turn buckle, rain end, T clamp, truss rod, gate corner clamp, and so on

Application: used for chain link fence and gate linking and fastening

Characteristics:  firm structure, good steel property, high rust resistance, durable
