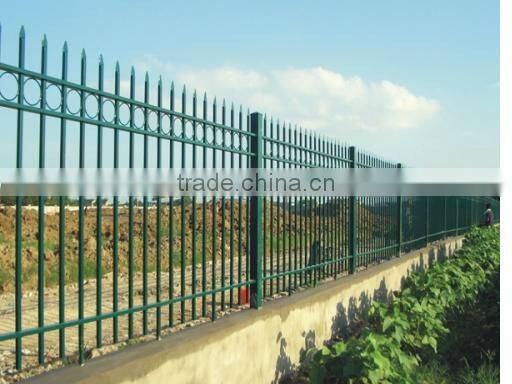

Help CenterWhite Wrought Iron Guardrail (factory)
Related Products
-
Galvanized and Pvc Coated Iron Art Garden FenceUS$ 20 - 23MOQ: 600 Sets -
Wire Mesh Grille 1m Height 50x200mm Mesh Size Hot Dip Galvanized After Welding Wire Fence NettingUS$ 3 - 30MOQ: 100 Pieces
-
Holland Welded Mesh 2.50mm Diameter 50.8*50.8mm Mesh Opening 3 Folds Galvanized+PVC CoatedUS$ 10 - 30MOQ: 100 Pieces
-
Galvanized and Green Powder Coated Iron Art Garden FenceUS$ 23 - 27MOQ: 500 Sets
-
Galvanized and Pvc Coated Iron Art Garden FenceUS$ 23 - 25MOQ: 500 Sets
Specifications
Steel garden fence1)Degreasing, rust, phosphating, passivation
2)Electrostatic spraying
3)High temperature curin
Specifications
It is available in a range of finishes, galvanized in, or coated in various colours to blend with the environment.
Palisade fencing divided into traditional 'D' section pales or 'W' section pales in a full range of heights from 1.2 metres up to 3.6
W section high security fencing is another style of palisade. This type of fencing is an extremely effective first line of defense against the more aggressive intruder. Suitable for high security use. W section palisade is stronger and more durable than D section and is a lot more effective as high security fencing.
Palisade Fencing Specification:
The fence comes in heights ranging from 1.8m to 3.0m.
Fence Height (mm) |
Pale Profile Sections 'D' (mm) |
Pale Profile Sections 'W' (mm) |
Horizontal Rails Angle Section (mm) |
IPA Section(mm) |
Length (mm) |
Support feet per bay |
1800 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2400 |
2 |
2000 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2625 |
2 |
2100 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2725 |
2 |
2400 |
3 |
2.5 |
45x45x6 |
98 x 55 |
3125 |
2 |
3000 |
3 |
2.5 |
50x50x6 |
98 x 55 |
3925 |
2 |
The thickness of panels can be as followed:
THICKNESS OF W PANEL:2.0MM,2.5MM,3.0MM;
THICKNESS OF D PANEL:2.5MM,3.0MM,3.5MM;
L RAIL: 2 HORIZONTAL RAILS, AND 1 POST.
'H' POST:
TAMPER PROOF NUTS & BOLTS:8MM .
