Wire Mesh Demister

Wire Mesh Demister , or named Wire Mesh Mist Eliminator, is a kind of vapor-liquid separating device.

Material :stainless steel wire ,nickel wire ,copper wire, galvanized wire , iron wire , monel wire

wire mesh demister specification

Applications: Mainly used in petroleum, chemical industry, pharmacy, foodstuff,wine and water treatment etc

standard type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
common diameter :0.20-0 .45 mm
form code: SP
Weight capacity: 168 Kg/m³
specific surface area: 529.6 m^2/m³
porosity : 0.9788ε

High efficient type Metal wire mesh demister

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100  90-150

common diameter : 0.12-0.45mm

form code: HR
Weight capacity: 128 Kg/m³
specific surface area: 403.5  m2/m³
porosity : 0.9839ε

shock absorption type Metal wire mesh  demister

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120

common diameter : 0.21mm

form code: HR
Weight capacity: 168 Kg/m3
specific surface area: 529.6 m2/m3
porosity : 0.9788ε

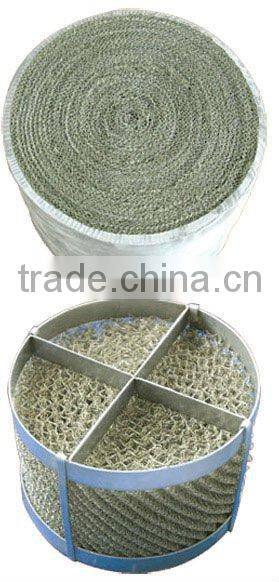

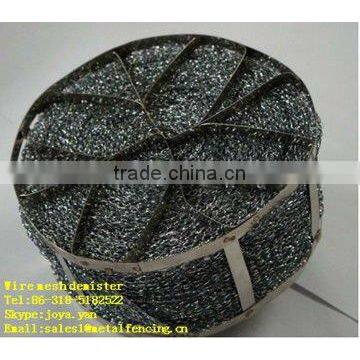

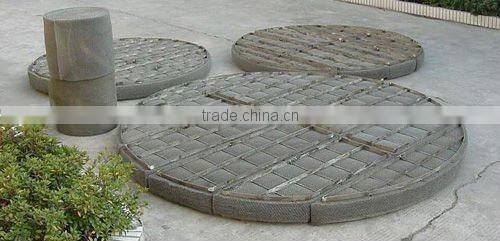

Wire mesh demister picture
