Wedge Wire Welded Sand Control Screen Cylinder

Wedge wire welded sand control screen cylinder

Anping Shengyang Metal Wire Mesh Products Co.Ltd is special on metal wire mesh products, we produce Water well screen Wedge wire screen & strainer cylinder & Rod based wire wrapped screen & Screen tube & Sand control well screen.
The continuous-slot strainer cylinder is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.

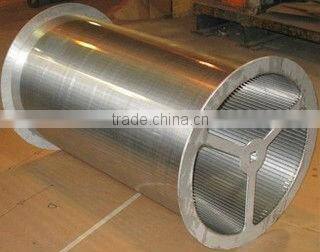

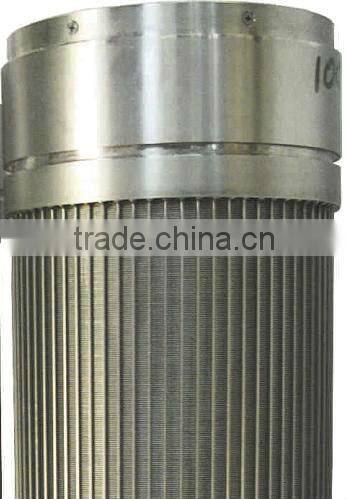

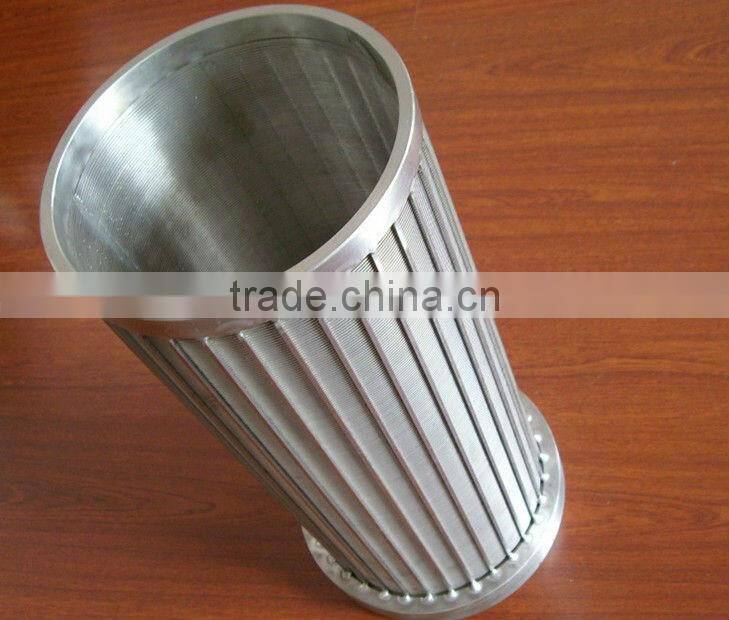

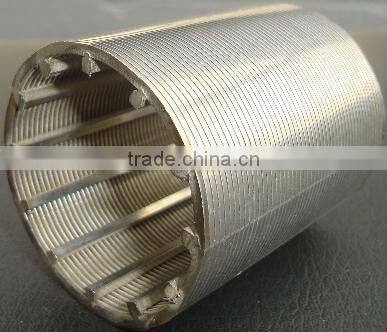

Wedge wire screen strainer cylinder is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

Slot opening for continuous-slot screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be clean and free of burrs and cuttings.

Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped openings, designed to be nonclogging, are narrowest at the outer face and widen inwardly.

Wedge wire welded strainer cylinder provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.

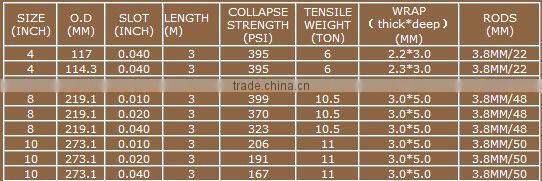

Slot size (mm):0.05, 0.1, 0.15, 0.2, 0.25, 0.3 also achieved upon customer request.
Strainer cylinder Material :Low Carbon Galvanized (LCG),Stainless Steel( 205,,304,316 etc.)

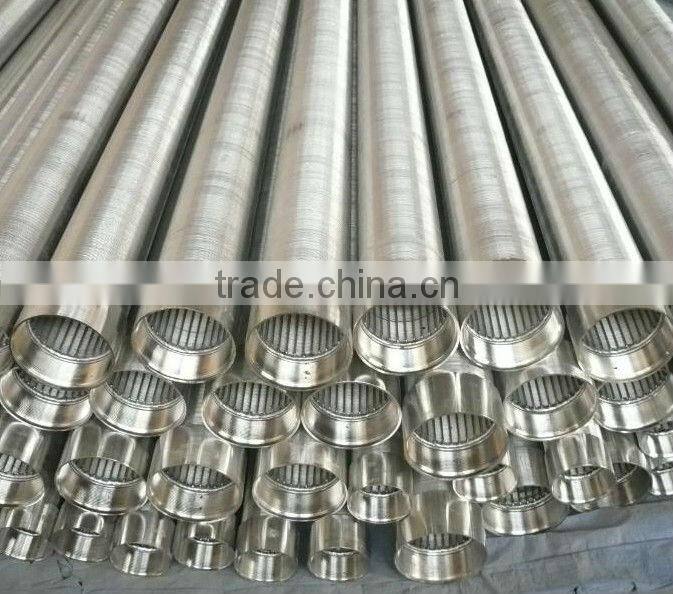

Lengths:up to 6 meters.
Diameter: from 25 mm to 1000mm.
Wedge wire screen tube End Connection:with welding or threaded male/female coupling.
