Johnson Screen Nozzle

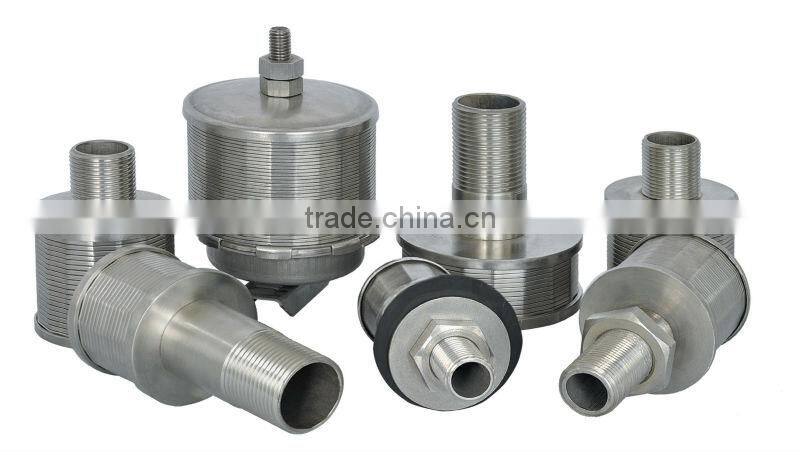

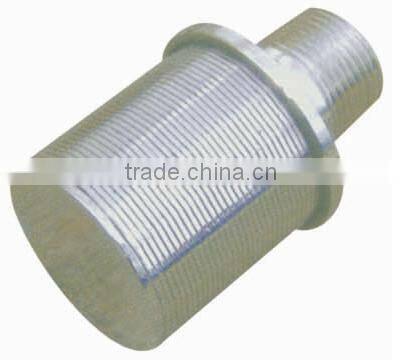

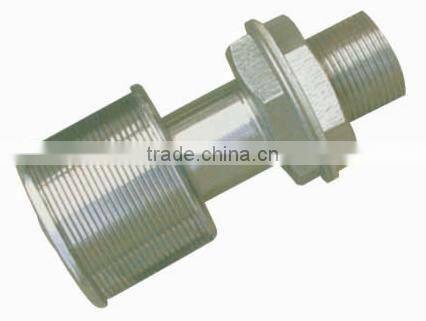

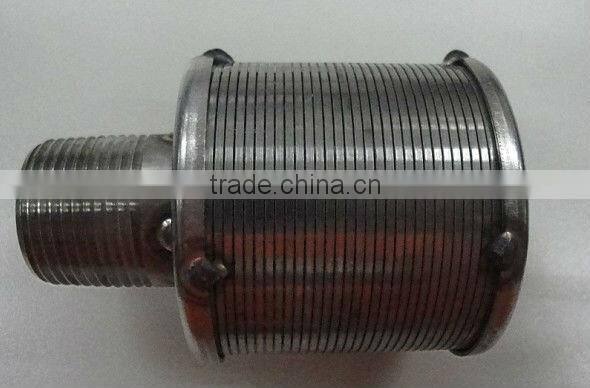

Johnson screen nozzle

Anping Shengyang Metal Wire Mesh Products Co.,Ltd is Johnson screen factory. We produce Johnson screen,screen nozzle, screen tube, filter tube, well pipe,wedge wire screen etc.

Standard nozzles are used effectively in a variety of water treatment systems. They are economical, easily installed, and have several distinct design advantages:

1•Type 316L stainless steel construction.
2•Continuous slot design provides increased open area for better collection.
3•Standard nozzles are 2in./51mm diameter and can be attached to the plate either with threaded end fittings or with “L” bolts.
4•Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5•Johnson screen is highly resistant to plugging.
6•Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7•Less expensive than other screen of equal efficiency.
Small systems may be built modularly from off-the-shelf components requiring minimal customization.

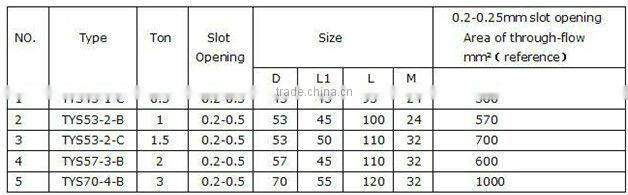

Screen nozzle specification
