Specifications
stainless steel window screeningSS 304,316,316L Grade
Australia,America standard
Own factory,10 Years

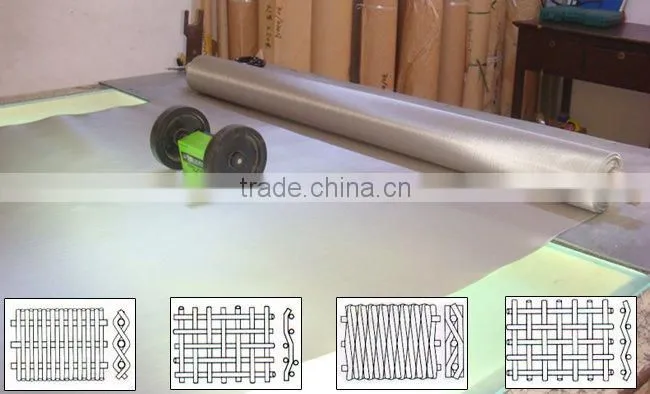

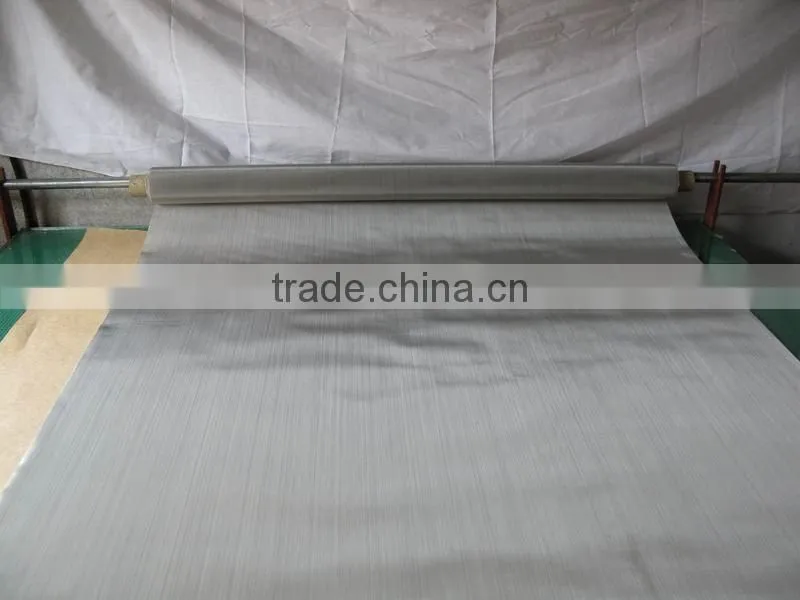

stainless steel window screening
SS 304,316,316L Grade
Australia,America standard
Own factory,10 YearsWire Materials:Aisi 304, 304L, 316, 316L, 310, 314, 410, 430.
Features:Stainless steel wire mesh plain woven offers high filtering efficiency, low pressure loss, constant mesh opening, good dimensional stability, high open surface area and good fireproof property.
Uses: Plain Woven Wire Mesh Clothes are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.
Stainless Steel Wire Mesh Square Opening Specification Reference List | |||
Mesh |
Wire Dia. (MM) |
Opening (MM) |
Material (AISI) |
2x2 |
1.8 |
10.9 |
304 or316 |
3x3 |
1.5 |
6.96 |
304 or316 |
4x4 |
1.0 |
5.35 |
304 or316 |
7x7 |
1.00 |
2.63 |
304 or316 |
10x10 |
0.60 |
1.94 |
304 or316 |
12x12 |
0.50 |
1.62 |
304 or316 |
16x16 |
0.40 |
1.19 |
304 or316 |
16x16 |
0.35 |
1.24 |
304 or316 |
18x18 |
0.35 |
1.06 |
304 or316 |
20x20 |
0.40 |
0.87 |
304 or316 |
24x24 |
0.26 |
0.80 |
304 or316 |
30x30 |
0.30 |
0.55 |
304 or316 |
35x35 |
0.17 |
0.56 |
304 or316 |
40x40 |
0.23 |
0.40 |
304 or316 |
50x50 |
0.20 |
0.31 |
304 or316 |
60x60 |
0.15 |
0.27 |
304 or316 |
70x70 |
0.12 |
0.24 |
304 or316 |
80x80 |
0.13 |
0.19 |
304 or316 |
90x90 |
0.12 |
0.16 |
304 or316 |
100x100 |
0.10 |
0.15 |
304 or316 |
120x120 |
0.09 |
0.12 |
304 or316 |
150x150 |
0.063 |
0.11 |
304 or316 |
180x180 |
0.053 |
0.09 |
304 or316 |
200x200 |
0.053 |
0.07 |
304 or316 |
250x250 |
0.040 |
0.063 |
316 |
300x300 |
0.040 |
0.044 |
316 |
325x325 |
0.035 |
0.043 |
316L |
350x350 |
0.030 |
0.042 |
316L |
400x400 |
0.030 |
0.033 |
316L |
450x450 |
0.028 |
0.028 |
316L |
500x500 |
0.025 |
0.026 |
316L |
