Specifications
1.Welded Mesh Gabions2.Size:100x100x30,100x50x30,200x100x50,etc
3.Connect with Spiral
4.Easy to install, Anti-corrosive
Hot Dipped Galvanized Welded Mesh Gabions
Welded Gabions are made of welded mesh panel.
They are faster to erect and do not need tensioning. This allows them to keep their shape,
to be free from bulges and depressions and fit easily against the wall.
Welded Gabions are used in many situations including the stabilization of earth movement and erosion,
river control, reservoirs, canal refurbishment, landscaping and retaining walls.
1. Specification:
Length x Width x |
Diaphragms |
Capacity (cu m) |
Nominal mesh (mm) |
||
1.0 x 0.3 x 0.3 |
0 |
0.09 |
50 x 50 75 x 75 100 x 50 |
||
|
1.0 x 0.5 x 0.3
|
0 |
0.15 |
|||
|
1.0 x 1.0 x 0.5
|
0 |
0.50 |
|||
|
1.0 x 1.0 x 1.0
|
0 |
1.00 |
|||
|
1.5 x 1.0 x 0.5
|
1 |
0.75 |
|||
|
1.5 x 1.0 x 1.0
|
1 |
1.50 |
|||
|
2.0 x 1.0 x 0.5
|
1 |
1.00 |
|||
|
2.0 x 1.0 x 1.0
|
1 |
2.00 |
|||
|
3.0 x 1.0 x 0.5
|
2 |
1.50 |
|||
|
3.0 x 1.0 x 1.0
|
2 |
3.00 |
|||
|
4.0 x 1.0 x 0.5
|
3 |
2.00 |
|||
2. Feature:
- Easy to install
- High zinc coating to assure of anti-rust and anit-corrosive
- Economic
- High security
3. Use:
- Retaining Walls
- Temporary Bridge Abutments
- Noise Barriers
- Beach Reinforcement
- River Bank Revetment
- Landscaped Boundaries
- Drainage Channels and Culverts
- Railway Embankments
- Safety Barriers

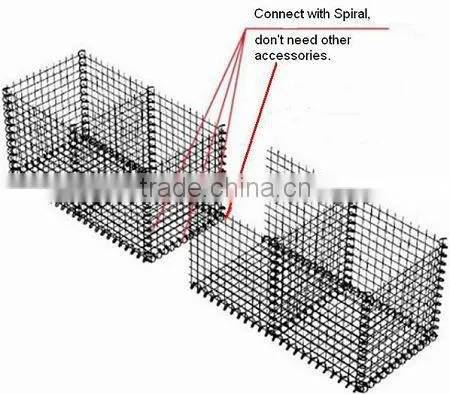

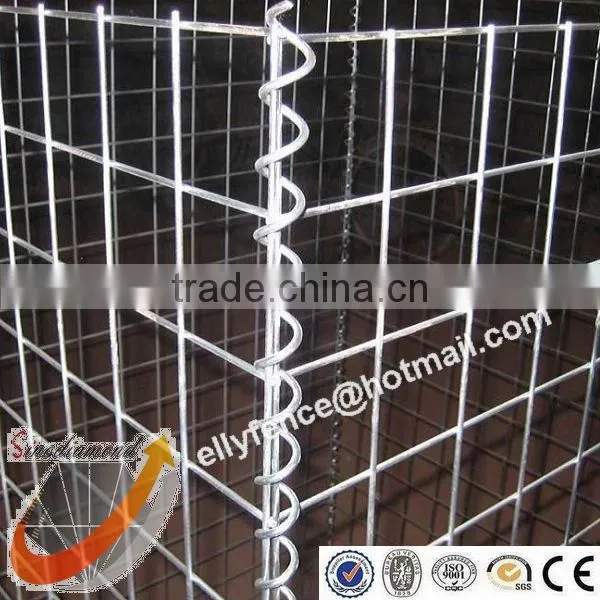

4. Connection with Spiral

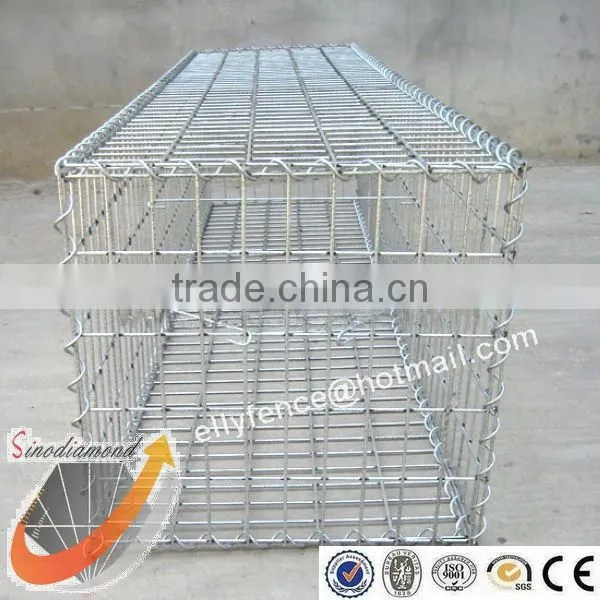

5. Products showcase:

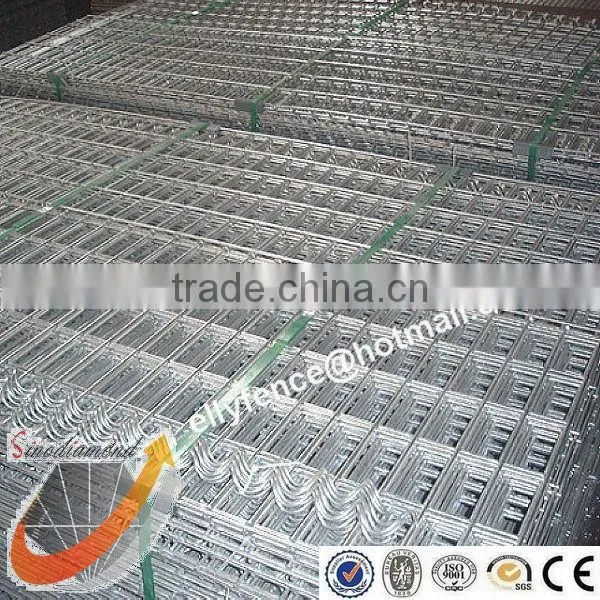

Packing; On pallet
