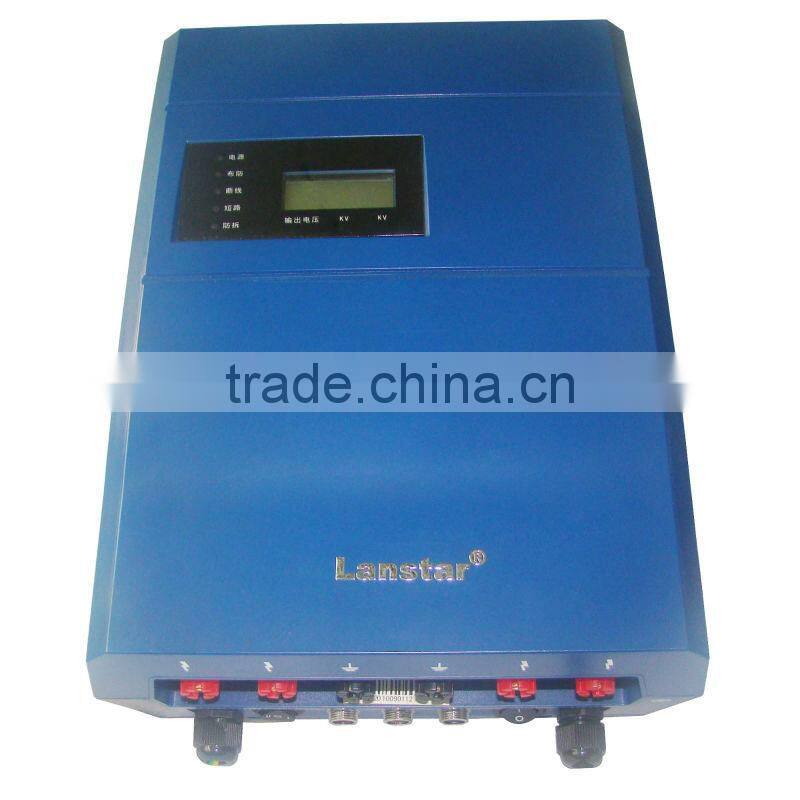

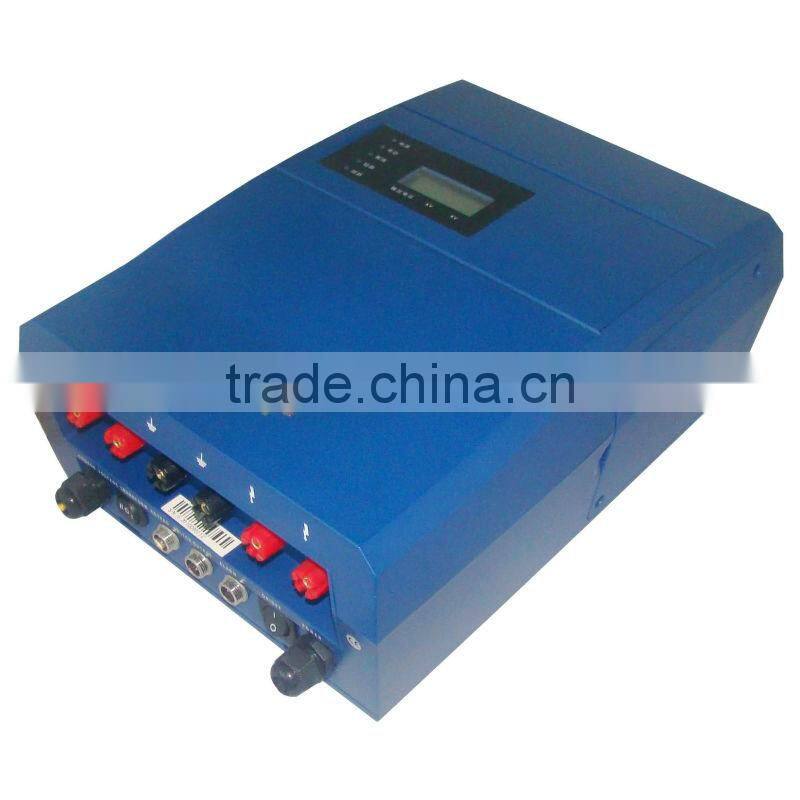

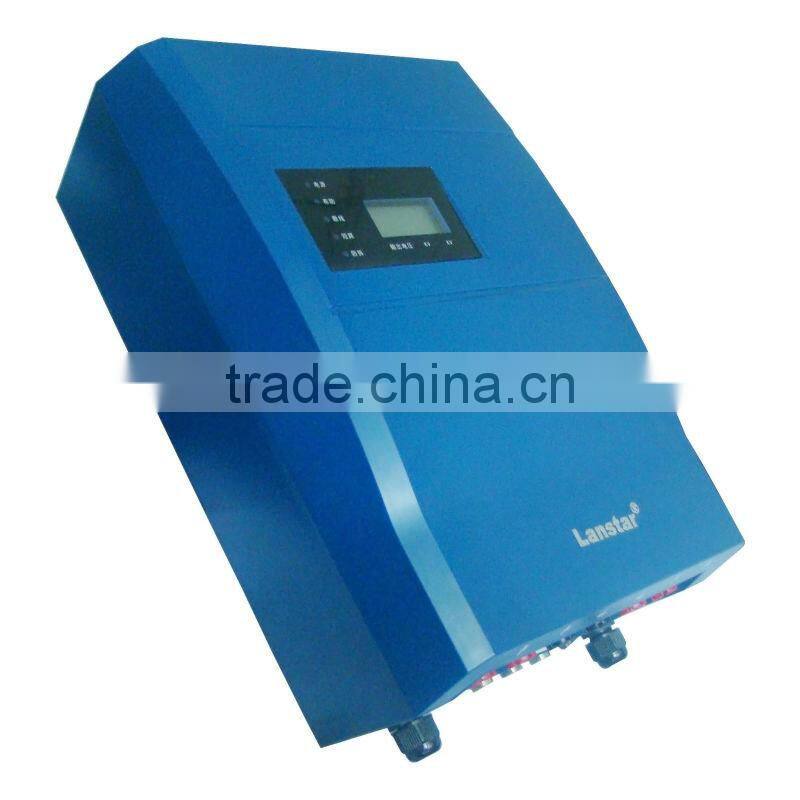

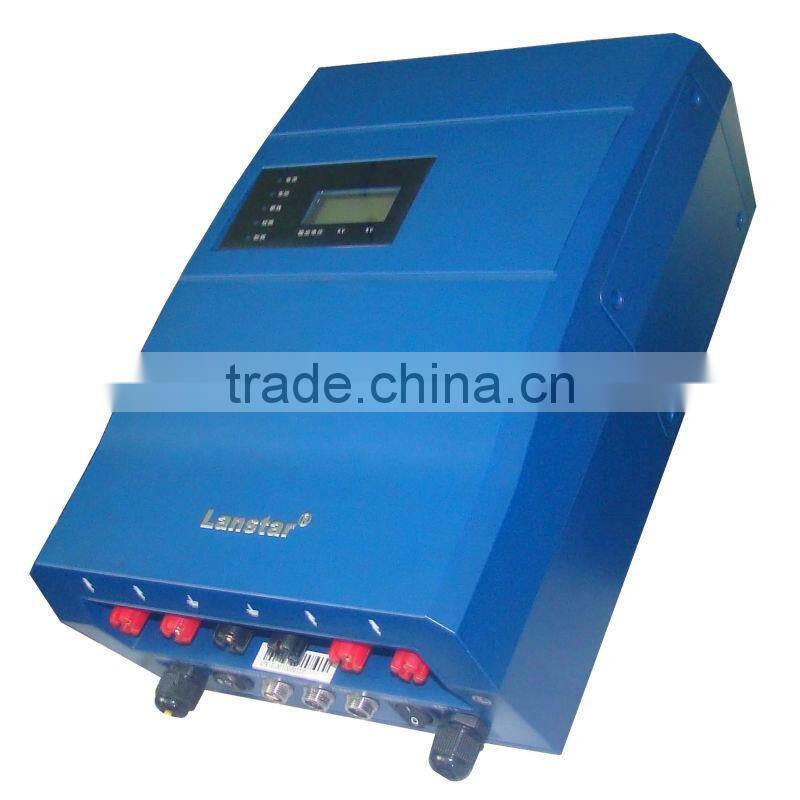

Lanstar electric fence energizer circuit diagram for perimeter security
1.Differential voltage output technology: every wire has voltage, have the differential voltage between the two
adjacent wires.
2.LCD indicate the working state and the voltage on every wire of fence.
3.High/low voltage switch manually, long-distance equipment auto switch function.
4.Short circuit, break and tamper alarm, Self-inspection System for equipment fault
5.Waterproof casing and downward appearance design leading the industry development.
6.RS 485 bus control, keypad, computer, network and multiple long distance management solution.
7.DC12V, NC/NO dry contact alarm output, can work with other modern security products
8.Lanstar electric fence energizer forperimeter security with CE,ISO certificate

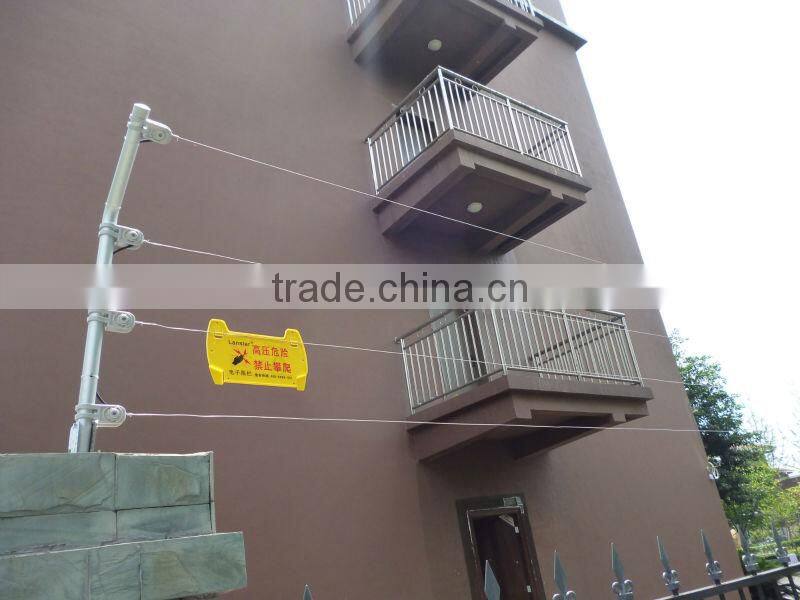

The electric fence energizer for perimeter security electric fence system with high voltage pulse to intruders tonuching the fence .
Exihibition pictures:
Technique specification:
1.Power supply :AC180V-240V 50Hz
2.System power consumption : 10 Watt
3.Operating environment
4.Temperature:-40 to +50°C
5.Relative humidity :≤95%
Output parameter:
Output peak voltage: 5KV~10KV
Output low voltage: 700~1000V
Peak current of pulse: <10A
Pulse duration: ≤0.1s
pulse interval time: 1s
Max quantity of electricity of pulse: 2.5mC
Max energy of pulse: ≤5.0J
Packing details:
Demension: 410×320×220 (mm)
Net Weight: 4.2kg
(Without battery)
Color: Blue
Packaging Details: Carton package
Our Factory Appearance
Our Industrial Park
Sales Department
Production Line
1.Sample order acceptable
2.Customized logo with OEM service is available for bulk order
3.Warranty:3 years(except artificial damage and vis major)
4. Considerate service after sale
What is electric fence system?
Electric fence system(the electric fence energizer and front fence ) is a psychological and physical barrier to detect,deter and delay intruders or wild animals with non-lethal high voltage pulse,which is widely used in farming and security areas.
Why choose us?
- Years of experience in electric fencing field
- Professional staffs for providing different solutions
- High Quality products and competitive prices
- Factory warranty with CE certificate and ISO9001:2008 certificate
Lanstar electric fence energizer circuit diagram for perimeter security
