Specifications
Anti-cut intelligent home security alarm system electric fence energizerAnti-cut specific functions
Anti-cut intelligent home security alarm system electric fence energizer
Anti-cut intelligent home security alarm system electric fence energizer is LX-2008
series of anti- cut electronic fence system , in addition to the special detection function , but also need access a anti-cut module in the end of high-voltage circuit (trailing end),so that the anti-cut function normal operation .

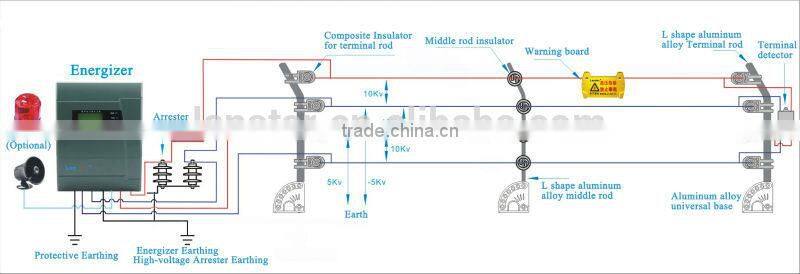

In a separate zone , there is a leading end and a trailing end , usually referred to as the initial end of the energizer is placed ( left figure ) , the other end is the trailing end ( shown on the right ) .
From above,the end anticut module is placed in the end and concatenated in the high voltage circuit,
the module has 4 high voltage line with 4 logos,respectively:HV-OUT+,HV-IN+,HV-OUT-,HV-IN-.
Just in line with the high voltage output port logo of the energizer,according to the corresponding logo,connect the Anti-cut module with energizer correspond port through the high voltage wire and alloy wire.
Features
- Shell level of protection achievedIP55;
- Remote control the Arm/Disarm;
- DC12V, NC/NO dry contact alarm output, can work with other modern security products;
- Function of query the alarm records and arm/disarm records;
- Short circuit, break and tamper alarm, Self-inspection System for equipment fault;
- LCD indicate the arming mode,alarm state,and the voltage on every wire of fence,etc. ;
- Backup battery power supply system ,the backup battery life >8H;
- Differential voltage output technology: every wire has voltage, have the differential voltage between the two adjacent wires;
- High/low voltage switch manually via software or hardware, long-distance equipment auto switch function;
- With high/low voltage, time, zone,alarm delay, Anti-cut sensitivity and other settings functions;
- RS 485 bus control, keypad, computer, network and multiple long distance management solution.
- Lanstar Anti-cut electric fence energizer for perimeter security with CE,ISO certificate
Anti-cut intelligent home security alarm system electric fence energizer
Exihibition pictures:
Technique specification:
1.Power supply :AC180V-240V50Hz
2.System power consumption : 15 Watt
3.Temperature:-25 to +55°C
4.Relative humidity :≤95%
Output parameter:
Output peak voltage: 4KV~7.5KV
Output low voltage:<1.0KV
Peak current of pulse: <10A
Pulse duration: ≤0.1s
pulse interval time: 1s~1.5s
Max quantity of electricity of pulse: 2.5mC
Max energy of pulse: ≤5.0J
Packing details:
Demension: 410×320×220 (mm)
Net Weight: 4.2kg(Without battery)
Color: Gray
Packaging Details: Carton package
Our Industrial Park
Sales Department
Production Line
1.Sample order acceptable
2.Customized logo with OEM service is available for bulk order
3.Warranty:3 years(except artificial damage and vis major)
4. Considerate service after sale
What is electric fence system?
Electric fence system(the electric fence energizer and front fence ) is a psychological and physical barrier to detect,deter and delay intruders or wild animals with non-lethal high voltage pulse,which is widely used in farming and security areas.
Why choose us?
- Years of experience in electric fencing field
- Professional staffs for providing different solutions
- High Quality products and competitive prices
- Factory warranty with CE certificate and ISO9001:2008 certificate
Anti-cut intelligent home security alarm system electric fence energizer with high voltage pulse to intruders tonuching the fence . which establishes a physical and psychological barrier to prevent invasion .
