Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > 8ft or 10ft Hydraulic Dock Container Loading Ramps

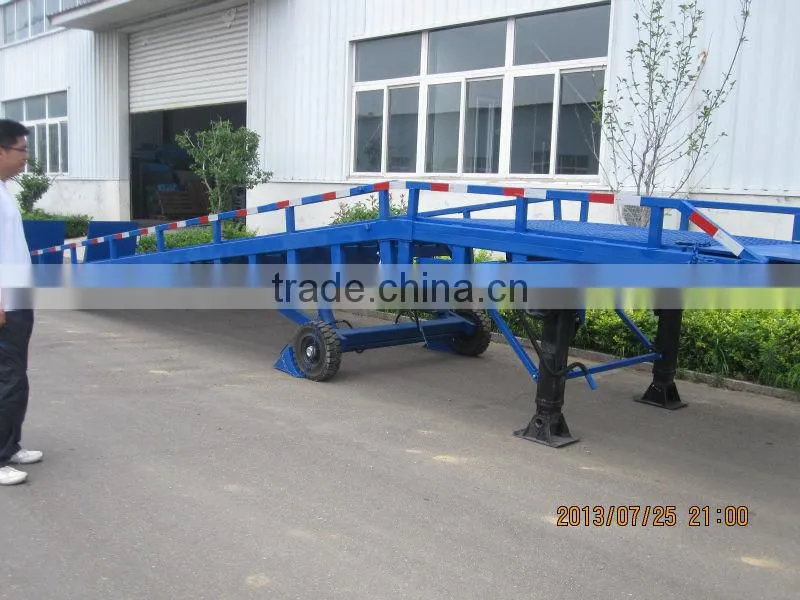

8ft or 10ft Hydraulic Dock Container Loading Ramps
US$ 4,500 - 5,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HAYLITE
Model Number:
HLT140807-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Dock Container Loading RampsUS$ 4,500 - 5,500MOQ: 1 Set -
Container Yard Loading RampUS$ 4,000 - 5,000MOQ: 2 Sets
-
Mobile Hydraulic Yard RampUS$ 4,000 - 5,000MOQ: 2 Sets
-
Mobile Hydraulic Yard RampUS$ 4,000 - 5,000MOQ: 2 Sets
-
10T Hydraulic Mobile Yard RampUS$ 0.000001 - 0.01MOQ: 1 Piece
Place of Origin
Shandong, China
Brand Name
HAYLITE
Model Number
HLT140807-1
Lift Mechanism
Lift Chain
Lift Drive / Actuation
Hydraulic
Rated Loading Capacity
10tons
Min. Lifting Height
1200mm
Max. Lifting Height
1800mm
Overall Dimensions
10500x2100x880mm
Weight
3.2tons
Certification
Certificate
Warranty
one year
After-sales Service Provided
No overseas service provided
Specifications
Loading capacity: 10tSize: 10500x2100x880mm
Adjustable height: 1200-1800mm
G. W: 3.2
Product Description

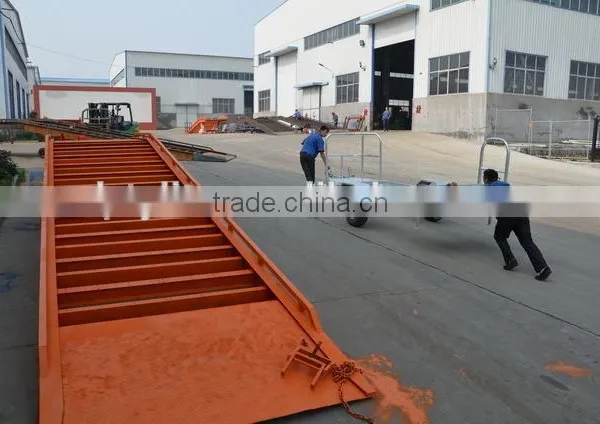

Description of our container loading ramp
Item no:PCCR03
Loading capacity:10t
Size: 11000x2100mm
Adjustable height:1200-1800mm
G.W:3.2t
40HQ:4sets
Details
1: Hot dip galvanized steel grating connect with the ramp with bolt, and can be replaced when it is broken
2: 2 manual control cylinders,solid tire, surface painting, frame body is connected with I-steel and channel steel

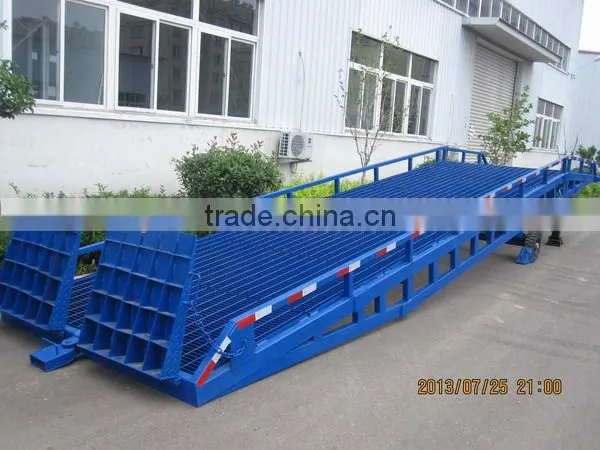

Item no:PCCR04
Steel grating can be replaced
Loading capacity:10t
Size: 11000x2200mm
Adjustable height:1200-1800mm
G.W:3.2t
40HQ:4sets
Details
1: Hot dip galvanized steel grating connect with the ramp with bolt, and can be replaced when it is broken
2: 2 manual control cylinders,solid tire, surface painting, frame body is connected with I-steel and channel steel
Loading capacity:10t Size:10500x2100x1200-1800mm Adjustable height:1200-1800mm G.W:2.6t
| Model No. | Size | Adjustable Height | Load | Sepcifications | Weight | Loading Capacity 40′HQ | |||
| HLT-1 | 11000x2100mm | 1200-1800mm | 10t | Two posts,The main pipe of the frame:120x60x4.5mm, The middle connceted pipes:100x50x4mm |
2.6t | 3Sets | |||
| HLT-2 | 11000x2100mm | 1200-1800mm | 8t | Two posts,The main pipe of the frame:120x60x4mm, The middle connceted pipes:100x50x3.5mm |
2.4t | 3Sets | |||
| HLT-3 | 10500x2100mm | 1200-1800mm | 10t | Two posts,The frame body connected with I-Beam and channel steel,the main frame:I-Beam 28b 280×130×10.5mm, the connected I-Beam:14# 140×80×5.5mm, channel steel: 140x58x6mm |
3.2t | 4Sets | |||
| HLT-4 | 10500x2100mm | 1200-1800mm | 8t | Two posts,The frame body connected with I-Beam and channel steel,the main frame:I-Beam 28b 280×124×8.5mm, the connected I-Beam:12.6# 126×74×5mm, channel steel: 100x48x5.3mm |
3t | 4Sets | |||
1. Experience
We've been manufacturing trailers for more than 10 years. We're among the earliest companies in China making trailers. We're professional manufacturer. We have abundant experience on design and fabrication.
2. High quality We keep strict control on every procedure and every parts. We've been awarded with certificate of ISO9001.
3. Competitive prices In Chinese market, we're unbeatable on boat trailers. Before you order please check with us and you'll definitely save a lot. For other trailers, we're very competitive in price as well.
We've been manufacturing trailers for more than 10 years. We're among the earliest companies in China making trailers. We're professional manufacturer. We have abundant experience on design and fabrication.
2. High quality We keep strict control on every procedure and every parts. We've been awarded with certificate of ISO9001.
3. Competitive prices In Chinese market, we're unbeatable on boat trailers. Before you order please check with us and you'll definitely save a lot. For other trailers, we're very competitive in price as well.

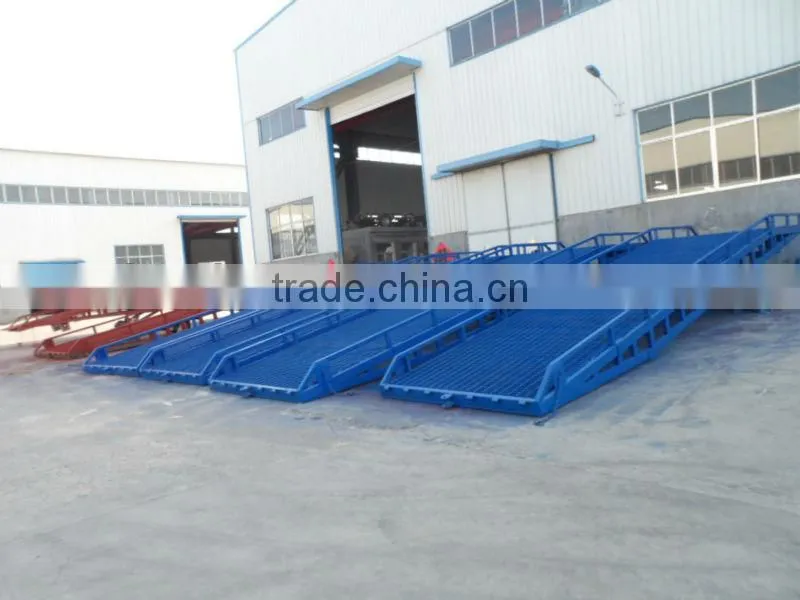

Mobile dock leveler is accessory equipment helping forklift or hand trailer to moving goods into the carriages or containers directly. It adopts handle hydraulic equipment to adjust the lifting height to truck height, or changed to electricity power. And the ramp can be operated by single person easily, in this way saving people work and promoting work efficiency. The regular model of this ramp is: Width-2.08m, length-11m, adjusting height range-1m to 1.7m. And it also can be designed and produced according to customers' requirements. This machine is suit for: Often material handling, warehouse, wharf, logistics center working place.
Key words: Yard ramp, mobile yard ramp, dock leveler, mobile dock leveler.

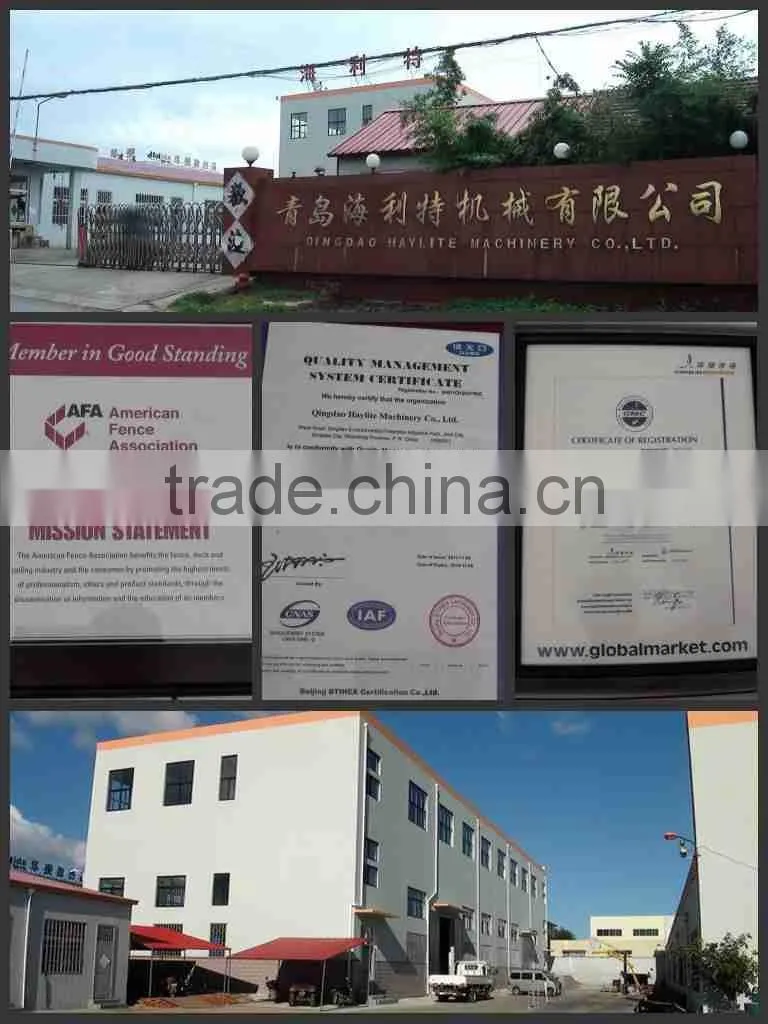

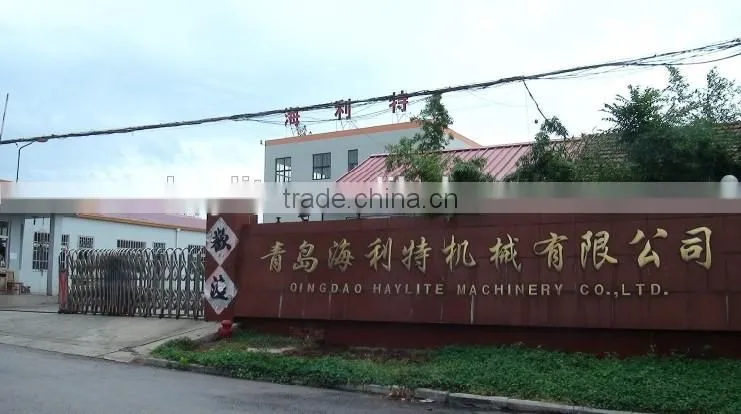

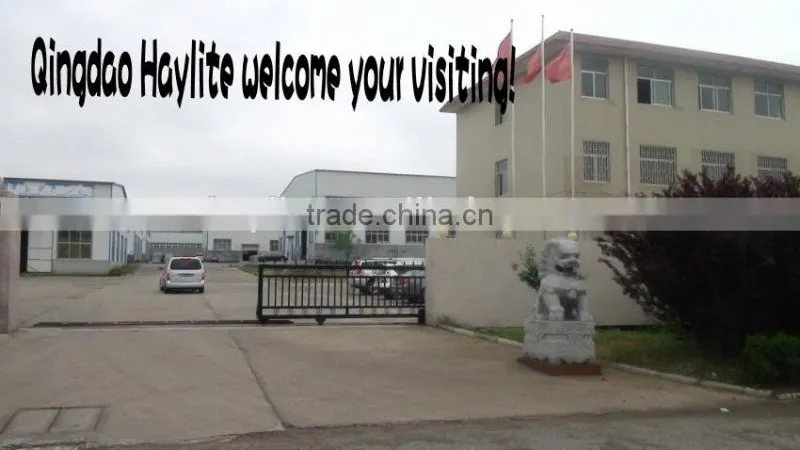

Company Information
Also if you have your own design, you can send to us, we will quote for you

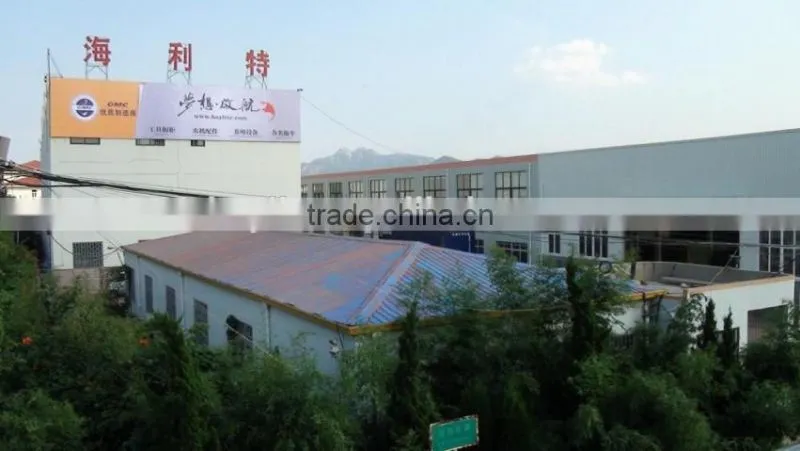

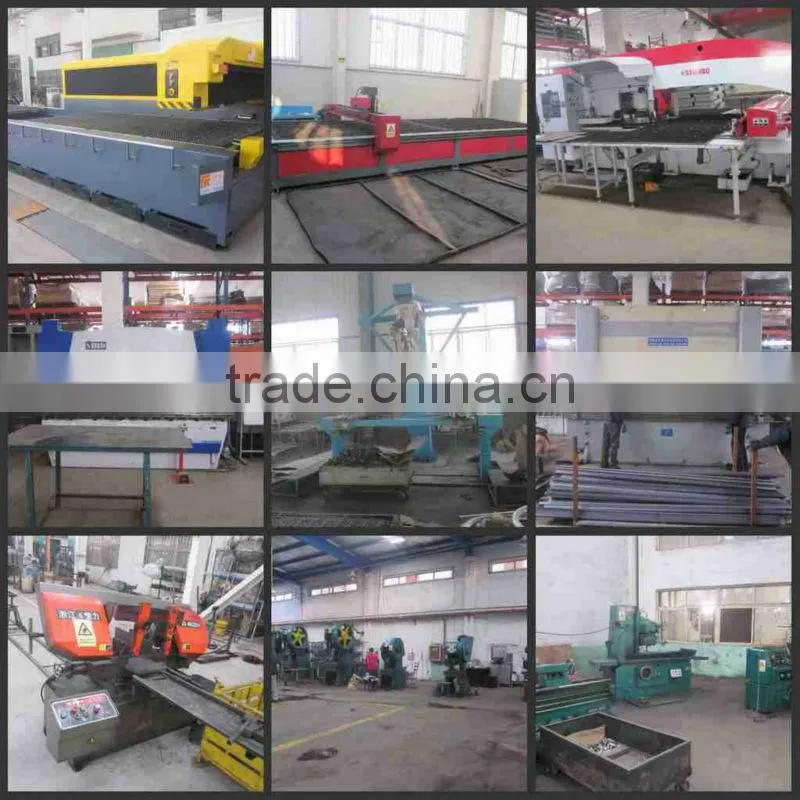

We have been manufacturing Container loading ramps products for many years, and we have enough experience and high technology to supply high quality products at competitive prices. Our products are well accepted for their good quality and competitive prices. Our factory covers more than 53, 613 square meters, owing CNC punching machine, CNC plate bending machine, CNC plasma cutting machine, CNC Laser cutting machine, Plate Bending Machine, Plate Clipping Machine, Pipe Bending Machines, Pipe Swaging Machines, Punching Machines and Welding Machines. With professional team and equipment, we can offer you professional service.
Our Services
Put quality first and treat cusomers supremacy is the aim of the company .We provide perfect products&service sincerely to all clients.Generally Manager Teng Zhanjiang warmly welcomes all friends to visit us,cooperate with us on basis of mutual&equitable benefit,found close relations to develop with us and create bright future together
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2000
Factory Size
50,000-100,000 square meters
Total Employees
101 - 200 People
