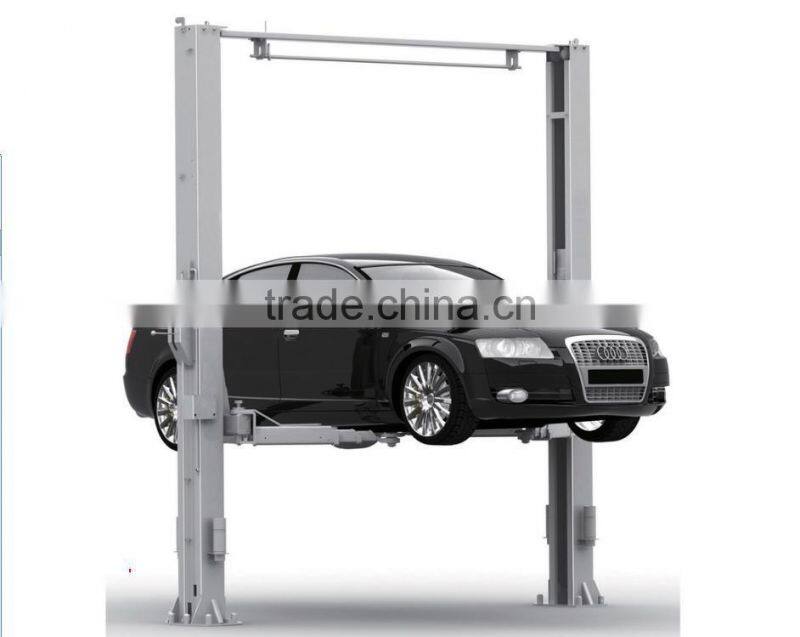

Two Post Hydraulic Auo Car Lift

Specifications

2 post lift

With Single side manual release, 4.5 tons

Specifications:

Lifting capacity:4500kg

Post Height: 3602mm

Total width: 3339.5mm

Car max lifting height: 1876mm

Minimum height: 76mm

Clearance between posts: 2779.5mm

Width of post material:180mm

arm maximum length:1362.7

arm minimum length: 728.7

Lifting Time: 50s

Lowering Time: 30s

Power Supply Voltage: 220V/380V ,1ph/3ph

Net Weight:565kg      Gross Weight :625kg

Packing Dimension:

860*290*360mm and 3705*740*515

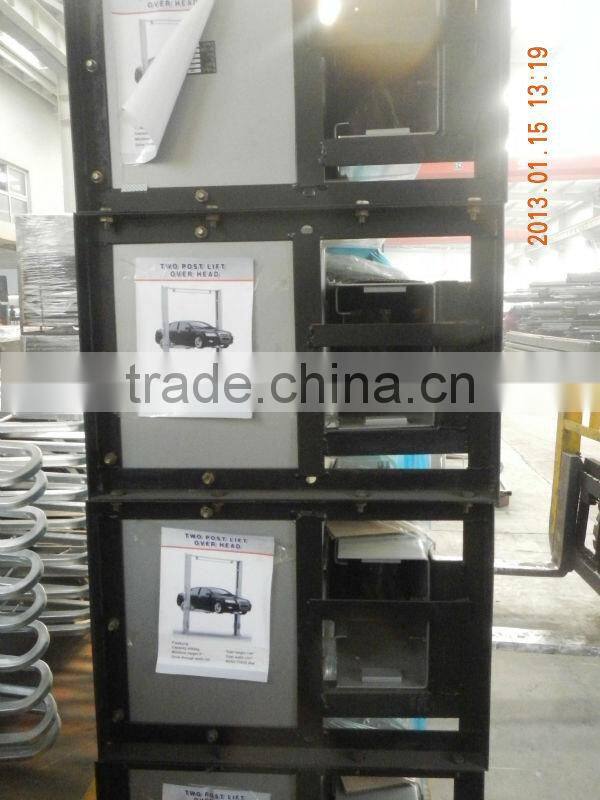

Shipping: 32 pieces / 40’ container
