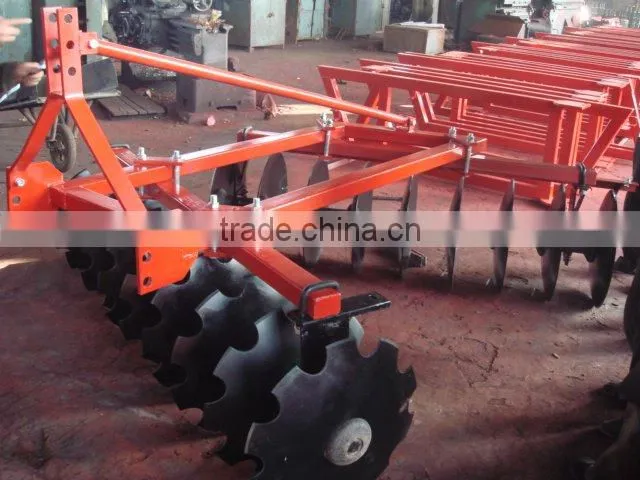

Help CenterMounted Disc Harrow
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Farm Cultivator
Certification:
ISO 9001:2000
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Farm Cultivator
Certification
ISO 9001:2000
Place of Origin
Shandong, China
Specifications
Cultivator(disc harrow)farming width:1.7-3m farming depth:15cm
No.of baldes:16-28pcs
balde standard:460*4
heavier beari
TECHNICAL SPECIFICATIONS FOR 1BQX & 1BQ SERIES LIGHT-DUTY OFF-SET DISC HARROW
| Type | 1BQX—1.1 | 1BQX—1.3 | 1BQX—1.5 | 1BQX—1.7 | 1BQX—1.9 | 1BQX—2.3 | 1BQ—3.4 | 1BQ—4.4 | 1BQ—5.0 | 1BQ—5.5 | 1BQ—7.0 | |
| Name | The 12-blades mounted harrow | The 14-blades mounted harrow | The 16-blades mounted harrow | The 18-blades mounted harrow | The 20-blades mounted harrow | The 24-blades mounted harrow | The 42-blades harrow | The 54-blades harrow | The 60-blades harrow | The 66-blades harrow | The 80-blades harrow | |
| Overall dimensions(mm) | L | 1590 | 1590 | 1905 | 1905 | 2305 | 2650 | 5360 | 5820 | 5820 | 6000 | 7200 |
| W | 1230 | 1440 | 1600 | 1820 | 2000 | 2450 | 3400 | 4600 | 5200 | 5700 | 6400 | |
| H | 830 | 830 | 1118 | 1118 | 1118 | 1280 | 1050 | 1050 | 1050 | 1050 | 1050 | |
| Max. Working width (m) | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | 2.3 | 3.4 | 4.4 | 5.0 | 5.5 | 7.0 | |
| Working depth(cm) | 8~14 | |||||||||||
| No. Of disc | 12 | 14 | 16 | 18 | 20 | 24 | 42 | 54 | 60 | 66 | 80 | |
| Dia of disc(mm) | 460 | 510 | ||||||||||
| Thickness of disc(mm) | 3 | 4 | ||||||||||
| Disc spacing(mm) | 200 | 170 | ||||||||||
| Weight(kg) | 200 | 220 | 245 | 265 | 300 | 500 | 1108 | 1520 | 1620 | 2800 | 3300 | |
| Productivity(ha/h) | 0.7 | 0.84 | 0.97 | 1.1 | 1.3 | 1.5 | 1.72 | 2.45 | 3 | 3.4 | 4.2 | |
| Linkage | three-point mounted | Trailed | ||||||||||
| Trans. Clearance(mm) | ≥280 | ≥280 | ≥200 | ≥200 | ≥200 | ≥200 | ≥160 | |||||
| Matched power(kw) | 8.8-14.7 | 11-18.4 | 14.7-25.7 | 20.6-29.4 | 25.7-36.8 | ≥40.4 | ≥47.7 | ≥55 | ≥58.8 | ≥66 | >88 | |
