Drum Timber/wood Chipping Machine

Drum Timber/wood Chipping Machine photo-1
US$ 1,200 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
dafu
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name dafu
Model Number 2L*640
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Chipping machines have two kinds, one is disk type, another is drum type.

Chipping machines have two kinds, one is disk type, another  is drum type.



If you need Drum Chipping Machine, please .
Introduction of Disk Timber Chipping Machine :

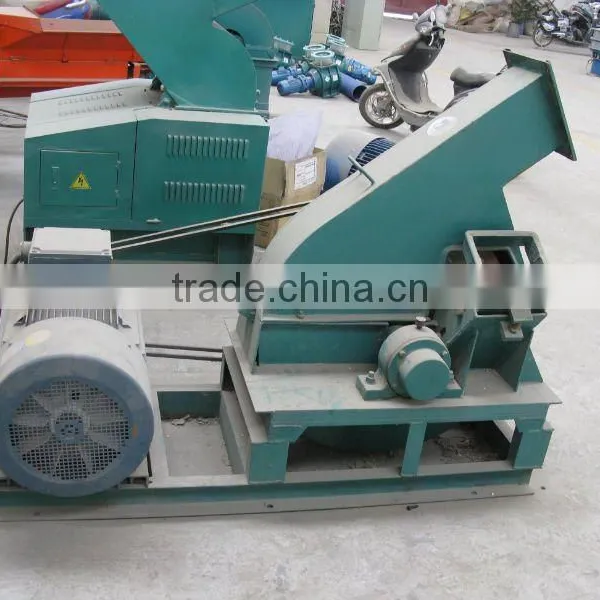

Screw plate-shaped chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
Timber Chiping Machine

Specifications of Disk Timber Chipping Machine
Mobel of machine 2L×640 2L×1000
Diameter of cutter head(mm) 640 1000
Rotary speed of cutter head(r/min) 970 740
Quantity(sheet) of fly cutter 6 6
Length of wood chip,thickness(mm) 15-35 2-3 15-35 3-7
Mode of feeding Declination Declination
Dimension of feeding opening(mm) 150×140 250×250
Productive Capacity (t/h) 3-5 5-8
Power of electric motor(kw) 37 75
Maximum diameter of cutting wood(mm) 100 200
Mode of discharging Up Up
Weight of complete machine (kg) 1192 3375
External dimension (length×width×height) 2002×1175×1360 2820×1838×1892
