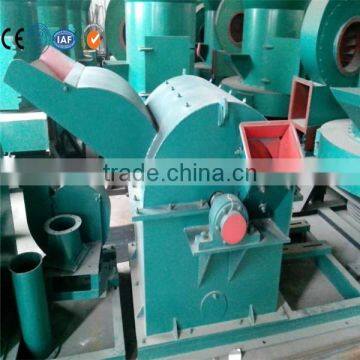

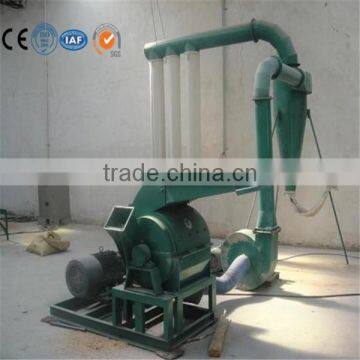

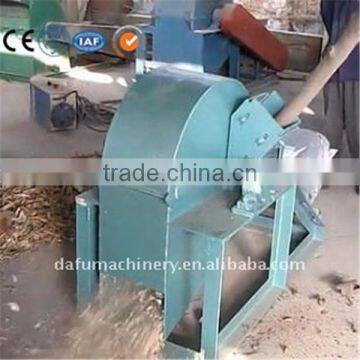

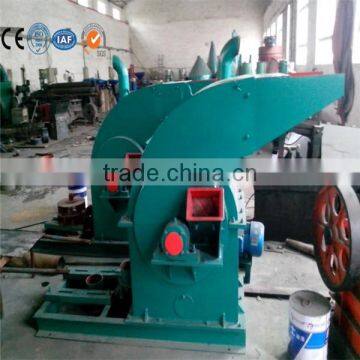

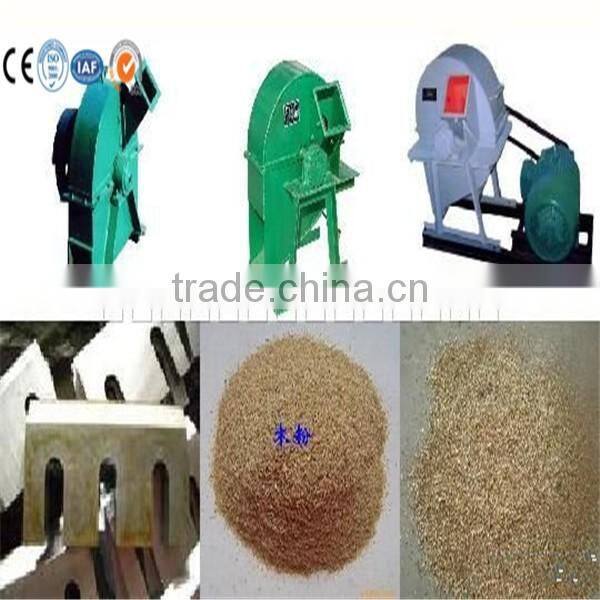

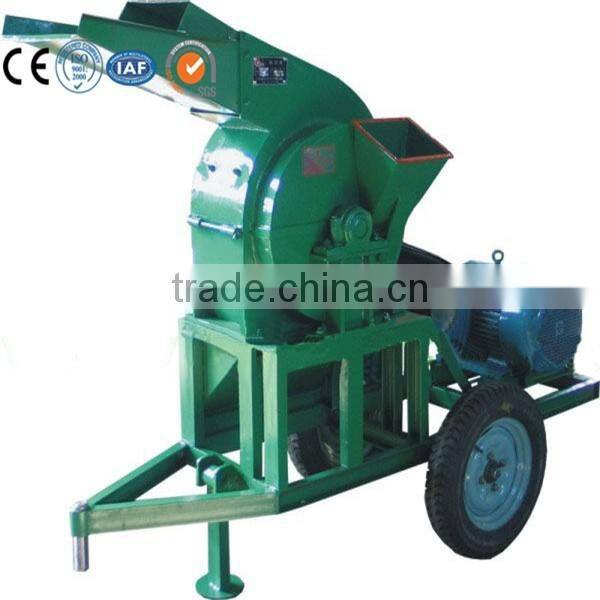

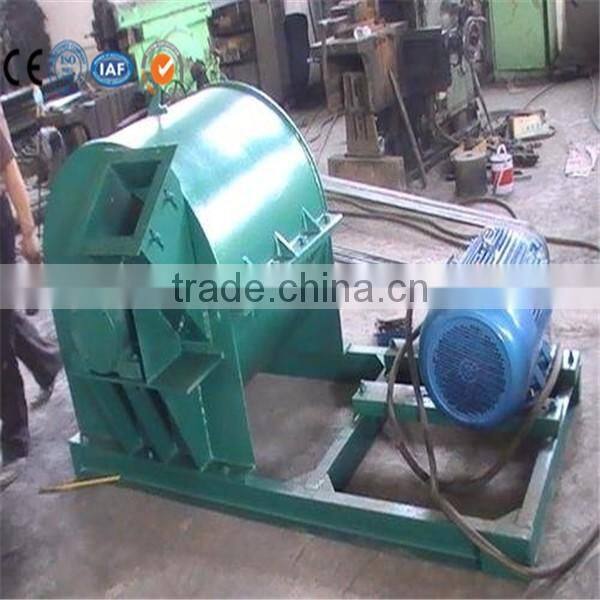

High efficiencent wood sawdust machine with motor
Wood sawdust machine is based on the needs of industrial production in China, after years of research and design of the timber invented special equipment to smash series. As a result of rational design, compact structure, safety, durability, production efficiency, by promoting the use of, the result is good, only a whole set of equipment, motor drive, noise, simple structure, compact layout, the price cheap, stable, consumption less able to yield high quality wood products, low processing costs.
1. Application:
Sawdust mchine also named wood crushing machine and wood crusher, it can crush wood logs,wood block and wood waste into sawdust and granular with different fineness.
2. Characteristics:
This type of sawdust machine made by us is energy-saving type and easy to operate.It is designed and developed according to industrial requirements.It belongs to wood crushing and pulverizing machine. It is finely processed, high efficiency and environmental protection type. It is optional for electricity and diesel so it can meet buyers’ different requirements.
3. Working principle:
It uses blades to cutting and high speed airflow to reduce the wood into sawdust and granular with different fineness.While the blades inside are cutting with a high rotating speed, the rotor generates strong airflow which rotates st the same direction as rotor. As the blades rotate and cut, the airflow crushes the material at the same time. In this way, the speed of sawdust output can be increased.
4.The main purpose
Set slice, smash into one, can chip in diameter 1 - 20 cm and branches, can also be used for bamboo, grass, corn stalk, sorghum stalk stalk fiber, such as the chip-like material.
5.Equipment
This chip device by cutting, grinding devices and fan components
Model of machine |
BX1000 |
BX800 |
BX600 |
BX400 |
Diameter of cutter head(mm) |
1050 |
800 |
600 |
400 |
Quantity/block of blade |
6 |
4-6 |
4 |
4 |
Length of blade(mm) |
530 |
230 |
200 |
125 |
Dimension of feeding opening(mm) |
500×500 |
250×230 |
250×200 |
144×150 |
Rotary speed of main shaft(r/min) |
1400 |
2100 |
2600 |
2600 |
Equipped force (kw) |
55 |
30 |
22-30 |
15-22 |
Output(kg/h) |
2000-3000 |
1000-1500 |
800-900 |
600-700 |
Notice: Any change of Sawdust Machine technical data shall not be advised additionally. | ||||
If you are interested in themachineryby us, please Contact us or visit the website of the company for relevant prices and detailed technical parameters and specifications etc. Henan Dafu Mechanical Import and Export Co., Ltd. will assure you of our best service at all time!
