Specifications

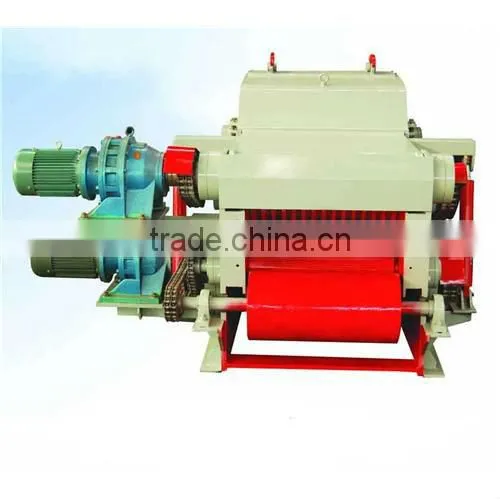

high strength,reliable manufacture,diesel or electricity motor,deft designScrew plate-shaped chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chipping machineis mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
Specifications of Disk Timber Chipping Machine
Model of machine |
2L×640 |
2L×1000 |
Diameter of cutter head(mm) |
640 |
1000 |
Rotary speed of cutter head(r/min) |
970 |
740 |
Quantity(sheet) of fly cutter |
6 |
6 |
Length of wood chip, thickness(mm) |
15-35 2-3 |
15-35 3-7 |
Mode of feeding |
Declination |
Declination |
Dimension of feeding opening(mm) |
150×140 |
250×250 |
Productive Capacity (t/h) |
3-5 |
5-8 |
Power of electric motor(kw) |
37 |
75 |
Maximum diameter of cutting wood(mm) |
100 |
200 |
Mode of discharging |
Up |
Up |
Weight of complete machine (kg) |
1192 |
3375 |
External dimension (length×width×height) |
2002×1175×1360 |
2820×1838×1892 |
