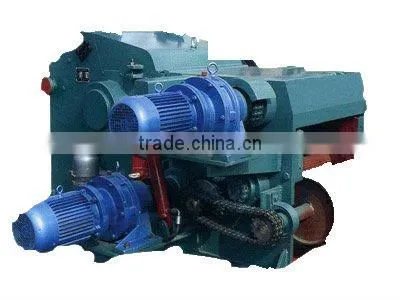

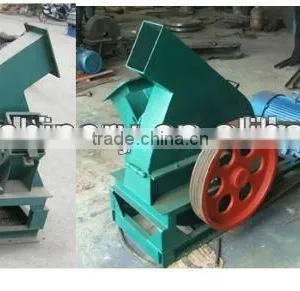

Higjh Technology Disk Timber Chipping Machine
US$ 2,000 - 7,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Use:
Woodworking
Style:
Horizontal
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
LianYunGang TianJin ShangHai Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Drum Timber Chipping MachineUS$ 2,000 - 7,000MOQ: 1 Set -
China Desperately Needed Timber Chipping Machine(Drum)US$ 2,000 - 7,000MOQ: 1 Set
-
Less Pollute Timber Chipping MachineUS$ 2,000 - 7,000MOQ: 1 Set
-
China Three Wheel Wood Chipping Machines With Professional SkillUS$ 1,800 - 90,000MOQ: 1 Set
-
Wood Debarking/peeling Machine With Direct ManucafureNegotiableMOQ: 1 Set
Use
Woodworking
Style
Horizontal
Place of Origin
Henan, China
Brand Name
dafu
Model Number
2L*1000
Specifications
Disk Timber Chipping machine1.easy operation
2.widely used
3.finely processed
4.less land occupation

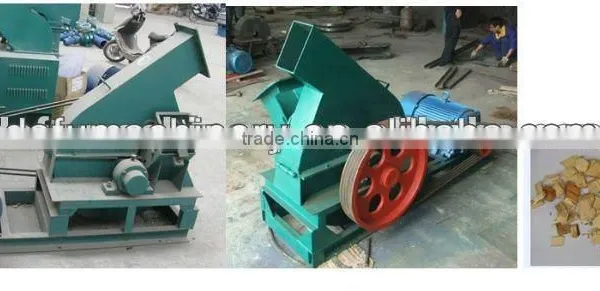

Introduction of Disk Timber Chipping Machine :
Screw plate-shaped chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
Specifications of Disk Timber Chipping Machine
| Mobel of machine | 2L×640 | 2L×1000 |
| Diameter of cutter head(mm) | 640 | 1000 |
| Rotary speed of cutter head(r/min) | 970 | 740 |
| Quantity(sheet) of fly cutter | 6 | 6 |
| Length of wood chip,thickness(mm) | 15-35 2-3 | 15-35 3-7 |
| Mode of feeding | Declination | Declination |
| Dimension of feeding opening(mm) | 150×140 | 250×250 |
| Productive Capacity (t/h) | 3-5 | 5-8 |
| Power of electric motor(kw) | 37 | 75 |
| Maximum diameter of cutting wood(mm) | 100 | 200 |
| Mode of discharging | Up | Up |
| Weight of complete machine (kg) | 1192 | 3375 |
| External dimension (length×width×height) | 2002×1175×1360 | 2820×1838×1892 |
My mobile :8615039094214
If you have any need of Disk Timmber chipping machine, please feel free to contact me! I'll give you a reliable price.
