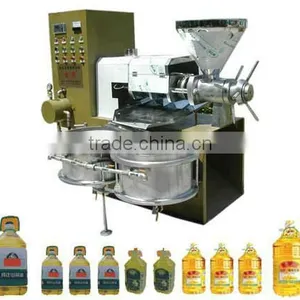

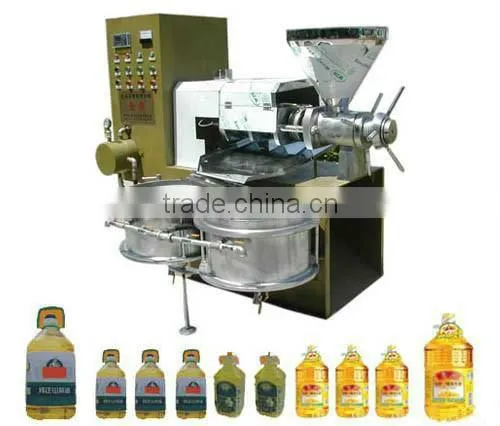

Help CenterMulti-functional Oil Expeller
Related Products
-
Good Quality Olive Oil Press MachineUS$ 3,000 - 8,000MOQ: 1 Set -
High-yield Hydraulic Oil Expeller for Home UseUS$ 2,000 - 8,000MOQ: 1 Set
-
China Quality-guaranteed Hydraulic Oil ExpellerUS$ 3,000 - 8,000MOQ: 1 Set
-
2013 New Type Household Full Automatic Crude Edible Oil Presser With Olive,sesame ,farmseeds Ect.US$ 2,000 - 6,000MOQ: 1 Set
-
Hydraulic Oil Pressing Machine With High EfficientUS$ 2,000 - 5,000MOQ: 1 Set
Specifications
screw oil expeller1. small in size
2. light in weight
3. filtered by vacuum
4. rather little residue
All kinds of models of screw automatic oil presses made by us are of many good advantages: material selection is exquisite, reasonable design, beautiful shape, reliable quality, simple operation, less land occupation, labor saving, power saving, high yield, and oil quality is good, and so on. All technical indexes are leading in the same trade of the state-owned oil press. And the model of 6YZ-80 and 6YZ-100 are the new type products reformed by our factory engineers, which are the advanced equipment in the oilseeds processing machinery recently.
There are many good advantages of this equipment: simple structure, easy to use, adaptable, high oil rate, energy-saving, and low noise. This series of machinery can be widely used to more than 20 kinds of easy and difficult plant oilseeds, such as peanuts, soybeans, rapeseed, cottonseed, sesame, olives, sunflowers, coconut, cocoa, seeds and so on. During pressing, it can be entirely squeezed one-time(except for some individual varieties).
The process of pressing oil is filtered by vacuum, so the residue of the oil is rather little and ensures the hygiene degree of pure oil. Our company also produces the equipment of drum-express hydraulic oil, six to eight kilograms of raw materials only need six to ten minutes from raw materials into the machine to oil, which has been received good comments by customers. Additionally, we produce granule selected machines, automatic speculation seed machine, automatic oil filter, and electric control machines, etc. to equip with a variety of oil processing machines available for you to choose from.
Technical parameter:
|
model Technical parameter |
6YZ-80(1685) |
6YZ-100(1688) |
6YZ-150(d1698) |
|
|
Diameter of worm section |
80mm |
100mm |
150mm |
|
Rotary speed of worm section |
50-60rounds/min |
40rounds/min |
45 rounds/min |
|
Diameter of inscribed circle of press boring |
82mm |
102mm |
152mm |
|
|
Equipped force |
Main frame |
Y132-6-5.5KW |
Y132M6-7.5KW |
Y160L-4 -15KW |
Vacuum pump |
Y80-4-0.55KW |
Y801-4-1.1KW |
Y905-4- 1.1KW |
|
heater |
3KW |
3.5KW |
6KW |
|
Capacity (kg/h) |
80-150kg/h |
150-250kg/h |
230-500kg/h |
|
Weight (kg) |
780kg |
1100kg |
1800kg |
|
Overall dimension(L*W*H) |
1800*1300*1750 |
1980*1450*1800 |
2300*1700*1800 |
|
