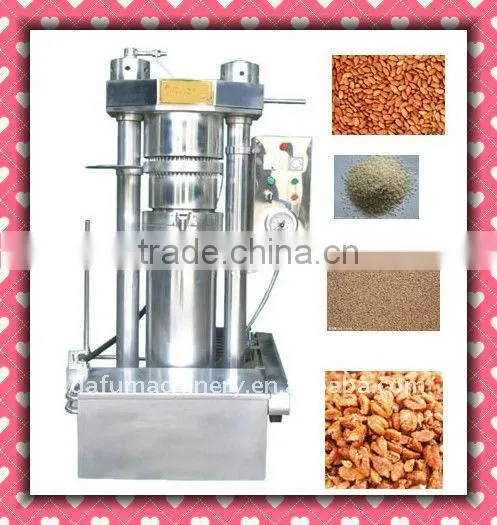

Help Center2014 Best Quality Hydraulic Oil Press
Related Products
-
High Yield Olive Oil Press MachineUS$ 3,000 - 8,000MOQ: 1 Set -
Professional Design Screw Oil Presser With Raw Materials and Cooked MaterialsNegotiableMOQ: 1 Set
-
New Type Multifunction Screw Palm Oil RefineryUS$ 2,000 - 8,000MOQ: 1 Set
-
Screw Oil Extruder NEW TYPENegotiableMOQ: 1 Set
-
Household Hydraulic Oil Extruction for Eating With Wide UsageUS$ 1,000 - 8,000MOQ: 1 Set
Specifications
Oil Press is easy to press the plant seeds into oil ,and it has a high oil press rate.The capacity can meet your need.Oil Press Structure:
This Oil Press mainly includes three parts:
- main engine 2. hydraulic system 3.electrical system
The following is the specific introduction of main engine:
Main engine includes base,upright,top plate,oil drip pan,nut and etc which is one of the main parts. When the oil material is put into the assemly of the press boring, then it being drived up by the oil cylinder piston ,oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage
|
Models
|
6YZ-180 |
6YZ-230 |
6YZ-320 |
|
External Dimension(mm) |
800*650*1100 |
900*750*1400 |
1100*1000*1500 |
Weight of machine |
530kg |
880kg |
1320kg |
Nominal pressure |
1600KN |
2200KN |
3000KN |
|
Max pressure for working |
55Mpa |
55Mpa |
55Mpa |
Power of electricity heating circle |
1KW |
1KW |
2KW |
Controlling temperature of heating circle |
70-100°C |
70-100°C |
70-100°C |
Sesame weight/time |
1-3kg |
2-7kg |
5-15kg |
Motor types and power(kw) |
Y901-4-1.5kw |
Y901-4-1.5kw |
Y901-4-1.5kw |
materials |
models |
time period/time |
weight/time |
output /10 hour |
oil ratio |
|
sesame |
type 180 |
5-8 minutes |
1-3kg |
150-300kg |
42%--52% |
type 230 |
4-6minutes |
2-7.5kg |
450-750kg |
||
type 320 |
8-10minutes |
5-15kg |
800-1200kg |
||
|
almond |
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
40%-45% |
type 230 |
4-6minutes |
2-6kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
||
|
walnut meat
|
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
50%-60% |
type 230 |
4-6minutes |
2-6kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
||
|
pine nut |
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
45%-60% |
type 230 |
4-6minutes |
2-7kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
