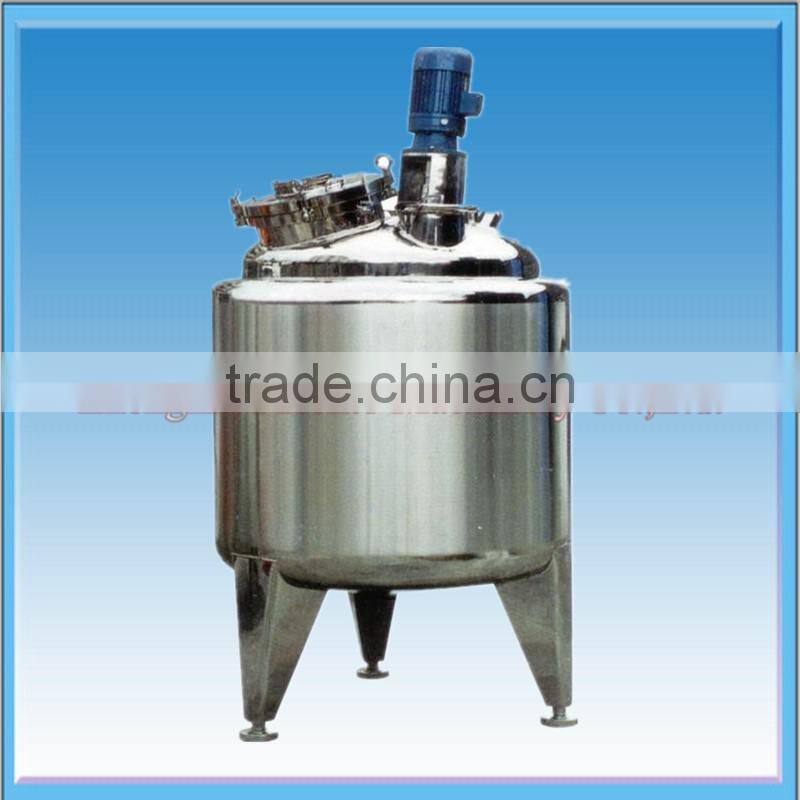

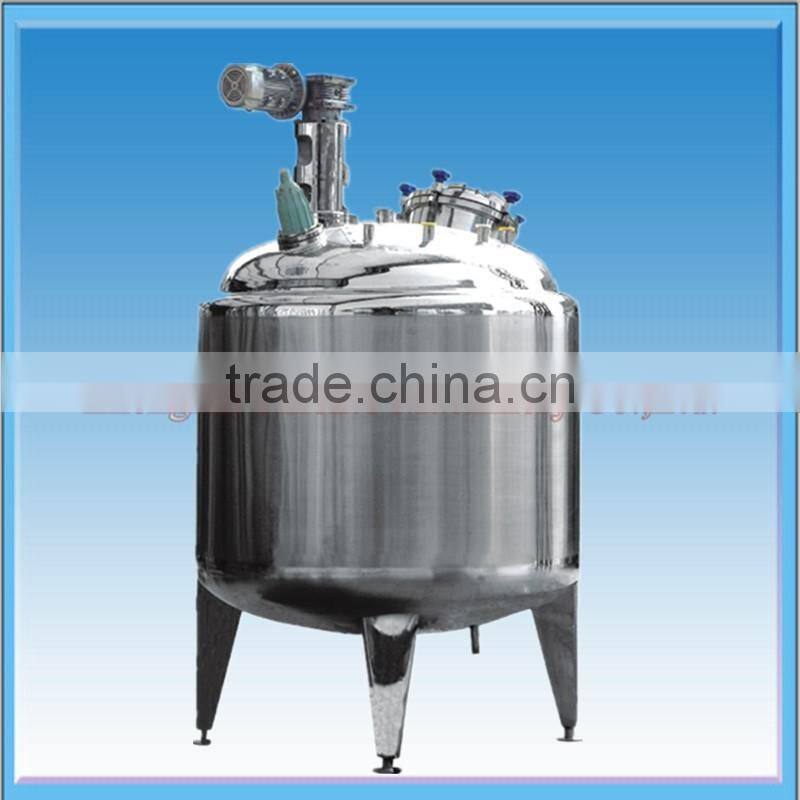

The Best Selling Stainless Steel Mixing Tank
1.Machine introduction
The valve material: ensure liquor from pollution, because the material 316 valve type diaphragm valve designated by the buyer. The manufacturer: wenzhou longtzer.The valve structure for combined
Mixing: mixing tank adopts the material 316. Mixing blade with shear type mixing blade.
4) clean mouth: for 316 material diameter of 150 mm manhole. Manufacturers: wenzhou longtzer. Liquid feeding mouth. Dn25 quick answer.
5 material pump: brand: suzhou MD no shaft seal magnetic resistance to acid and alkali pump models: MD - 15 r. 26 w voltage 220 v. Pump head material teflon. Flow rate of 400 litres per hour
6 filters: brand shenzhen &poor's membrane. Filter material PTFE. The primary filter. 0.45 microns upperfilters 0.22 microns. Filter shell material 316. Filter size 68 mm diameter. The length is 248 mm. The air filter accuracy of 0.22 microns. Filter shell size 280 mm. 150 mm * 108 mm air filter DN76MM *. The manufacturer of wenzhou longtzer filters keep upright
7. Side plus lens with the box of tank volume calibration. Plate and frame lens height of 500 mm. 80 mm wide. The scale range 15-100 litres. Minimum scale dividing 0.5 litres. Match DN80LED with lamp lens
8. All piping. Filters are fast mode of convenient disassembly cleaning. The silicone hose length 2.5 meters diameter DN13MM. Double fast loading material 316. Factory: wenzhou longtzer
9. Electrical configuration. Electricity box and agitation tank integral installation, for the anti-explosion electrical box. Three wire connector type power cord is 1.5 meters
2.Technical parameters
Model |
HTO-JBG100 |
Medium Type |
mixing tank |
Power |
Ac110v-240v/50/60hz |
Machine Power |
700w |
Working Voltage |
Ac220v/60hz |
Packing Size |
1700*600*1400mm |
Weight |
70kg/46kg |
3.Contact information
If you need further information, please contact us freely, we will do our best to cooperate with you.
