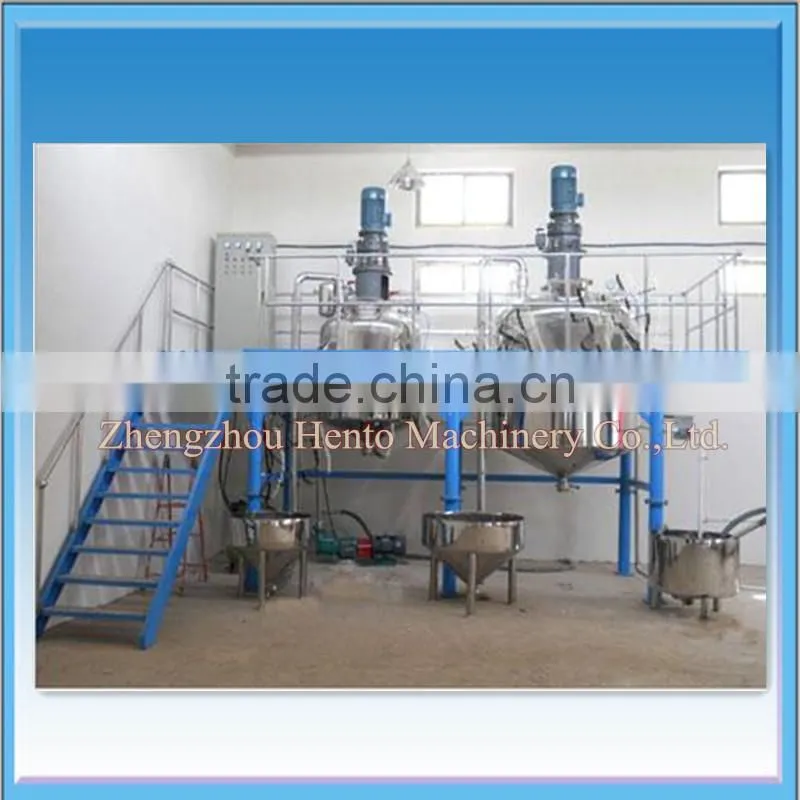

Small Scale Paint Production Plant Line
1. Machine Introduction:
1) Coating equipment can independently emulsification, dispersion, grinding, refining, cooling, filtering, vacuum suction automatic and semi-automatic filling process.Pulping and paint in the same tank.The complete sets of equipment as well as production of water-based paint coating, also can produce the paint.
2) Coating equipment using liquid meter measurement, high shear emulsifying dispersion, vacuum, vacuum defoaming, semi-automatic filling process, from feeding to finish the procedure.Coating equipment specially designed composite emulsion head structure, to ensure that the materials processed in the condition of high, medium and low various viscosity no dead Angle;Outside the reactor dynamic mixing and reactor for combining static mixed guarantee high dispersion of pigments and high viscosity resin and mix.Special vacuum design, guarantee the production under the vacuum state, which can realize automatic vacuum process, reduce the labor intensity.The complete configuration, without the user don't with other auxiliary equipment production just by turning on the power supply.Inside the kettle high shear and outside the kettle high shear pulverization function at the same time, guarantee the further refinement of material, and shorten the operation time.
2. Machine Parameters:
number |
name |
HTO-TLS-A |
HTO-TLS-B |
HTO-TLS-C |
HTO-TLS-D |
note |
||||
specification |
number |
specification |
number |
specification |
number |
specification |
number |
1.All parts contacting materialis stainless steel,pipe line with polished stainless steel tube andquick joint health level;Workbench surface cladding aluminum checkered plate;If the mechanical seal,with explosion-proof motor, electric price increases. 2.Type A complete sets of equipment installed capacity of 27.2 KW, according to the size of pack 3 m x 3 m x 3.5 m 3.B complete sets of equipment installed capacity of 40.2 KW, according to pack size 5 m x 3 m x 3 m 4. Type C complete sets of equipment installed capacity of 47.7 KW, according to theloading size 7.2 m * 2.8 m * 2.8 m ofequipment installed capacityof 70 kw, according to the loading size 9.5 m * 2.8 m * 2.8 m |
||
1 |
Electrical control system |
assembly |
1 |
assembly |
1 |
assembly |
1 |
assembly |
1 |
|
2 |
Stainless steel emulsion paint cans |
700L |
1 |
700L |
1 |
700L |
1 |
700L |
1 |
|
3 |
Low speed mixer (1) |
4KW |
1 |
4KW |
1 |
4KW |
1 |
4KW |
1 |
|
4 |
intermittent high shear mixing emulsifying machine |
7.5KW |
1 |
7.5KW |
1 |
7.5KW |
1 |
7.5KW |
1 |
|
5 |
High-speed dispersion machine |
|
|
7.5KW |
1 |
7.5KW |
1 |
7.5KW |
1 |
|
6 |
Stainless steel paint mixing tank 1 |
|
|
1000L |
1 |
1000L |
1 |
1000L |
1 |
|
7 |
Low speed mixer (2) |
|
|
5.5KW |
1 |
5.5KW |
1 |
5.5KW |
1 |
|
8 |
Stainless steel paint mixing tank 2 |
|
|
|
|
1000L |
1 |
1000L |
1 |
|
9 |
Low speed mixer (3) |
|
|
|
|
5.5KW |
1 |
5.5KW |
1 |
|
10 |
Stainless steel adjustable pain t cans. 3 |
|
|
|
|
|
|
1000L |
1 |
|
11 |
Low speed mixer (4) |
|
|
|
|
|
|
5.5KW |
1 |
|
12 |
Static mixer |
|
1 |
|
1 |
|
1 |
|
1 |
|
13 |
In-line mulser |
7.5KW |
1 |
7.5KW |
1 |
7.5KW |
1 |
22KW |
1 |
|
14 |
Bag filter |
|
2 |
|
2 |
|
2 |
|
2 |
|
15 |
Vacuum pump |
2SK-0.8 |
1 |
2SK-0.8 |
1 |
2SK-0.8 |
1 |
2SK-0.8 |
1 |
|
16 |
The vacuum buffer tank |
|||||||||
|
||||||||||
3. Contact Information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
