Specifications
1:factory directly selling2:stable running
3:large capacity and high efficiency
Introduction:
Widely used in paper mill,particle board factory,biomass power station,medium and high-density board factory and so on,The main material can be slab,veneer,cotton stalk,and many kinds of crop straw.

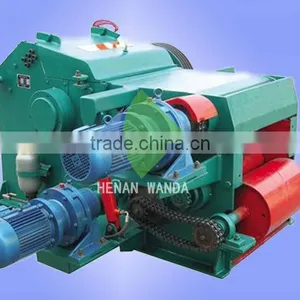

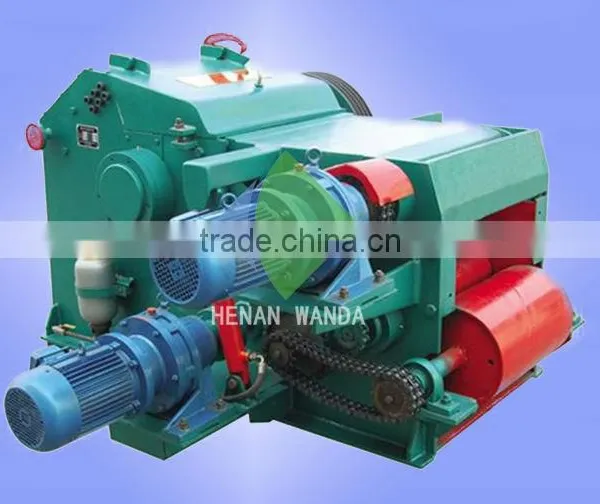

The drum chipper is improved on the original wood chipper,and the cutting and crushing raw material rate is more than 95%.The machine structure is rational,with features of high-capacity,easy-opeartion,wide-application,high-quality and convenient-maintenance,It is the more advanced slab cutting and crushing machine at present
Main data
Model |
BX215 |
BX216 |
BX218 |
BX2113(NEW) |
BX218D(NEW) |
Feeding inlet size(mm) |
440x180 |
540x270 |
720x430 |
450x700 |
770x340 |
Quality of blades(pic) |
2 |
2 |
2 |
3 |
2 |
Speed of roller(r/min) |
592 |
590 |
650 |
500 |
650 |
The maximum diamater of row material(mm) |
160 |
230 |
300 |
450 |
300 |
Length of final chips(mm) |
30 |
30 |
30 |
38 |
30 |
Capacity(ton) |
4-6 |
7-9 |
12-15 |
15-30 |
15-20 |
Main power(kw) |
45 |
55 |
110 |
200-250 |
132 |
|
Feed roller power (kw) |
2.2-3 |
3-4 |
4-5 |
7.5 |
4-5.5 |
Oil pump power(kw) |
1.5x1 |
1.5x1 |
1.5x1 |
3x1 |
1.5x1 |
Weight(kg) |
3000 |
4170 |
7300 |
7600 |
7800 |
Dimension(mm) |
1540*1240*1020 |
1980*1950*1250 |
2670*2150*1500 |
2870*2250*1550 |
2670*2250*1500 |
Conveyor power(kw) |
3 |
3 |
3-4 |
3-4 |
3-4 |
Send Inquiry to This Supplier
