Specifications
palm kernel cracker :1.full- automatic
2.good quality
3.99% palm shell rate
WANDA Brand palm kenel shell machine

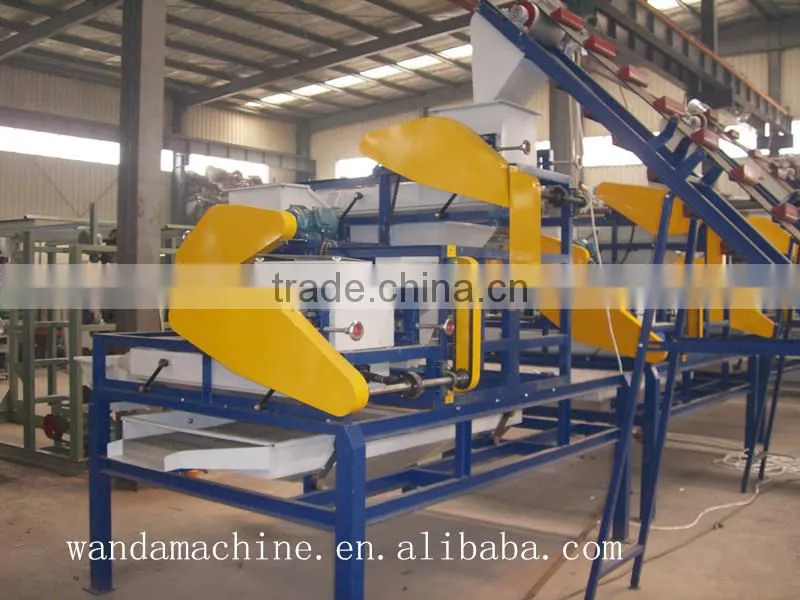

Hard shell palm kernel cracking machine and the seprator machine
I: the purpose and the working element
1, This machine professional use for broken the hard shell ,like the apricot and filbert, almonds, hazel nuts, peach pit nuts, palm nuts ,etc
2, To change the distance between the rollers of this machine ,can broken the different size shell of the nuts products
3, Because the size of the shell is different, so it is better to broken the big size , then broken the smaller size .
II: The structure and the capability

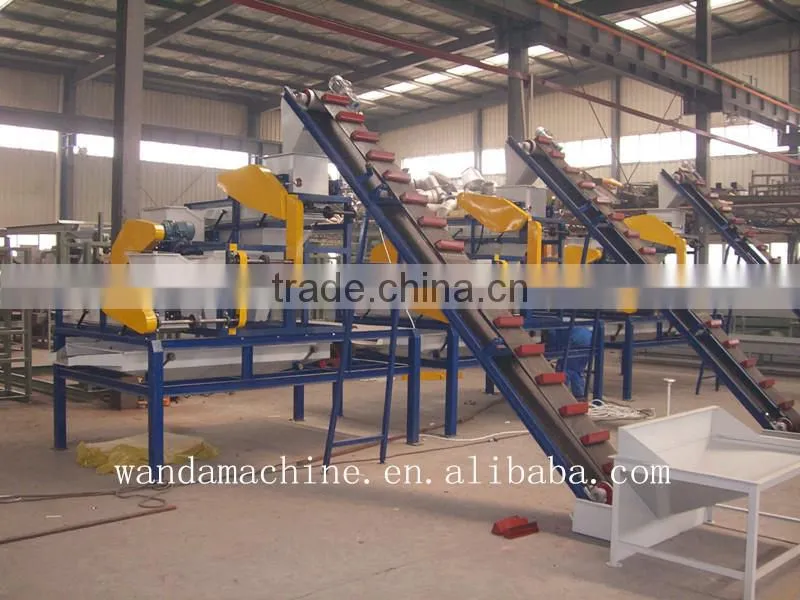

This machine consist of the feeding , the conveyor, the rollers ,the cracking machine . use the belt to run .
III: The detail information
1, Dimension:3200×2100×2600(length*width*height)
2, Power:6.75KW/380v/50Hz
Small size power: 2.2kw /380v /50hz
VI: The manual book
Before use this machine , should check the products size ,then adjust the distance between the rollers ,make three different level , the roller distance should be less than the shell about 1-1.5mm .
1, After the roller distance is adjust ,can running the machine ,the flowchart of running the machine is : the shaking machine ---the third class roller ---the second class roller ---the first class roller ---the conveyer –the feeding ..
2, First feeding should be a little ,check the roller first ,if the seeds broken more ,should stop the machine and adjust the roller again .until the machine running good .
3, If need to stop the machine ,should stop the motor first ,then is conveyer ,the first class roller ,the second class roller ,the third class roller ,the last is stop the shaking machine .
V: Attention
1, In the working time ,the conveyer is easily run a wrong way ,so please check it and change the screw in time .
2, Should add the lubricant on the belt ,bearing ,and check the screw on time .
Technical parameters:
Cracker machine:
Model: TK-01
Capacity: 800-1000kg/hour
Power: 380v/6.75kw
Cracking rate: >95%
Broken rate: <1%
Main machine dimensions: 3100*2000*2150mm
Elevator dimensions: 4650*500*400mm
Barrel dimensions: 1000*1000*1000mm
Total weight: 1900kg
Separating machine:
Model: FL-01
Capacity: 200-300kg/hour
Power: 2.2kw
Separating rate: >98%
Dimensions: 1970*920*1350mm
Weight: 230kg
shell and kernel separator machine:
The effect of the shell
my contract information:
