Specifications
1.High capacity2.High profit and low cost
3.Environment friendly
4.Compact and durable
Introduction:
Chipper can be logs, branches, slab, waste veneer, bamboo, cotton stalk and other non-wood fiber stems cutting into a certain specifications of the material, as at least planer machine consists of frame, knife roller, upper and lower feed roller flower plate, fiber board, wood particle board and pulp and paper, the basic raw material, advanced machine structure, cutting blade material quality, raw material, wide adaptability, convenient operation and maintenance. , conveyor belts, hydraulic system parts.
Stand by Gao Qiang plates welded together, is the basis of the whole machine supporting; Two fly knife knife roller is installed on, made of special bolts, through pressure, fly knife is fixed on the knife roller; According to be cutting raw materials of different thickness, the feeding roller assembly can use hydraulic system in a certain range floating up and down; Cutting down the qualified material drop through net mesh, is at the bottom of the discharge, large pieces of material will be cutting inside the machine again.
Main dta:
Model |
BX215 |
BX216 |
BX218 |
BX2113 |
BX218D |
feeding inlet sie(mm) |
440×180 |
540×270 |
720×340 |
450×700 |
770×340 |
quanitiy of blades(pic) |
2 |
2 |
2 |
3 |
2 |
speed of roller(r/mn) |
592 |
590 |
650 |
500 |
650 |
the max diameter of raw material (mm) |
160 |
230 |
300 |
450 |
300 |
length of final chips(mm) |
30 |
30 |
30 |
38 |
30 |
ca[acity(t) |
4-6 |
7-9 |
12-15 |
15-30 |
15-20 |
main power(kw) |
45 |
55 |
110 |
200-250 |
132 |
feed roller power(kw) |
1.1*2 |
3*2 |
4*2 |
7.5*2 |
4*2 |
oil pump power(kw) |
1.5×1 |
1.5×1 |
1.5×1 |
3×1 |
1.5×1 |
weight(kg) |
3000 |
4170 |
7300 |
7600 |
7800 |
dimension(mm) |
1540×1240×1020 |
1980×1950×1250 |
2670×2150×1500 |
2870×2250×1550 |
2670×2250×1500 |
conveyor power(kw) |
3 |
3 |
3-4 |
3-4 |
3-4 |
Raw materials:

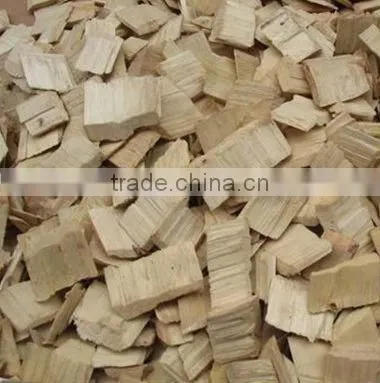

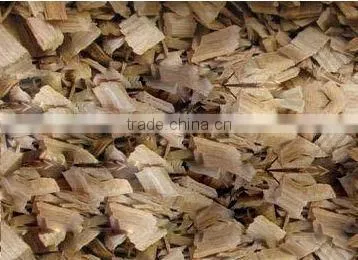

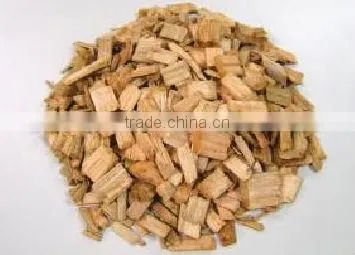

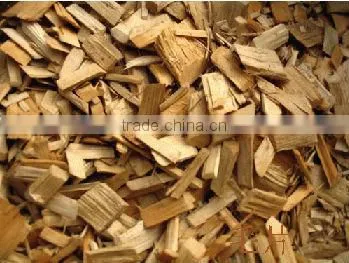

finished product:
