Automatic Laundry Soap Machine / Laundry Soap Bar Machine

  Automatic Laundry Soap Machine / Laundry Soap Bar Machine

This  soap production line regard soap noodles as raw materials or palm oil .The production starts with mixing soap noodles or palm oil . Then the mixed soap noodles enters in the three  roller mill by conveyor belt, where soap thin sheets are made. The soap thin sheet then converted into desired long strip soap by the plodder machine.Then the long strip soap are cut into the soap bars required size by cutting machine(there are two kinds of cutting machine.One is mechanical.The other is automatic).Finally, the soap bars gets packed by packing machine if needed.

Product description of soap making machines :

1. This system can continuously produce laundry soap, compound soap, industrial soap and others;

2. The production line is mainly consisting of oil refining, saponification, vacuum drying and extrusion;

3. Only when the crystal form of soap is tiny, the soap become fine and smooth. The vacuum drying system can make the soap to form tiny and compact crystal texture which is mainly in the shape of β base;

4. When you produce fatty acid products( laundry soap, compound soap and industrial soap), the fatty acid content is usually 49%, the vacuum degree of the system is about of 740 mmHg, the temperature of soap base is 85 ⁰C, vacuum dewatering is about 4%, you can take 53% fatty acid.

Material needed and consumption:

Oil or fat of plant or animal (palm oil, coconut oil, tallow oil, etc.), caustic soda (NaOH), sodium-chloride (NaCl), sodium silicate, pigment, etc.

Production process:

Mix and melt oil --> Saponification --> Vacuum drying --> Soap noodle --> Grinding --> Vacuum Plodder (extruding) --> Cutting.

Main Machines involved for soap making machines:

          This production  line mainly contains :

            1. saponification equipment,

            2. drying plant,

            3. double sigema mixer,(Used for mixing soap noodles.)

           4. refiner, Three roller mill, (Used for grinding soap noodles into thin sheets. )

           5. duplex vacuum plodder(Extruder) Machine ( Used for molding the sheets into long strip soap of required shape. )

            6. water chiller,

            7. electronic cutter,( Used for cutting the long strip soap into soap bar that is desired size )

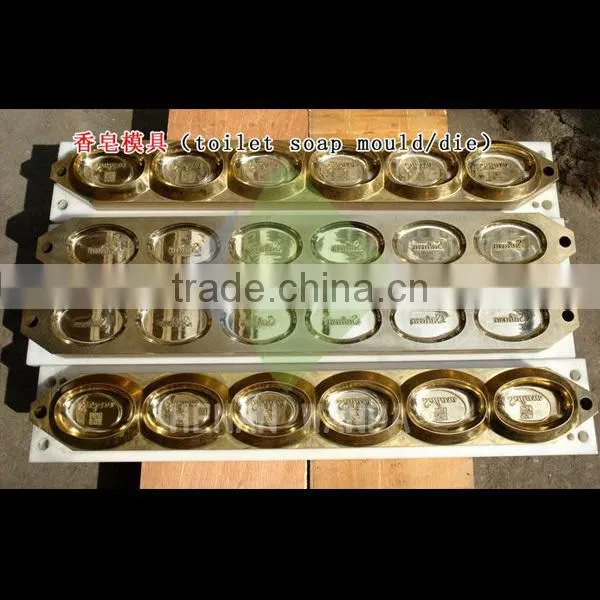

            8. stamping machine,

            9. freezer,

            10.belt conveyors,

            11. electric control panel etc.

Available complete set of  soap making machine:

1)capacity: 100—500KG/Hour

2)capacity: 600—1000KG/Hour

3)capacity: 1200—1500KG/Hour

4)capacity: 1500—2000KG/Hour

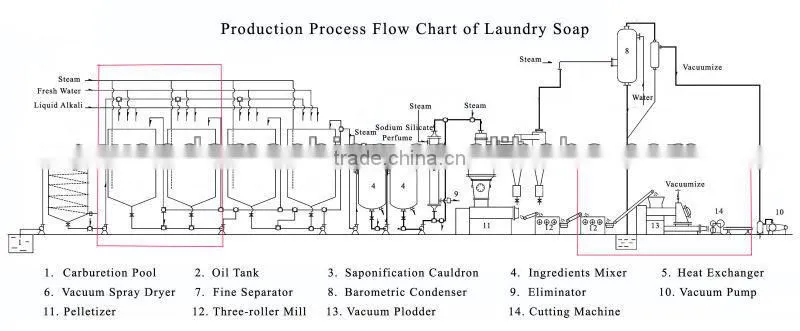

Production Process Flow:

As many years experiences of soap making machines,we can provide soap making machine according to each buyer's special requirements.For more information about our machine,please

Pictures Display:

If u are interested in our machine ,pls enquiry us ,we will try our best to satisfy ur need.

We will offer the professional training and engineers are also available to serve overseas.

Service:

1. We provide manufacturing techniques, be responsible for installation, commissioning guide, and staff training.

2. Customization is accepted, such as the size, weight, printed pattern, etc.

3. We also guarantee 1 year for quality, except for improper operation.
