2016 Modern Restaurant Commercial Lemon Fruit Juicer
Usage and application of the juicer:
For pressing pineapple, tomato, apple and pear fruit and vegetable juice etc.
Technical parameters of the juicer:
|
Model
|
LZ-0.5 |
LZ-1.5 |
LZ-2.5 |
Capacity |
500Kg/hr |
1500Kg/hr |
2500Kg/hr
|
Diameter of the screw (mm) |
Φ87.5mm |
Φ175mm |
Φ250mm
|
Diameter of the filter mesh |
0.6mm |
0.6mm |
0.6mm
|
Power (kw) |
1.5Kw |
4Kw |
11Kw |
Spindle speed (rpm/min) |
400rpm |
400rpm |
400rpm |
Weight (kgs) |
100Kg |
240Kg |
480Kg |
Size (mm) |
1100×265×920 |
1560×450×1340 |
1980×680×1620 |
Structure of the juicer:
This juicer are consist of :former supporting bar,feed hopper,spiral,filter mesh, juicer holding
device,back supporting bar,Slag notch ect.
Working principle of the juicer:
The main component of this equipment is a spiral slag outlet direction along the bottom diameter
increase gradually and the pitch decreases, when the material is the spiral propulsion, because
the spiral cavity volume reduction, squeeze the material.aw materials are added to the feed hopper,
compression screw propulsion, Sheng juice is squeezed juice through the filter into the bottom
of the annular gap is formed between the tapered portion, and waste through the spiral and
regulating the discharge, mobile pressure head along the axial adjustable pore size. For the
clockwise (equipment from the slag notch to the feed hopper end rotates the handwheel shaft
bearing seat, adjustable head to the left, and vice versa, voids and narrow gap larger.) Change
of pore size, adjust the slag resistance. You can change the slag rate, but if the gap is too small,
in strong extrusion, part of slag particles and juice together through the filtering net is squeezed
out, although the juice increased, but the juice quality relative decline, the void size should be
required depending on the user specific process .

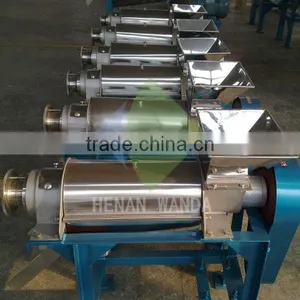

pictures of the juicer:
Why choice us:
1)Keep the quality first
2)Make more products benifits to costomer's need
2.Online/sale service
1)Super and solid quality
2)Fast and punctual delivery
3)Standard export package or as customer's need
3.After-sale service
1)Assistance to build factory or your project
2)Repairing and maintenance if any problem occur in the warranty
3)Installation and clerks training
4)Spare and wearing parts for free or with big discount
5)Any feedback of machines can be told us, and we will try our best to support you
4.Other cooperation service
1)Technology knowledge share
2)Factory building advising
3)Business expansion advising
