High Quality Insulation Mullite Brick

High Quality Insulation Mullite Brick thumbnail-1
High Quality Insulation Mullite Brick thumbnail-2
High Quality Insulation Mullite Brick thumbnail-3
High Quality Insulation Mullite Brick thumbnail-4
High Quality Insulation Mullite Brick thumbnail-5
High Quality Insulation Mullite Brick thumbnail-6
High Quality Insulation Mullite Brick photo-1
High Quality Insulation Mullite Brick photo-2
High Quality Insulation Mullite Brick photo-3
High Quality Insulation Mullite Brick photo-4
High Quality Insulation Mullite Brick photo-5
High Quality Insulation Mullite Brick photo-6
US$ 99 - 800 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Shape:
Brick
Material:
Mullite
Contact Supplier Request Quote Chat Now
Hebei Color Season Metals And Minerals Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang of Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Shape Brick
Material Mullite
SiO2 Content (%) 20-50
Al2O3 Content (%) ≥48
MgO Content (%) 0-0.2
CaO Content (%) 0-0.2
CrO Content (%) 0-0.2
SiC Content (%) 0-0.2
Model Number VMC-20,VMC-23
Brand Name VMC

Specifications

Low thermal conductivity
High purity and low iron content
high-grade refractory powder
machining, cutting and grinding

High Quality Insulation Mullite Brick

High Quality Insulation Mullite Brick



High Quality Insulation Mullite Brick

High Quality Insulation Mullite Brick

High Quality Insulation Mullite Brick

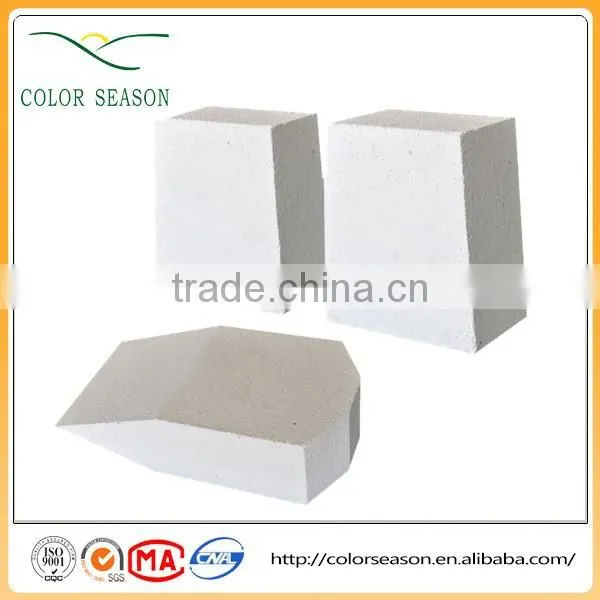

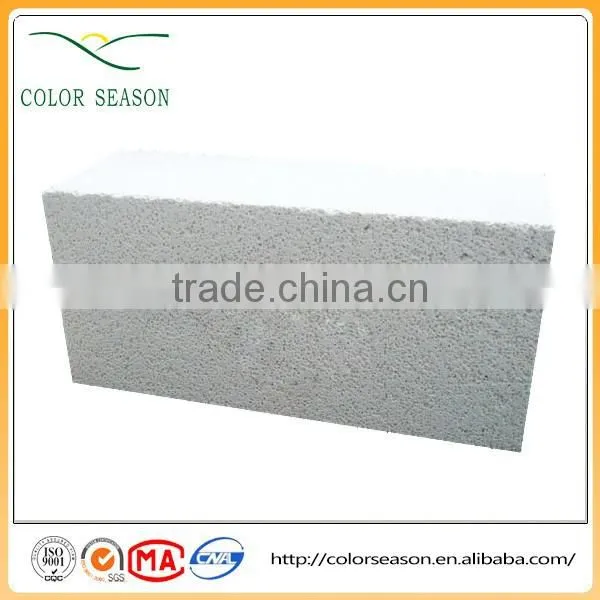

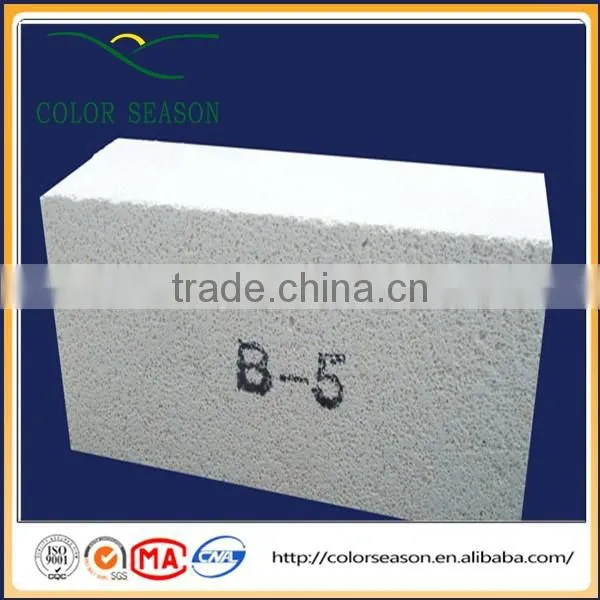

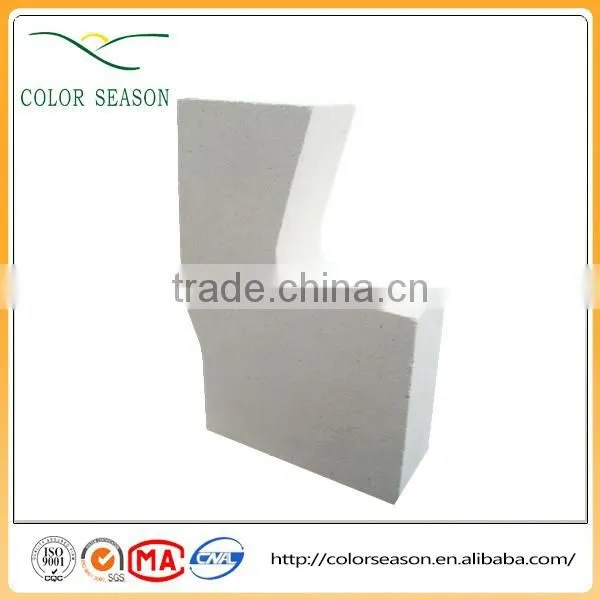

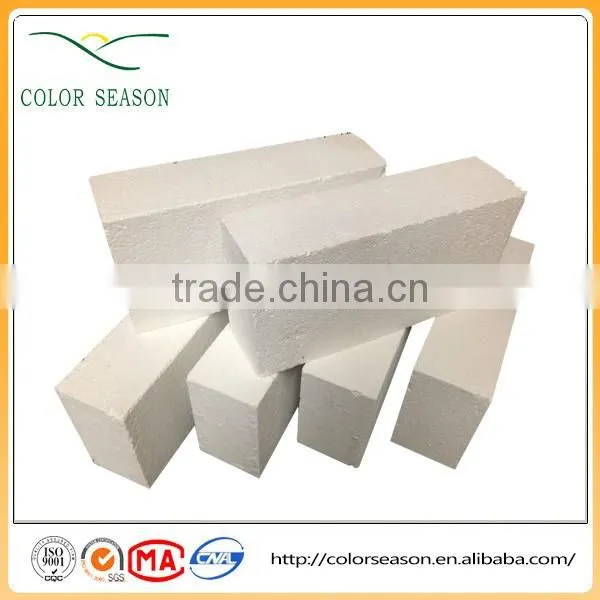

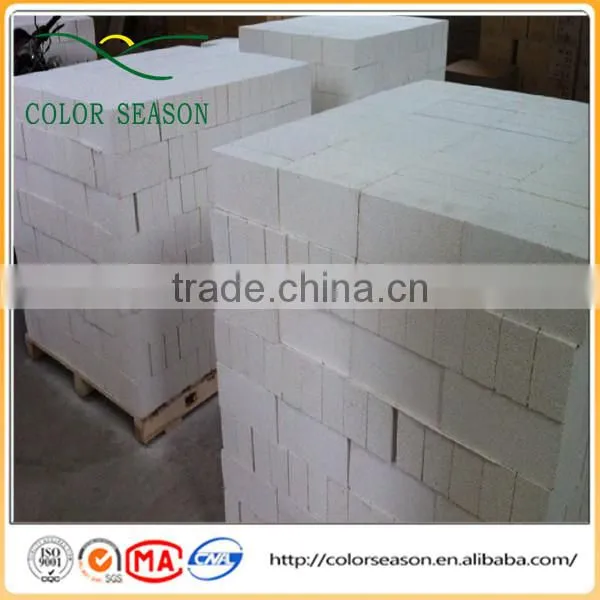

1)High Temperature Mullite Insulation Fire Brick is manufactured from high-grade refractory powder and materials in good purity, compressed in vacuum and sintered under high temperature.

It covers six temperature classes: 1300C, 1400C, 1500C, 1550C, 1600C, includes standard brick, special-shaped brick, and refractory mortar.

2)Used in various of industrial furnaces, such as metallurgy, construction, ceramic, machinery etc, for liner and backing,

such as cracking furnace, reforming furnace, heating equipment,

refining equipment, hot blast stove, heating furnace, soaking pit,

 thermal treatment furnace, resistance furnace, tunnel kiln, roller kiln,

shuttle kiln, immersion bell, glass furnace etc.

High Quality Insulation Mullite Brick



Brand

VMC-48

VMC-49

VMC-50

VMC-55

VMC-57

VMC-57

VMC-60

VMC-67

Bulk density g/cm3  ≤

0.6

0.8

1

0.6

0.8

1

1

1.2

Cold Crushing    strength Mpa ≥

1.5

2.5

4.2

1.5

3.2

4

4

5

Thermal stability 1100°C (air colling)

10

20

20

10

20

20

20

20

Reheating linear  change ≤  1% (°Cxh)

1300x12

1300x12

1300x12

1400x12

1400x12

1400x12

1500x12

1500x12

Thermal conductivity 350±25° (W/m.k)  ≤

0.2

0.23

0.33

0.2

0.25

0.33

0.35

0.4

Al2O3 % ≥

48

49

50

55

57

57

60

67

Fe2O3 % ≥

0.9

0.9

0.9

0.8

0.8

0.8

0.7

0.6



 High Quality Insulation Mullite Brick

*High strength and resistance to corrosion,

*High temperature endurance and stability,

*High corundum content;

*Excellent thermal shock resistance,

*Low heat capacity,

*Low content of impurities,

*Have the least contamination to glass liquid.

High Quality Insulation Mullite Brick

   High Quality Insulation Mullite Brick High Quality Insulation Mullite Brick

   High Quality Insulation Mullite Brick High Quality Insulation Mullite Brick

High Quality Insulation Mullite Brick

High Quality Insulation Mullite BrickHigh Quality Insulation Mullite Brick

High Quality Insulation Mullite Brick
