PP,PE,PVC,PVDF Materials Plastic Teller Rosette Ring With High Quality
Introduction

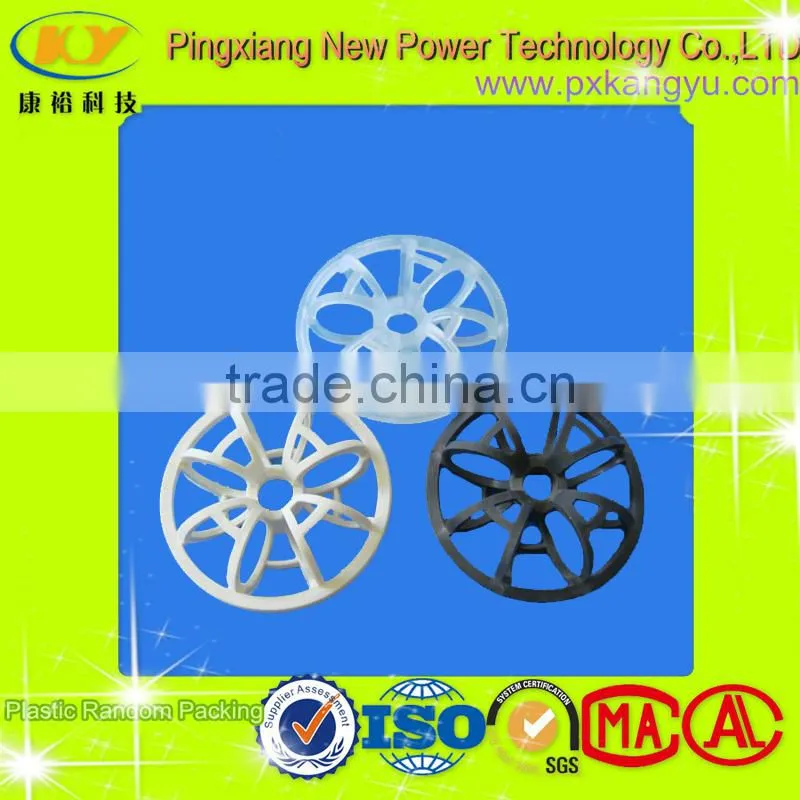

Plastic Teller Rosette Ring is made up of twelve radial arranged small rings. It is also an economical and versatile industry standard with well known performance characteristics
Introduction
Plastic Rosette Ring Plastic is made up of twelve radial arranged small rings. It is also an economical and versatile industry standard with well known performance characteristics
Features
1. Big void ratio, hard to block, huge flux and litte resistance.
2.The liquid detents in the gap with the result that the liquid in the tower holds back longer.
3.It prolongs the contacting period of gas and liquid and improves efficiency.
Application:
It has been used as packing of high corrosion resistance and low pressure drop with extensive application for Gas Absorber, Cooling Tower ,Deaerator , Reactor and other gas-liquid contact systems. Various data on equilibrium, design and materials based on a long experience in using the packing are available on request
Technical data
Spec. |
D*H*T(mm) |
Number per m³ |
Bulk density (Kg/m³) |
Surface area (m²/m³) |
Free volume (%) |
Dg25(5-ring) |
25*9*(1.5*2) |
170000 |
90 |
195 |
82 |
Dg47(9-ring) |
47*19*(3*3) |
32500 |
111 |
185 |
88 |
Dg51(9-ring) |
51*19*(3*3) |
23500 |
103 |
180 |
98 |
Dg59(12-ring) |
59*19*(3*3) |
17500 |
72 |
150 |
92 |
Dg73(12-ring) |
73*28*(3*4) |
8000 |
80 |
127 |
89 |
Dg95(18-ring) |
95*37*(3*6) |
3900 |
78 |
94 |
90 |
Dg145(20-ring) |
145*48*(3*6) |
1100 |
48 |
65 |
95 |
Note: The above data are reference to material PP.
We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.
Grace Zhang
Whatsapp/TEL:008613767885030
QQ: 84781705
Skype: yakegrace
Wechat: xz9426
TM: cn1000900349
Q: What is your MOQ?
A: Our product MOQ is 1000kg&1m³
Q: What is the delievery time?
A: It takes aroud 10-15days for one 20" container.
Q: What is the shipping port?
A: Shanghai,Shenzhen,Qingdao.
Q: What is payment terms?
A: T/T,L/C, West Union.
Q: What information should I offer to you if I want to know the price?
A: Appication/usage,Size,Material,Quantity,Package term,Delievery time,Payment term,Destination.
Q: What is your warranty?
A: By National Standard GBT 10504-2008, Offer lifetime consultation on problems occurred.
Why choose products from KANGYU ?
1. Specialize in this field for more than 10 years.
2. More than 1000 workers, Strong ability of production.
3. Shorter delivery time.
4. Rich variety of products:molecular sieve,random and structured chemical packing in ceramic,plastic&metal honeycomb ceramics,inert ceramic balls,activated alumina,alumina grinding balls,expanded perlite,porous ceramic filter pipe and so on.
5. Competitive price,modern appearance.
6. Do any sticker you need(OEM,ODM).
7. Going green and environmental protection:No mercury, No radition, No UV.
8. Honesty is the most important
We Specialized in Manufacturing molecular sieve, random and structured chemical packing in ceramic, plastic & metal, honeycomb ceramics, inert ceramic balls, activated alumina, alumina grinding balls, etc.
We has an annual manufacturing capacity of 5000 ton molecular sieves, 20000 m3 of varieties types of chemical packings, 3000 m3 of honeycomb ceramics and 5000 m3 of inert ceramic balls, 2000 ton activated alumina etc.
Welcome to our factory and negotiate business. We trust we will be your best supplier in China.
