Specifications
1 Professional Manufacturer of Metal Strucutred Packing.2 Material:SS304 304L 316 316L 410
3 ISO9001:2008

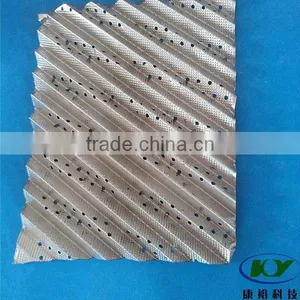

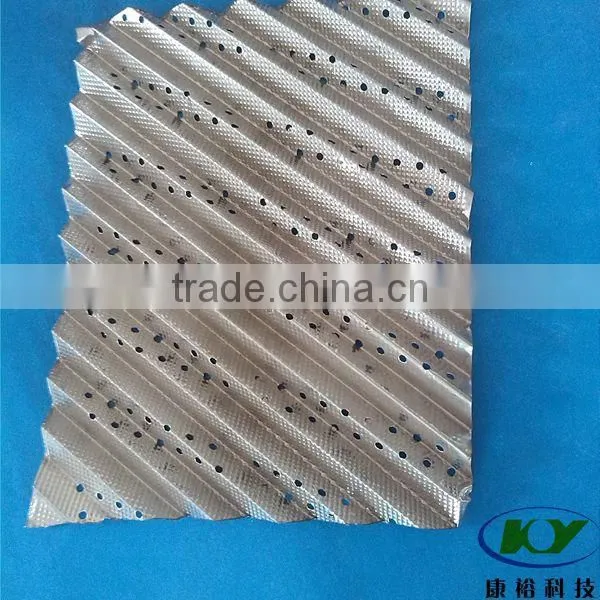

Metal Perforated Plate corrugated packing is made of perforated plate with channel corrugation on surface, and remains structure feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increases mass transfer efficiency.
Technical data
Model |
Specific surface |
Bulk density |
Void ratio |
Obl. |
P |
Theo. plate |
125Y |
125 |
100 |
98 |
450 |
200 |
1~1.2 |
250Y |
250 |
200 |
97 |
450 |
300 |
2~2.5 |
350Y |
350 |
280 |
94 |
450 |
350 |
3.5~4 |
500Y |
500 |
360 |
92 |
450 |
400 |
4~4.5 |
125X |
125 |
100 |
98 |
300 |
140 |
0.8~0.9 |
250X |
250 |
200 |
97 |
300 |
180 |
1.6~2 |
350X |
350 |
280 |
94 |
300 |
230 |
2.3~2.8 |
500X |
500 |
360 |
92 |
300 |
280 |
2.8~3.2 |
Material
Metal perforated plate corrugated packing is available in a wide range of materials, include stainless steels, 304, 316, 316L, Carbonsteels. Aluminium, copper bronze etc. Further materials available on request.
Application
Perforated plate corrugated packing with the wide range of applications.
Diameter: 0.1-12m;Pressure: Vacuum to high pressure;
Liquid lood: 0.2 to more than 300 m3/m2.h;
