Metal Saddle Clips
- 5000 Cubic Meter / Cubic Meters per Month
- SHENZHEN SHANGHAI
- T/T
Product Details
Place of Origin: | Jiangxi, China | Brand Name: | KANGYU | Model Number: | metal saddle ring |
Application: | Tower packing | Shape: | saddle | Material: | carbon steel, stainless steel |
Dimensions: | metal saddle clips | Chemical Composition: | metal |
Product Description

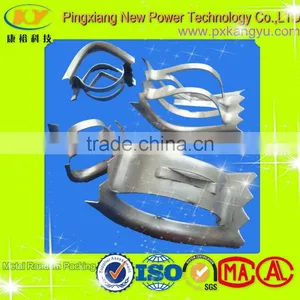

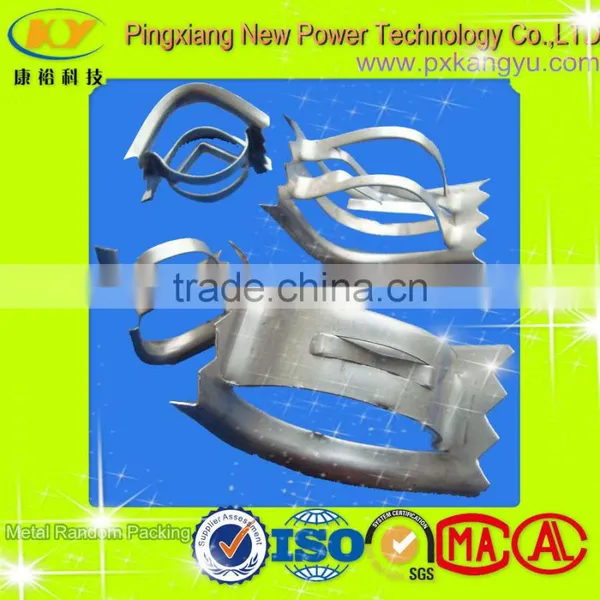

Metal Saddle Clips
Introduction
Metal Saddle Ring is made of materials like carbon steel, stainless steel or Aluminum alloy etcIt has features such thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive,decomposable,polymerizable or cokable systems,for these,Pingxiang Petrochemical metal tower packing is widely used in packing towers in petrochemical industry,chemical fertilizer industry and environmental protection etc...
Advantage
1. A versatile packing used in distillation, absorption and other operations.
2. Used in both deep vacuum and high pressure towers.
3. KANGYU metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter.
Technical data
Size | Thickness | Bulk density | Number | Free volume | Surface Area | Packing Factor |
15 | 0.25 | 280 | 347000 | 96.5 | 305 | 167 |
25 | 0.3 | 255 | 135000 | 96.8 | 241 | 135 |
40 | 0.4 | 231 | 50200 | 97.1 | 161 | 79 |
50 | 0.4 | 149 | 15000 | 98.1 | 104 | 59 |
60 | 0.4 | 142 | 8400 | 98.2 | 85 | 50 |
70 | 0.5 | 113 | 4600 | 98.6 | 62 | 39 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
