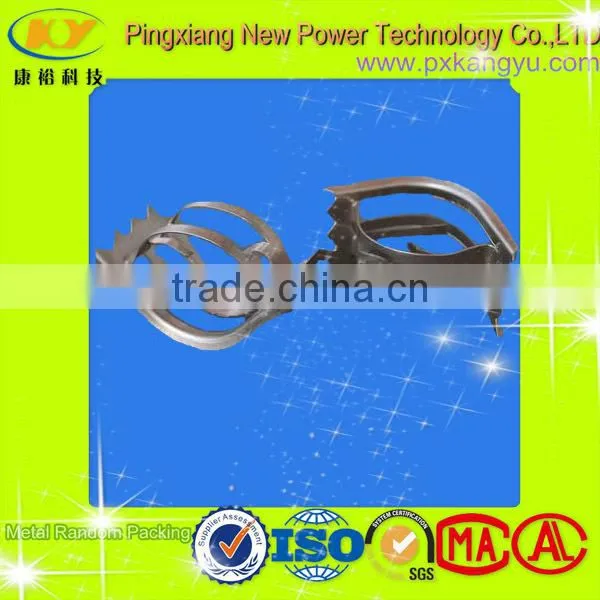

Metal Nutter Ring
Metal Nutter Ring is suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc..
Advantage
1. Improved efficiency due to lateral liquid diffusion and surface film renewal
2. Outstanding surface utilization in mass and heat transfer applications.
3. Shorter packed bed heights
4. Maximum piece-to-piece contact with minimal nesting
5. High strength to weight ratio allows up to a 15 metre bed height
6. Consistent performance due to uniform randomness
7. Free flowing particle design facilitates installation and removal via uniform
Technical data
Sizes |
Number |
Weight |
Surface area |
Free volume |
No.0.7 |
167 400 |
177 |
226 |
97.7 |
No.1.0 |
67 100 |
179 |
168 |
97.7 |
No.1.5 |
26 800 |
181 |
124 |
97.6 |
No.1.75 |
20 200 |
155 |
106 |
98 |
No.2.0 |
13 600 |
144 |
96 |
98.2 |
No.2.5 |
8 800 |
121 |
83 |
98.4 |
No.3.0 |
4 200 |
133 |
66 |
98.2 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown.
Other material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.
Grace Zhang
Whatsapp/TEL:008613767885030
QQ: 84781705
Skype: yakegrace
Wechat: xz9426
TM: cn1000900349
Q: What is your MOQ?
A: Our product MOQ is 1000kg&1m³
Q: What is the delievery time?
A: It takes aroud 10-15days for one 20" container.
Q: What is the shipping port?
A: Shanghai,Shenzhen,Qingdao.
Q: What is payment terms?
A: T/T,L/C, West Union.
Q: What information should I offer to you if I want to know the price?
A: Appication/usage,Size,Material,Quantity,Package term,Delievery time,Payment term,Destination.
Q: What is your warranty?
A: By National Standard GBT 10504-2008, Offer lifetime consultation on problems occurred.
Why choose products from KANGYU ?
1. Specialize in this field for more than 10 years.
2. More than 1000 workers, Strong ability of production.
3. Shorter delivery time.
4. Rich variety of products:molecular sieve,random and structured chemical packing in ceramic,plastic&metal honeycomb ceramics,inert ceramic balls,activated alumina,alumina grinding balls,expanded perlite,porous ceramic filter pipe and so on.
5. Competitive price,modern appearance.
6. Do any sticker you need(OEM,ODM).
7. Going green and environmental protection:No mercury, No radition, No UV.
8. Honesty is the most important
We Specialized in Manufacturing molecular sieve, random and structured chemical packing in ceramic, plastic & metal, honeycomb ceramics, inert ceramic balls, activated alumina, alumina grinding balls, etc.
We has an annual manufacturing capacity of 5000 ton molecular sieves, 20000 m3 of varieties types of chemical packings, 3000 m3 of honeycomb ceramics and 5000 m3 of inert ceramic balls, 2000 ton activated alumina etc.
Welcome to our factory and negotiate business. We trust we will be your best supplier in China.
