Specifications

1.used on vehicle
2.better air flow
3.less backpressure
4. high thermal shock resistance,high strength

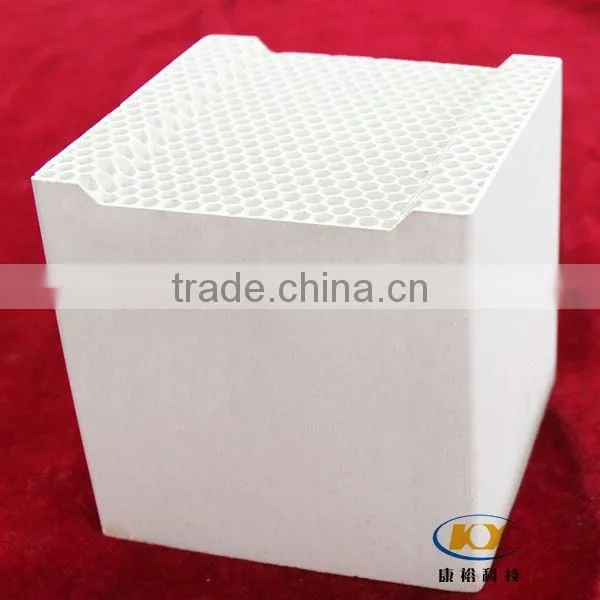

Honeycomb ceramic is a new developed porous industrial ceramic. As heat storage body, it has the properties of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellant thermal-shock resistance performance, realize quickly exchanging heat and reducing energy, widely used in the industrial field. The honeycomb ceramic as the heat exchange media is the key part for heat storaging HTAC ( High Temperature Air Combustion) technology. It is the best choice for RTO, heat exchanger and other environmental protection and energy saving products.

Specification:

Type	Channels&Dimensions(mm)	Specifications	English Units	Metric Units	Remarks
MJ?1	25*25 150*150*300	Width of Channels	0.193 in	4.9±0.1 mm	Also available with any length between 50mm-300mm
		Inner Walls	0.043 in	1.0±0.1 mm
		Specific surface area	164.6 ft2/ ft3	540 m2/m3
		Free cross section	67 %	67 %
MJ?2	40*40 150*150*300	Width of Channels	0.119in	3.0±0.1 mm	Also available with any length between 50mm-300mm
		Wall thickness	0.028 in	0.7±0.1 mm
		Specific surface area	251.5 ft2/ ft3	825 m2/m3
		Free cross section	64 %	64 %
MJ?3	43*43 150*150*300	Width of Channels	0.114 in	2.0±0.1 mm	Also available with any length between 50mm-300mm
		Wall thickness	0.020 in	0.5±0.1 mm
		Specific surface area	304.9 ft2/ ft3	1000 m2/m3
		Free cross section	72 %	72 %
MJ?4	50*50 150*150*300	Width of Channels	0.095 in	2.4±0.1 mm	Also available with any length between 50mm-300mm
		Wall thickness	0.024 in	0.6±0.1 mm
		Specific surface area	306.4 ft2/ ft3	1050 m2/m3
		Free cross section	63 %	63 %
MJ?5	60*60 150*150*300	Width of Channels	on request	on request	Also available with any length between 50mm-300mm
		Wall thickness	on request	on request
		Specific surface area	412.4 ft2/ ft3	1353 m2/m3
		Free cross section	72 %	72 %
MJ?6	35*35 150*150*300	Width of Channels	0.142 in	3.6±0.1 mm	Also available with any length between 50mm-300mm
		Wall thickness	0.020 in	0.5±0.1 mm
		Specific surface area	245.4 ft2/ ft3	805 m2/m3
		Free cross section	79 %	79 %

Available Specification :150*100*100(mm),100*100*100(mm)
