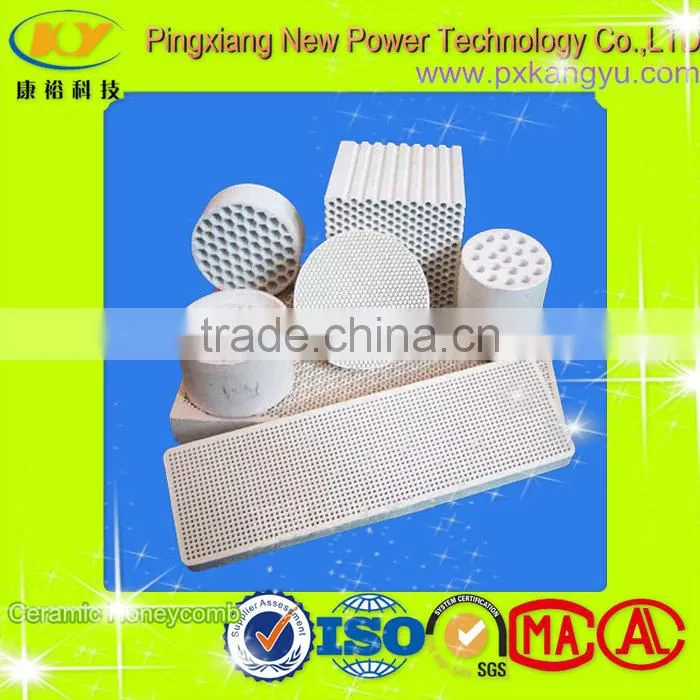

Honeycomb ceramic is a new developed porous industrial ceramic. As heat storage body, it has the properties of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellant thermal-shock resistance performance, realize quickly exchanging heat and reducing energy, widely used in the industrial field. The honeycomb ceramic as the heat exchange media is the key part for heat storaging HTAC ( High Temperature Air Combustion) technology. It is the best choice for RTO, heat exchanger and other environmental protection and energy saving products.
Main Features:
1. A new developed porous industrial ceramic.
2. Large specific surface area, corrosion resistance, small heat resistance, good thermal conductivity, excellant thermal-shock resistance.
3. Thermal energy storage.
4. We can produce the honeycomb ceramic series with different shapes and sizes according to customers’ requirements.
Application: all kinds of pushing-steel heating furnace, RTO ( Regenerative Thermal Oxidation), stepping heating furnace, heat treatment furnace, forging furnace, dissolving furnace, steel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap incendiary apparatus, covering furnace, high temperature hot-blast stove in metallurgical machine building, all kinds of ceramic cellar stove, glass cellar stove in building materials, all kinds of tap heating stove, splitting stove, other industrial stove cellar, etc.
Specifications:
Dimension (mm) |
Hole Number (mm) |
Wall Thickness (mm) |
Specific Surface Area (m2/m3) |
150×150×300 |
25×25 |
1.0 |
573 |
150×150×300 |
32×32 |
0.9 |
785 |
150×150×300 |
40×40 |
0.7 |
883 |
150×150×300 |
43×43 | 0.65 |
1000 |
150×150×300 |
50×50 |
0.7 |
1050 |
150×150×300 |
60×46 |
0.5 |
1316 |
Technical Data:
| Index | Metric Unit |
Value |
Material Density |
g/cm3 | 2.3-2.6 |
| Average Linear Expansion |
10-6/k-1 | <2.5 |
| Special Heat Capacity | KJ/Kg | 900-1200 |
| Heat Conductivity |
W/MK | 1.8-3.0 |
| Max. Application Temp. | °C | 1350 |
| Acid resist strength wt.loss |
% | <4 |
| Water Absorption | % | <5 |
Chemical Composition:
Composition |
Stoneware |
Cordierite |
Mullite Cordierite |
SiO2 |
41~45 |
53.55 |
29~30 |
Al2O3 |
34~37 |
39.65 |
68~69 |
MgO |
5.0~7.0 |
3.4 |
-- |
Fe2O3 |
1.3~1.5 |
0.65 |
0.5~0.7 |
Na2O+K2O+CaO |
1.2~1.4 |
<1 | 0.7~0.9 |
TiO2+BaO |
0.20~0.25 |
1.5 |
-- |
Note: All the data is only for reference, specific specifications, types and materials are according to customers' requirements
We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.
Grace Zhang
Whatsapp/TEL:008613767885030
QQ: 84781705
Skype: yakegrace
Wechat: xz9426
TM: cn1000900349
Q: What is your MOQ?
A: Our product MOQ is 1000kg&1m³
Q: What is the delievery time?
A: It takes aroud 10-15days for one 20" container.
Q: What is the shipping port?
A: Shanghai,Shenzhen,Qingdao.
Q: What is payment terms?
A: T/T,L/C, West Union.
Q: What information should I offer to you if I want to know the price?
A: Appication/usage,Size,Material,Quantity,Package term,Delievery time,Payment term,Destination.
Q: What is your warranty?
A: By National Standard GBT 10504-2008, Offer lifetime consultation on problems occurred.
Why choose products from KANGYU ?
1. Specialize in this field for more than 10 years.
2. More than 1000 workers, Strong ability of production.
3. Shorter delivery time.
4. Rich variety of products:molecular sieve,random and structured chemical packing in ceramic,plastic&metal honeycomb ceramics,inert ceramic balls,activated alumina,alumina grinding balls,expanded perlite,porous ceramic filter pipe and so on.
5. Competitive price,modern appearance.
6. Do any sticker you need(OEM,ODM).
7. Going green and environmental protection:No mercury, No radition, No UV.
8. Honesty is the most important
We Specialized in Manufacturing molecular sieve, random and structured chemical packing in ceramic, plastic & metal, honeycomb ceramics, inert ceramic balls, activated alumina, alumina grinding balls, etc.
We has an annual manufacturing capacity of 5000 ton molecular sieves, 20000 m3 of varieties types of chemical packings, 3000 m3 of honeycomb ceramics and 5000 m3 of inert ceramic balls, 2000 ton activated alumina etc.
Welcome to our factory and negotiate business. We trust we will be your best supplier in China.
