Best Price Honeycomb Monolith Ceramic KY56
- 5000 Cubic Meter / Cubic Meters per Month
- SHANGHAI SHENZHEN
- T/T
Product Details
Place of Origin: | Jiangxi, China | Type: | Ceramic Rollers | Application: | Industrial Ceramic |
Material: | Alumina Ceramic | Model Number: | Best Price Honeycomb Monolith Ceramic | Brand Name: | KANGYU |
Product Description

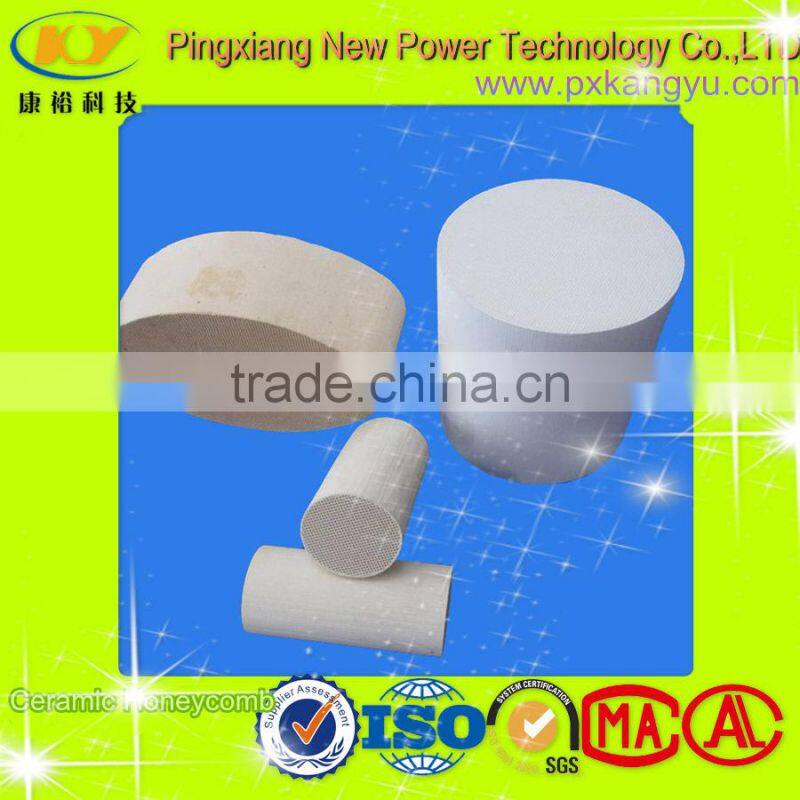

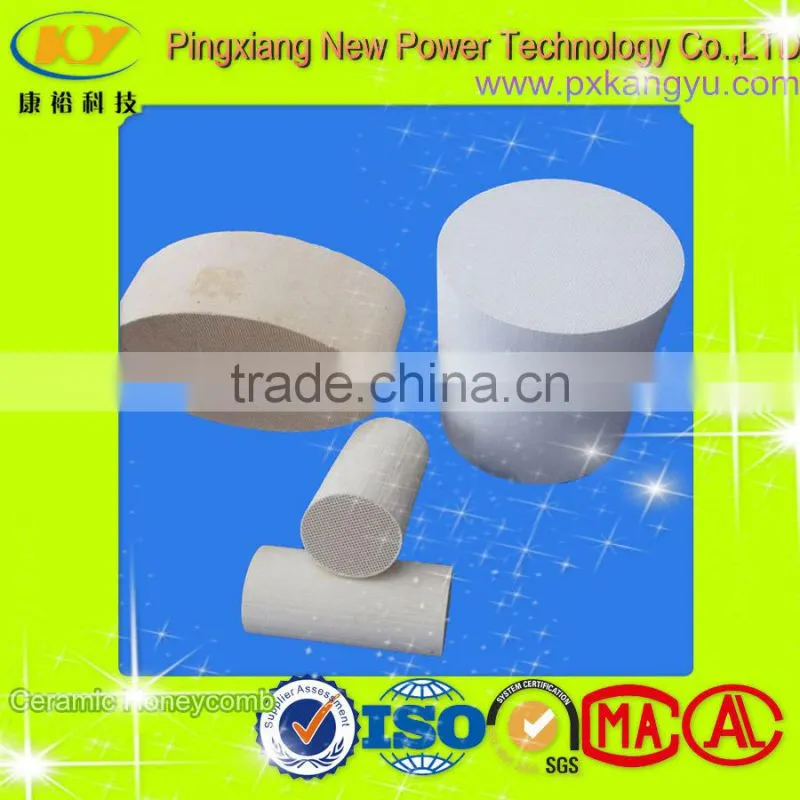

honeycomb monolith ceramic
Introduction
honeycomb monolith ceramic are a new kind of industrial ceramic product developed in recent years. They have a large surface area, higher air vent rate, good heat functions, stable chemical properties etc. At present, ceramic honeycombs are being used to purify industrial waste gas, automobile emissions, eliminate noise, deal with waste water, to dry air, incineration, used in the manufacture of infrared ray instruments, to filter metal liquids etc. All ceramic honeycombs can be produced in conformance with customer requests.
Chemical composition
SiO2 | Al2O3 | MgO | Fe2O3 | Na2O | K2O |
<72% | >18% | 0.18-0.45% | <1% | <1% | 2.7-4.5% |
Physical properties
Index | Value |
Gross density(g/cm3) | 2.3-2.45 |
Thermal volume(KJ/Kg. °C) | 800-900 |
Thermal shock resistance(°C) | >300 |
Max operation Temp.(°C) | 1100 |
Acid resistance(%) | >99 |
Alkali resistance(%) | >85 |
Water absorption(Wt%) | <0.5% |
Technical data
Spec. | Quantity of channels | Wall thickness (mm) | Surface area (m2/m3) | Free volume (%) | Packaging density (kg/m3) | Weight per piece (kg) |
150*150*150 | 60*60 | 0.5 | 1315 | 70 | 910 | 3.07 |
150*150*150 | 50*50 | 0.7 | 1050 | 58 | 920 | 3.11 |
150*150*150 | 40*40 | 0.7 | 883 | 65 | 908 | 3.07 |
150*150*150 | 25*25 | 1.0 | 573 | 67 | 730 | 4.93 |
Application
Used in heat storing HTAC to exchange gas and store heat
Heat storing honeycomb carrier is also called high temperature incendiary heat storing carrier. It is the key and core part of heat storing HTAC. It has been widely used to all kinds of pushing-steel heating furnace, stepping heating furnace, heat treatment furnace, forging furnace, dissolving furnace, steel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap incendiary apparatus, covering furnace, high temperature hot-blast stove in metallurgical machine building and all kinds of ceramic cellar stove, glass cellar stove in building materials, and all kinds of tap heating stove, splitting stove, other industrial stove cellar, too.
Heat storing HTAC is a new concept incendiary technology. It combines organically recover smoking gas and remaining heat with efficiently burning and reducing discharging Nox, so it can get the double aims of saving energy ultimately and reducing discharging Nox ultimately. The technology characters as follow:
Smoking gas and remaining heat recovering device is adopted to replace and exchange smoking gas, air and coal gas, so while they pass the heat storing, they can recover ultimately physical heat in high temperature smoking gas and save energy (normally 10%~70%)and improve the efficiency of heat apparatus, and reduce replacing of CO2 (10%~70%).
By expanding the area of flame burning (almost to the edge of stove) by poor oxygen burning, it can make the temperature in stove even, so Nox in smoking gas reduced above 40%.
Because the average temperature in stove is raised and heat conduction is improved, heat apparatus in the same size can improve output above 20% and reduce the cost of apparatus.
Low calorific value fuel can get high stove temperature with high temperature preheats gas or high temperature preheats gas, so it has expanded the low calorific value fuel use range.
We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.
Grace Zhang
Whatsapp/TEL:008613767885030
QQ: 84781705
Skype: yakegrace
Wechat: xz9426
TM: cn1000900349
Q: What is your MOQ?
A: Our product MOQ is 1000kg&1m³
Q: What is the delievery time?
A: It takes aroud 10-15days for one 20" container.
Q: What is the shipping port?
A: Shanghai,Shenzhen,Qingdao.
Q: What is payment terms?
A: T/T,L/C, West Union.
Q: What information should I offer to you if I want to know the price?
A: Appication/usage,Size,Material,Quantity,Package term,Delievery time,Payment term,Destination.
Q: What is your warranty?
A: By National Standard GBT 10504-2008, Offer lifetime consultation on problems occurred.
Why choose products from KANGYU ?
1. Specialize in this field for more than 10 years.
2. More than 1000 workers, Strong ability of production.
3. Shorter delivery time.
4. Rich variety of products:molecular sieve,random and structured chemical packing in ceramic,plastic&metal honeycomb ceramics,inert ceramic balls,activated alumina,alumina grinding balls,expanded perlite,porous ceramic filter pipe and so on.
5. Competitive price,modern appearance.
6. Do any sticker you need(OEM,ODM).
7. Going green and environmental protection:No mercury, No radition, No UV.
8. Honesty is the most important
We Specialized in Manufacturing molecular sieve, random and structured chemical packing in ceramic, plastic & metal, honeycomb ceramics, inert ceramic balls, activated alumina, alumina grinding balls, etc.
We has an annual manufacturing capacity of 5000 ton molecular sieves, 20000 m3 of varieties types of chemical packings, 3000 m3 of honeycomb ceramics and 5000 m3 of inert ceramic balls, 2000 ton activated alumina etc.
Welcome to our factory and negotiate business. We trust we will be your best supplier in China.
