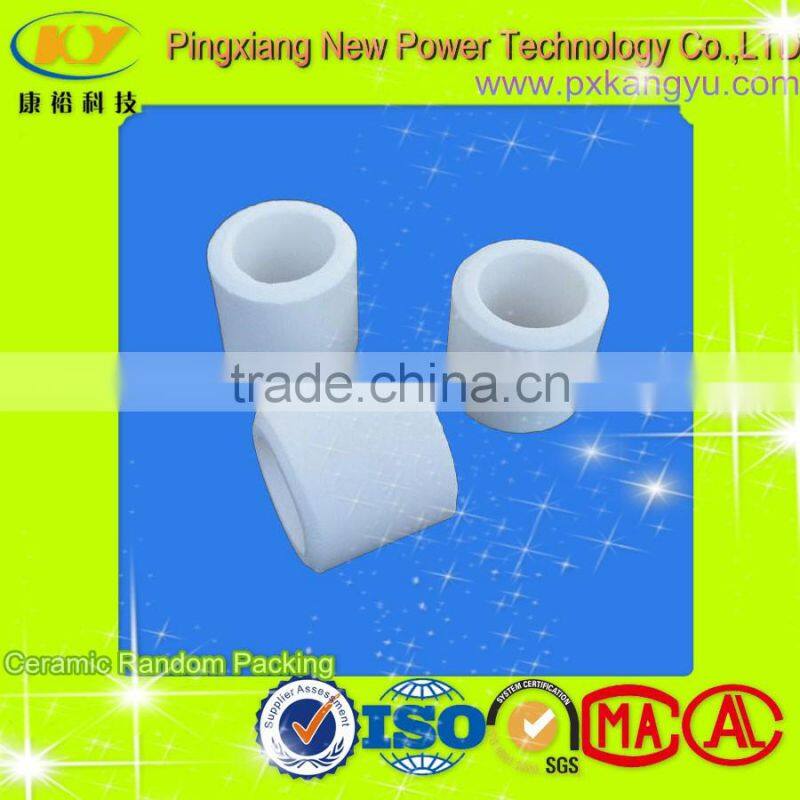

Ceramic Rasching Ring

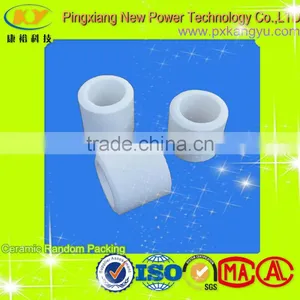

Ceramic Rasching Ring thumbnail-1
Ceramic Rasching Ring photo-1
US$ 300 - 1,999 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Type:
Ceramic Rings
Application:
Industrial Ceramic
Contact Supplier Request Quote Chat Now
Pingxiang Kangyu New Power Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai/shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Type Ceramic Rings
Application Industrial Ceramic
Material Alumina Ceramic
Model Number rasching ring
Brand Name Kangyu

Ceramic Rasching RingCeramic Rasching Ring



Ceramic raschig ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.





Technical data

Spec.

D*H*T (mm)

Surface area (m²/m³)

Free volume (%)

Number per m³

Bulk density (Kg/m³)

Dry Packing Factor(m-1)

Ø 15

15*15*2

330

70

250000

690

960

Ø 16

16*16*2

305

73

192500

730

784

Ø 25

25*25*2.5

190

78

49000

505

400

Ø 40

40*40*5

126

75

12700

577

305

Ø 50

50*50*5

93

81

6000

457

177

Ø 80

80*80*9.5

90

68

1910

714

234

Ø 100

100*100*10

70

70

1000

700

172

Ø 150

150*150*15

50

68

295

790

142





Chemical composition

SiO2

Al2O3

Fe2O3

CaO

K2O+Na2O

>70%

23-30%

<1%

<1-2%

<2-4%



 Physical properties

Index

Value

Specific gravity(g/cm3)

2.25-2.35

Water absorption(%)

<0.5

Acid-resisting strength, %Wt. Loss (ASTMc279)

<4

Firing temperature(Degree C)

1280-1320

Softening point( Degree C)

>1400

Density(kg/m3)

2350



Contact Us

We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.



Grace Zhang



Whatsapp/TEL:008613767885030

 QQ: 84781705

Skype: yakegrace

Wechat: xz9426

TM: cn1000900349





Our Services

Q: What is your MOQ?

A:  Our product MOQ is 1000kg&1m³



Q:  What is the delievery time?

A:   It takes aroud 10-15days for one 20" container.



Q:  What is the shipping port?

A:  Shanghai,Shenzhen,Qingdao.



Q:  What is payment terms?

A:  T/T,L/C, West Union.



Q: What information should I offer to you if I want to know the price?

A: Appication/usage,Size,Material,Quantity,Package term,Delievery time,Payment term,Destination.



Q: What is your warranty?

A: By National Standard GBT 10504-2008, Offer lifetime consultation on problems occurred.

FAQ

Why choose products from KANGYU ?

1.   Specialize in this field for more than 10  years.

2.   More than 1000 workers, Strong ability of production.

3.   Shorter delivery time.

4.   Rich variety of products:molecular sieve,random and structured chemical packing in ceramic,plastic&metal honeycomb ceramics,inert ceramic balls,activated alumina,alumina grinding balls,expanded perlite,porous ceramic filter pipe and so on.

5.   Competitive price,modern  appearance.

6.   Do any sticker you need(OEM,ODM).

7.   Going green and environmental protection:No mercury, No radition, No UV.

8. Honesty is the most important

Company Information

We Specialized in Manufacturing  molecular sieve, random and structured chemical packing in ceramic, plastic & metal, honeycomb ceramics, inert ceramic balls, activated alumina, alumina grinding balls, etc.



We has an annual manufacturing capacity of 5000 ton molecular sieves, 20000 m3 of varieties types of chemical packings, 3000 m3 of honeycomb ceramics and 5000 m3 of inert ceramic balls, 2000 ton activated alumina etc.



Welcome to our factory and negotiate business. We trust we will be your best supplier in China.





Ceramic Rasching Ring



Ceramic Rasching Ring



Ceramic Rasching Ring

Certifications

Ceramic Rasching Ring
