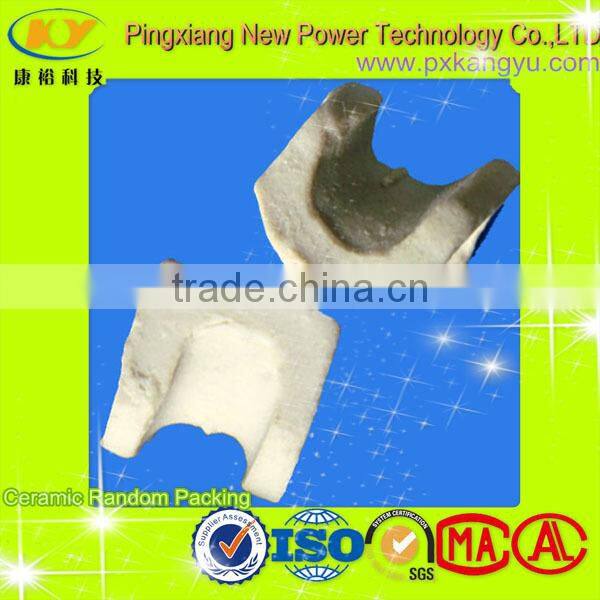

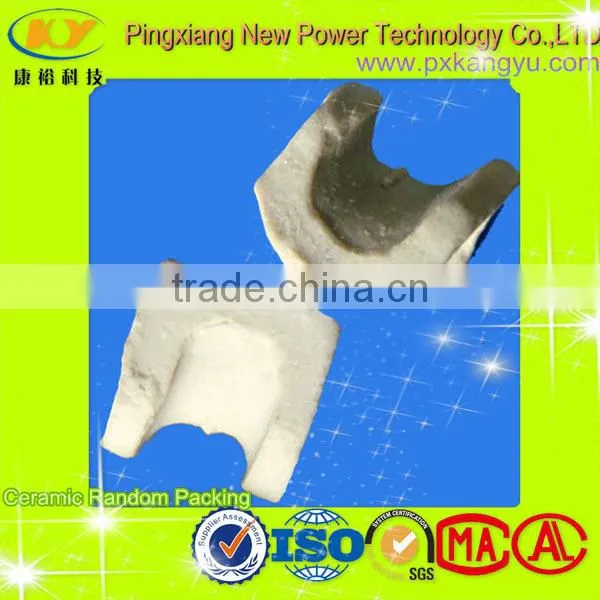

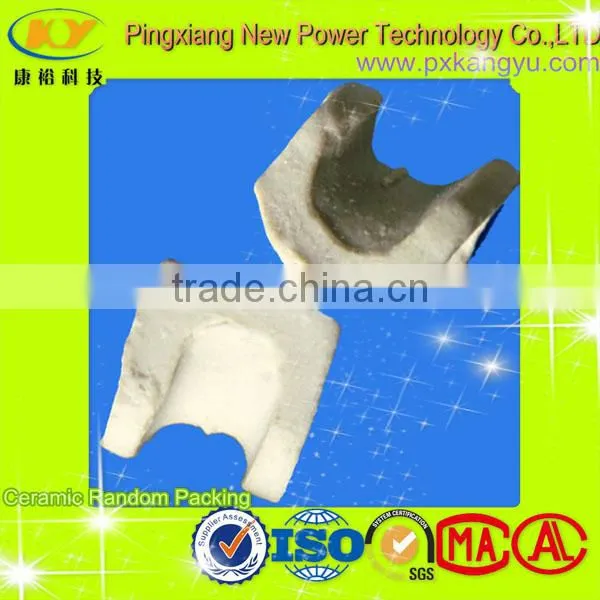

Ceramic Berl Saddles Packing

Ceramic Berl Saddles Packing thumbnail-1
Ceramic Berl Saddles Packing photo-1
US$ 0.12 - 5 MOQ: 1 Cubic Meter
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Type:
Ceramic Rings
Application:
Industrial Ceramic
Contact Supplier Request Quote Chat Now
Pingxiang Kangyu New Power Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Type Ceramic Rings
Application Industrial Ceramic
Material Alumina Ceramic
Model Number Ceramic Berl Saddles Packing
Brand Name KANGYU

 Ceramic Berl Saddles Packing

Ceramic Berl Saddles Packing

Ceramic packing has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.KANGYU ceramic tower packing include ceramic  , ceramic Cross-Partition ring, ceramic Pall ring, ceramic Cascade Mini ring, ceramic Saddle, ceramic Saddle RTO, ceramic Super Saddle, etc

Chemical composition

SiO2

Al2O3

SiO2+Al2O3

Fe2O3

CaO

MgO

K2O+Na2O

Other

>69%

15-23%

>92%

<1%

<0.25%

<0.2%

2-4%

<1%

 Physical properties

Index

Value

Porosity(Vol%)

1

Specific heat(KJ/Kg)

840-900

Crush strength(N/mm2)

390-420

Specific gravity(g/cm3)

2.3-2.45

Acid resistance(%)

99.98

Firing temperature(℃)

1280 – 1320

Softening temperature(℃)

>1400

Density(Kg/m3)

2300 – 2400

Water absorption(%)

<0.2

Thermal expansion(10-6mm/mm℃)

4.7

Moh’s hardness(Scale)

7 – 8

Comprehensive strength(Newtons)

5600

Shock strength(Kgf.cm/cm2)

1.0 – 1.5

 Ceramic Rasching Ring

Spec.

D*H*T (mm)

Surface area (m²/m³)

Free volume (%)

Number per m³

Bulk density (Kg/m³)

Dry Packing Factor(m-1)

Ø 6

6*6*2

789

73

3110000

737

2030

Ø 10

10*10*2

440

70

720000

700

1280

Ø 15

15*15*2

330

70

250000

690

960

Ø 16

16*16*2

305

73

192500

730

784

Ø 25

25*25*2.5

190

78

49000

505

400

Ø 40

40*40*5

126

75

12700

577

305

Ø 50

50*50*5

93

81

6000

457

177

Ø 80

80*80*9.5

90

68

1910

714

234

Ø 100

100*100*10

70

70

1000

700

172

Ø 150

150*150*15

50

68

295

790

142

 Ceramic Cross-Partition Ring

Spec.

D*H*T(mm)

Surface area (m²/m³)

Free volume (%)

Number per m³

Bulk density (Kg/m³)

Dry Packing Factor (m-1)

Ø 50

50*40*50*5

145

50

6400

600

565

Ø 80

80*64*80*8

120

56

1950

820

356

Ø100

100*80*100*10

110

53

1000

850

252

Ø120

120*96*120*12

75

55

370

860

146

Ø150

150*120*150*15

60

58

295

980

101

 Ceramic Pall Ring

Spec.

D*H*T(mm)

Surface area (m²/m³)

Free volume (%)

Number per m³

Bulk density (Kg/m³)

Dry Packing Factor(m-1)

Ø 25

25*25*3

220

73

54000

620

565

Ø 38

38*38*4

150

75

13400

570

356

Ø 50

50*50*5

120

78

6800

550

252

Ø 80

80*80*8

75

80

1950

520

146

 Ceramic super saddle Ring

Nominal Size

Approx.Weight

Surface Area

Void Fraction (%)

Dry Packing factor (m-1)

inch

mm

lb/ft3

Kg/m3

ft2/ft3

m2/m3

1"

25mm

40

645

79.5

260

77

570

1.5"

38mm

37.5

600

64

210

78

430

2"

50mm

35.6

570

42.8

140

79

277

3"

76mm

36

580

32

105

77

206

 Ceramic Cascade-Mini Ring

Spec.

D*H*T (mm)

Surface area (m²/m³)

Free volume (%)

Number per m³

Bulk density (Kg/m³)

Dry Packing Factor(m-1)

Ø 25

25*20*3

270

74

74000

624

172

Ø 50

50*30*5

108.8

78.7

9091

516

223

Ø 76

76*45*7

63.4

79.5

2517

426

126

 Ceramic Intalox Saddle Ring

Spec. D*H*T (mm) Surface area (m²/m³) Free volume (%) Number ( m³) Bulk density (Kg/m³) Dry Packing Factor(m-1)
Ø 16 16*12*2 378 71 269900 686 1055
Ø 25 25*19*3 200 72.7 58230 602 434
Ø 38 38*30*4 131 74.1 17250 570 252
Ø 50 50*40*5 105 76.5 7384 520 252
Ø 76 76*57*8 76 78 2400 507 213

 Ceramic Conjugate Ring

Spec. D*H*T (mm) Surface area (m²/m³) Free volume (%) Number ( m³) Bulk density (Kg/m³) Dry Packing Factor(m-1)
Ø 25 25*25*3 175 79.5 64000 520 369
Ø 38 38*38*4 118 78 14000 470 230
Ø 50 50*50*5 72 80 6300 450 135

Ceramic TRI-Y Ring

Spec. D*H*T (mm) Surface area (m²/m³) Free volume (%) Number ( m³) Bulk density (Kg/m³) Dry Packing Factor(m-1)
Ø 25 25*13*2 240 74 87000 760 390
Ø 38 38*20*3 160 75 27600 740 260
Ø 50 50*30*4 1038 75 10100 745 233
Ø 80 80*50*8 90 70 1910 710 262

 (We can also be designed and manufactured to meet the need of specific applications.)Ceramic Berl Saddles Packing



Ceramic Berl Saddles Packing

Ceramic Berl Saddles Packing



 Ceramic Berl Saddles Packing
