External Thermal Insulation 100mm Thickness Wholesale Rockwool Insulation With 1200*600mm
US$ 37.51 - 55
MOQ: 1800 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ABM
Model Number:
FRB03
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100% Non-asbestos Fireproof 50mm Thickness Roof Rockwool Insulation for Floor Thermal InsulationUS$ 68 - 128MOQ: 70 Cubic Meters -
Waterproof Rockwool 50mm Board for Dray Hanging Curtain Wall Thermal Insulation SystemUS$ 37.51 - 55MOQ: 1800 Pieces
-
Fireproof Density 100kg/m3 Wire Mesh Rockwool Blanket With Singlr Aluminum FoilUS$ 60 - 120MOQ: 30 Cubic Meters
-
Fireproof Class A Thermal Insulation Density 80kg/m3 Rockwool With Aluminum FoilUS$ 12 - 20MOQ: 1800 Pieces
-
Yellow Color Density 50kg/m3 Fireproof Rockwool Insulation Blanket Price With Single Aluminum FoilUS$ 35 - 55MOQ: 1800 Rolls
Place of Origin
Shanghai, China
Brand Name
ABM
Model Number
FRB03
Item name: Rockwool board
Product Description
ABM® External Thermal Insulation Board(FRB series)is designed for external thermal insulation composite system and dry-hanging curtain wall thermal insulation system as a fire proof insulation material.
With high compressive and tensile strength,excellent hydrophobic and moisture proof property.When a fire breaks out, the product's class-A non-combustibulity and good anti-high temperature shrink ability can maintain the stabiliy of the system structure.
External Thermal Insulation 100mm Thickness Wholesale Rockwool Insulation with 1200*600mm
Standard Specification
| Product Type | FRB 75 | FRB 100 | FRB 150 |
| Nominal Density,kg/m³ | ≥140 | ≥140 | ≥150 |
| Size(L*w),mm | 1200*600 | ||
| Thickness,mm | 40~120 | ||
Main Properties and Technical Data
| Properties | FRB 75 | FRB 100 | FRB 150 | Unit | Standard |
| Compressive Strength(10% deformation) | ≥40 | ≥50 | ≥50 | kPa | GB/T 13480 |
| Tensile Strengh (perpendicular tu sur face ) | ≥7.5 | ≥10 | ≥15 | kPa | JG 149-2003 Annex D |
| Thermal Conductivity(25°C) | ≤0.039 | ≤0.039 | ≤0.039 | W/(m.k) | GB/T 10295 |
| Reaction to Fire | Class A | Class A | Class A | GB/T 8624-1997 | |
| Acidity Coeffcient | ≥1.8 | ≥ 1.8 | ≥ 1.8 | GB/T 5480 | |
| Water Repellence | ≥99 | ≥ 99 | ≥ 99 | % | GB/T 10299 |
| Water Vapor Absorption | ≤1.0 | ≤ 1.0 | ≤ 1.0 | wt % | GB/T 5480 |
| Short-term Water Absorption(partial immersion,24h) | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | kg/m² | GB/T 25975-2010 Annex B |
| Long-term Water Absorption(partial immersion,28d) | ≤2.0 | ≤ 2.0 | ≤ 2.0 | kg/m² | GB/T 25975-2010 Annex B |
| Noise Reduction Coeffcient(NRC) | ≥0.6 | ≥ 0.6 | ≥ 0.6 | ---- | GB/T 18696.1 |
| Dinebsuibak Stability | ≤1.0 | ≤1.0 | ≤1.0 | % | GB/T 8811 |
| Melting Temperature | ≥1000 | ≥1000 | ≥1000 | °C | |
| Thickness Deviation | ±3 | ±3 | ±3 | mm | GB/T 5480 |
| Squareness | ≤5 | ≤5 | ≤5 | mm/m | GB/T 5480 |
| Flatness | ≤5 | ≤5 | ≤5 | mm | GB/T 25975-2010 Annex A |

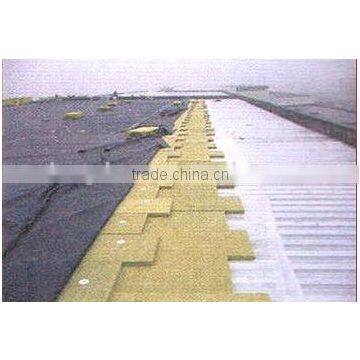

Rockwool board can be applied on all kinds of solid wall substrate such as masonry and concrete,and both suitable for new/expansion project and retrofitting project of existing buildings.
| Packing | plastic bag or other packing way offered |
| Loading | 20feet container ,40feet container ,40HQ container |
| Sample Policy | sample offered in 1-3 days |
| Service | phone, rademanger ,email and fax are available ,welcome visit us |
