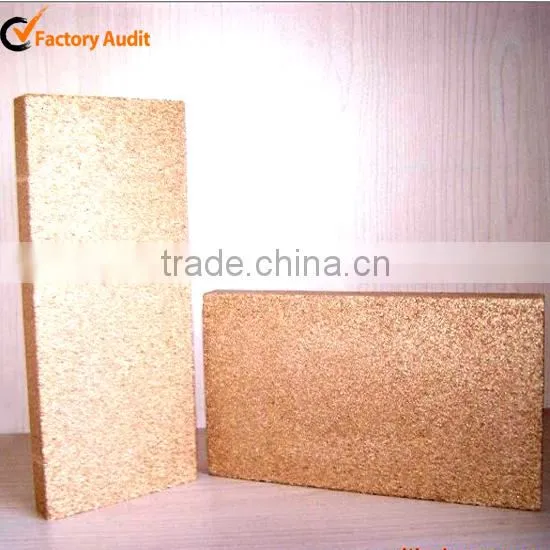

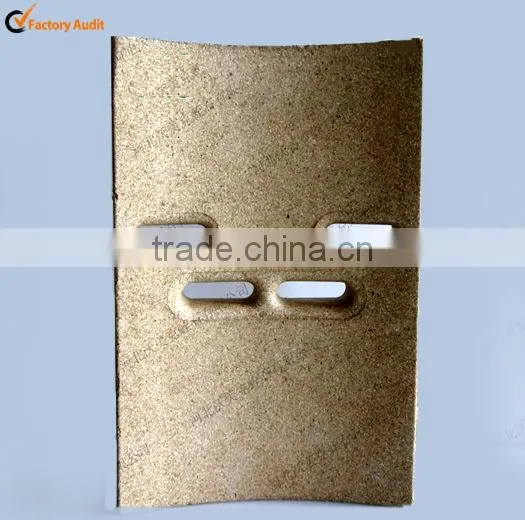

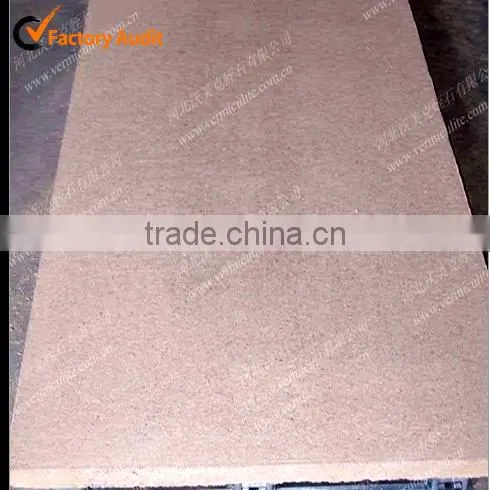

Xinjiang Silver Vermiculite Board
- 50200 Piece / Pieces per Month
- Xingang Tianjin
- T/T Credit Card PayPal
- Terranflex® TG Composite Elastomeric Thermal Insulation
- Durkflex® BM Composite Elastomeric Thermal Insulation
- Insulation pad WH8-750-026 for Bangladesh Power Plant factory in China
- Durkflex® BP Composite Elastomeric Thermal Insulation
- Durkflex® BT Composite Elastomeric Thermal Insulation
- Durkflex® FC Elastomeric Thermal Insulation In Petrochemical Field
Product Details
Place of Origin: | Hebei, China | Brand Name: | KDH | Model Number: | kdh06297 |
Product Description
1.Main Applications:
Main Application Fields: |
1. Fire door |

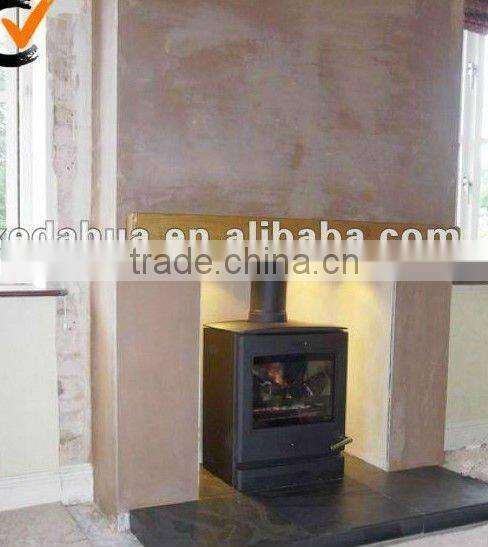

2. Fireplace |
3. Heat accumulating electric heater |
4. Vermiculite board ceiling |
5. Diatom ooze |
6. Negative oxide ion vermiculite products |

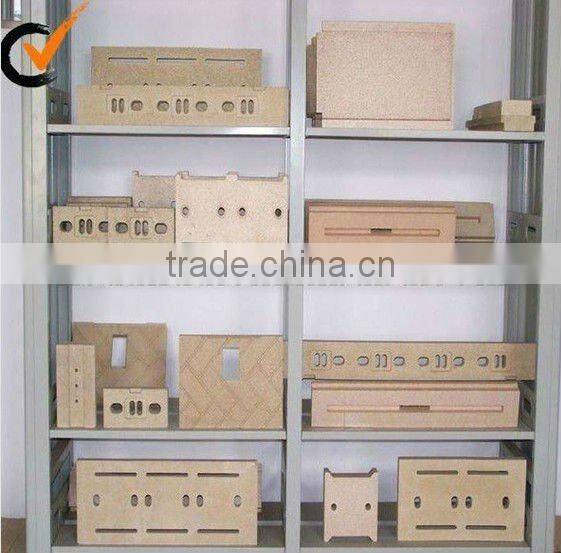

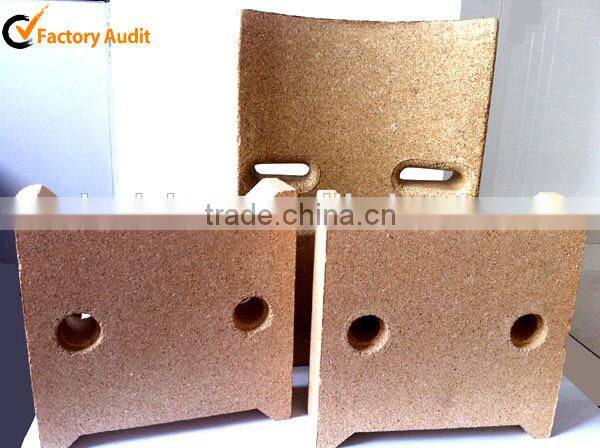

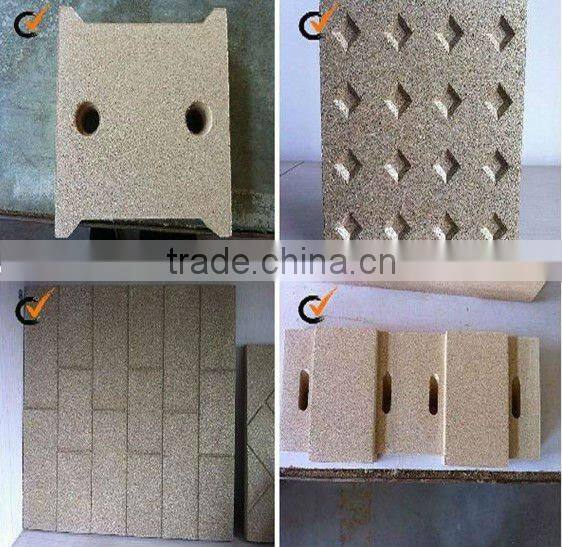

7. Unusual shape material |
2. Chemical Properties
Chemical Analysis(%) | |
Silica | 44.60% |
Alumina (Al2O3) | 19.80% |
Ferric Oxide (Fe2O3) | 5.20% |
Titanium Dioxide (TiO2) | 0.50% |
Magnesium Oxide (MgO) | 24.22% |
Calcium Oxide (CaO) | 3.90% |
Potassium Oxide (K2O) | 9.10% |
Else | 2.90% |
Loss on Ignition@1000°C | 6.5 |
3. Physical Properties
Pysical Properties | |||||||||
Bulk Density(kg/m³) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
Maximum Service Temperature(°C) | 1100 | 1100 | 1100 | 1100 | 1200 | 1200 | 1200 | 1200 | 1200 |
Cold Crushing Strength(Mpa) | 1.5 | 2.5 | 3.5 | 4.6 | 6.0 | 6.5 | 7.5 | 8.5 | 10.5 |
Hot Crushing Strength(Mpa) @750℃ | 1.0 | 2.0 | 2.5 | 3.5 | 4.5 | 5.0 | 5.5 | 6.0 | 6.5 |
Modulus of Rupture(Mpa) | 0.5 | 0.8 | 1.6 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 5.0 |
Apparent Porosity | 83% | 80% | 75% | 73% | 70% | 67% | 63% | 58 | 55% |
Thermal Conductivity(W/mk) @600°C |
0.094 0.153 |
0.127 0.178 |
0.181 |
0.181 |
0.197 |
0.23 0.28 |
0.23 0.28 0.30 |
0.24 0.27 0.28 0.30 |
0.26 0.28 0.30 0.31 |

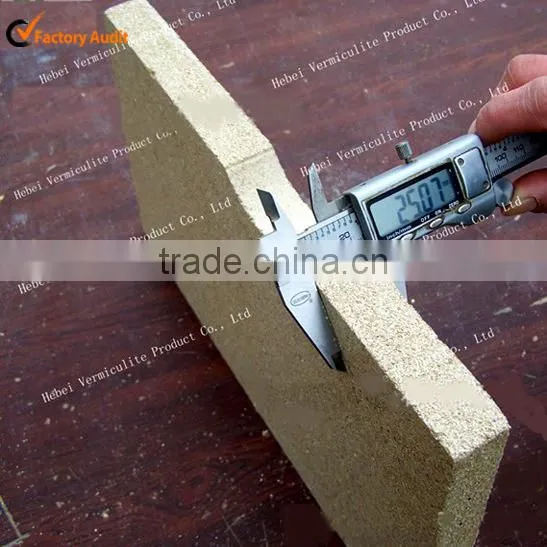

5. Specifications
Standard Size&Thickness | |||||
Length&Width | Thickness | ||||
1000×610mm | 20-50mm | ||||
2100×900mm | 20-50mm | ||||
2440×1220mm | 20-50mm | ||||
Dimensional Tolerances | |||||
0-10mm | 10-120mm | 120-400mm | 400-600mm | 600-1500mm | 1500-2500mm |
±0.5 | ±1.0 | ±1.5 | ±2.0 | ±2.5 | ±3.0 |
6.Superior functions:
- A1 Grade non-combustible fire rating.
- Excellent fireproof character.
- Heat insulation and preservation.
- Sound insulating and absorbing.
- Moisture adjustment.
- Eco-friendly, non-toxic and zero radioactivity, non-asbestos .
- Excellent workability.

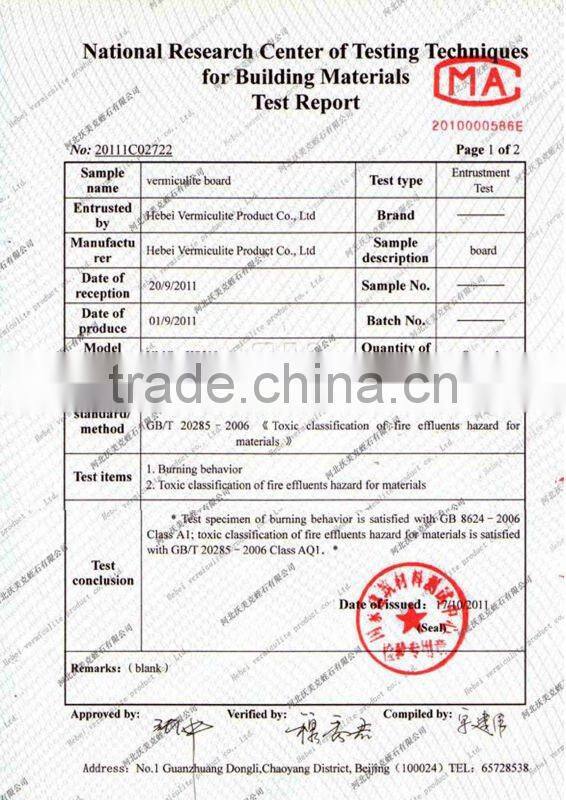

Fireproof Test Report:
Alibaba Certificate:
