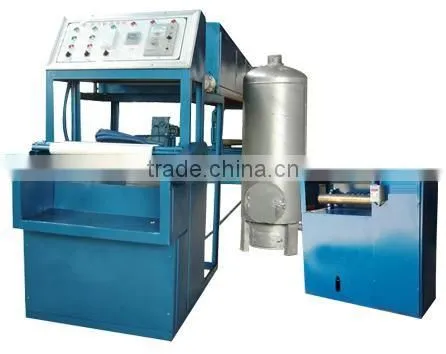

Full Automatic Double Color bopp Adhesive Tape Printing Machine /adhesive tape machine
Specification:
The device uses advanced electronic temperature control,stepless variable speed,automatic
counting, automatic correction, gravure printing, advanced infrared heating, cooling and other
high-tech re-pressed . Set of discharge , printing , coating , drying , hot air circulation, traction,
slitting, rewinding the completion of one machine and other production processes.
Regulating speed:
The use of advanced continuously variable motor can continue to arbitrarily adjust the level of
working speed.
Temperature Control:
This machine adopts advanced electronic temperature control,temperature and automatically
adjust the level of automation really.
Correct the deviation:
This machine adopts the foreign advanced technology , installation of automatic correction of
high - sensitivity infrared equipment and high - sensitivity probe with the local production of
products sufficient to ensure no waste and tidy corner

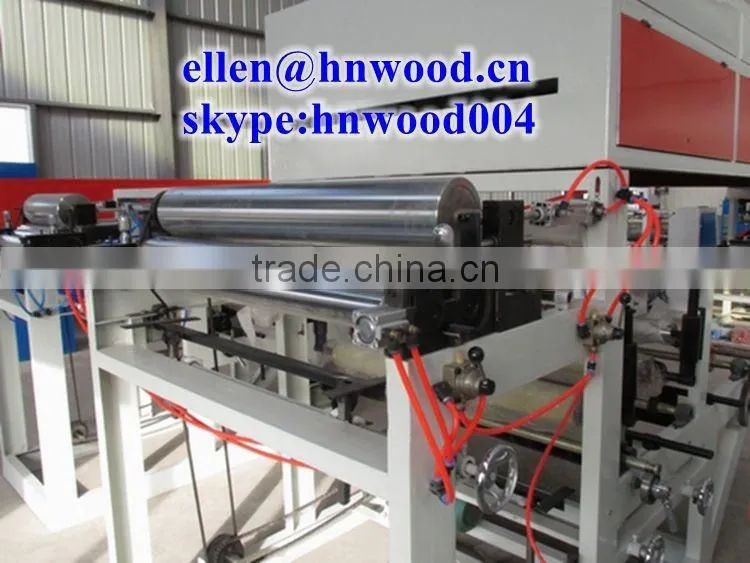

Print :
The machine comes with two - color gravure printing cylinder , printing the same width as the
width of coating substrates.
Drying :
Using the latest steam heating . Sub - heated hot air circulation temperature uniformity ,
temperature, liquid crystal digital display, disable kilowatt hour.

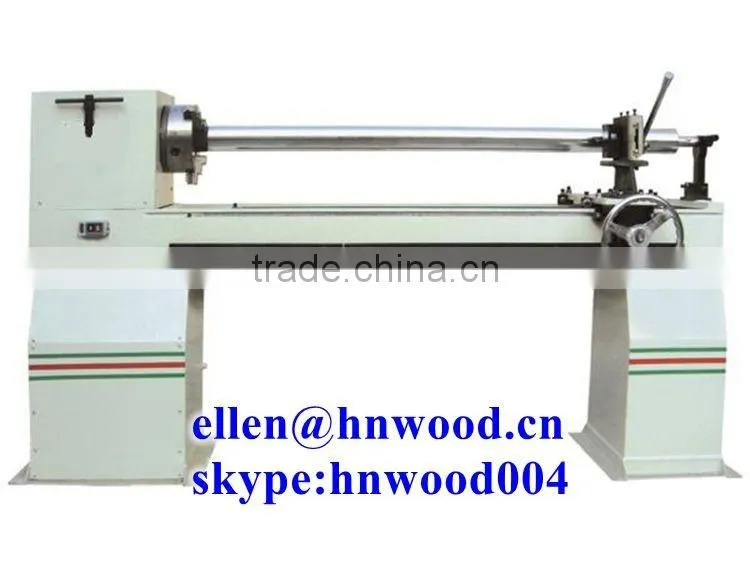

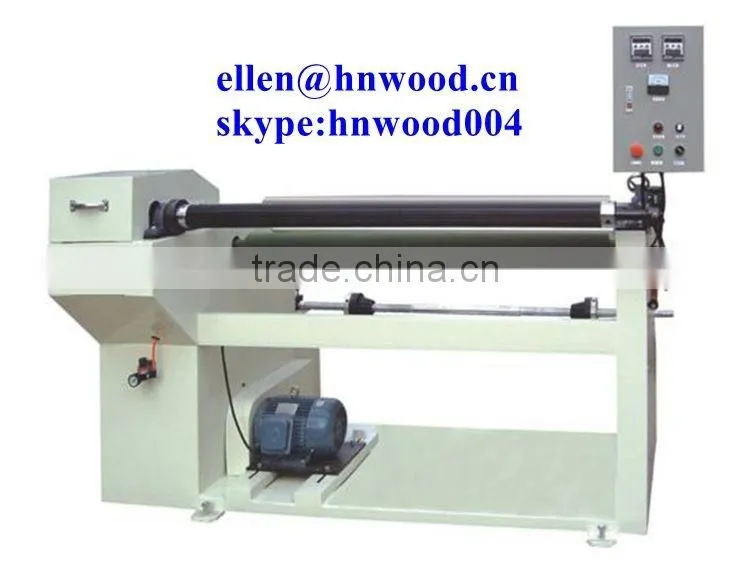

Cutting :
The machine comes with feature does not require reprovision Slitter Slitting , cut width can be
arbitrarily adjusted tension control cutting length of the automatic counting arbitrary length,and
automatically shutdown really achieve streamlined automatic production.
WD-500
Steam heating
Electrical heating |
Model |
Voltage(v) |
Power(kw) |
L*W*H(m) |
WD500*5500 |
380 |
5.0 |
5.5*0.9*1.95 |
WD500*7500 |
380 |
8.0 |
7.5*0.9*1.95 |
WD500*9500 |
380 |
10.1 |
9.5*0.9*1.95 |
WD500*11500 |
380 |
12.1 |
11.5*0.9*1.95 |
WD-1000
Model |
Voltage (v) |
Power (kw) |
L*W*H (m) |
Heating type |
WD1000*5500 |
380 |
8.1 |
5.5*1.3*1.95 |
Electrical or steam |
WD1000*6500 |
380 |
10.1 |
6.5*1.3*1.95 |
|
WD1000*7500 |
380 |
12.1 |
7.5*1.3*1.95 |
|
WD1000*9500 |
380 |
16.1 |
9.5*1.3*1.95 |
|
WD1000*11500 |
380 |
19.1 |
11.5*1.3*1.95 |
Any need ,contact me please !
